Intel D102GGC2 Mainboard + Blende D42789-204 Sockel 775 PCIe x16 SATA VGA* m189

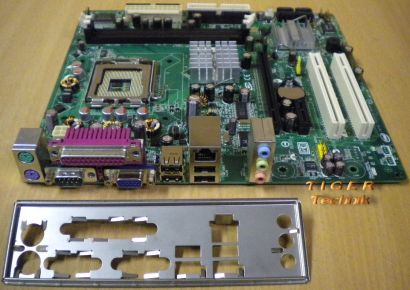

Intel D102GGC2 Mainboard + Blende

D42789-204 Sockel 775 PCIe x16 SATA VGA

Technische Daten

Form Factor

microATX 9.60 inches x 8.60 inches (243.84 mm x 218.44 mm)

Processor Support for the following:

Intel® Pentium® D processor in an LGA775 socket with an 800 or 533 MHz system bus

Intel® Pentium® 4 processor in an LGA775 socket with an 800 or 533 MHz system bus

Intel® Celeron® D processor in an LGA775 socket with a 533 MHz system bus

Memory

Two 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets

Support for DDR2 533 MHz and DDR2 400 MHz DIMMs

Support for up to 2 GB of system memory

Chipset

ATI Radeon* Xpress 200 Northbridge

ATI IXP 450 Southbridge

4 Mbit Firmware Hub (FWH)

Video

ATI Radeon X300 integrated graphics

Audio

High Definition Audio subsystem using the Realtek ALC883 audio codec

Legacy I/O Control

SMSC SCH5017 Legacy I/O controller for hardware management, diskette drive, serial, parallel, and PS/2 ports

USB

Support for USB 2.0 devices

Peripheral Interfaces

Eight USB ports

One serial port

One parallel port

Four Serial ATA interfaces

Two Parallel ATA IDE interfaces with UDMA 33, ATA-66/100 support

One diskette drive interface

PS/2 keyboard and mouse ports

LAN Support

10/100 Mbits/sec LAN subsystem using the Realtek 8101L LAN adapter device

BIOS

Intel® BIOS resident in the 4 Mbit FWH

Expansion Capabilities

Two PCI Conventional* bus connectors

One PCI Express* x1 bus add-in card connector

One PCI Express x16 bus add-in card connector

Instantly Available PC Technology

Support for PCI Local Bus Specification Revision 2.2

Support for PCI Express Revision 1.0a

Suspend to RAM support

Wake on PCI, RS-232, front panel, PS/2 devices, and USB ports

Hardware Monitor Subsystem (controlled by SMSC SCH5017 I/O controller)

Voltage sense to detect out of range power supply voltages

Thermal sense to detect out of range thermal values

Three fan connectors

Three fan sense inputs used to monitor fan activity

Fan speed control

SATA RAID

Support for RAID 0 (data striping) and RAID 1 (data mirroring) on the SATA ports

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
