Intel D945GCZ D945PAW Mainboard Sockel 775 PCIe x16 SATA DDR2 Audio VGA LAN*m470

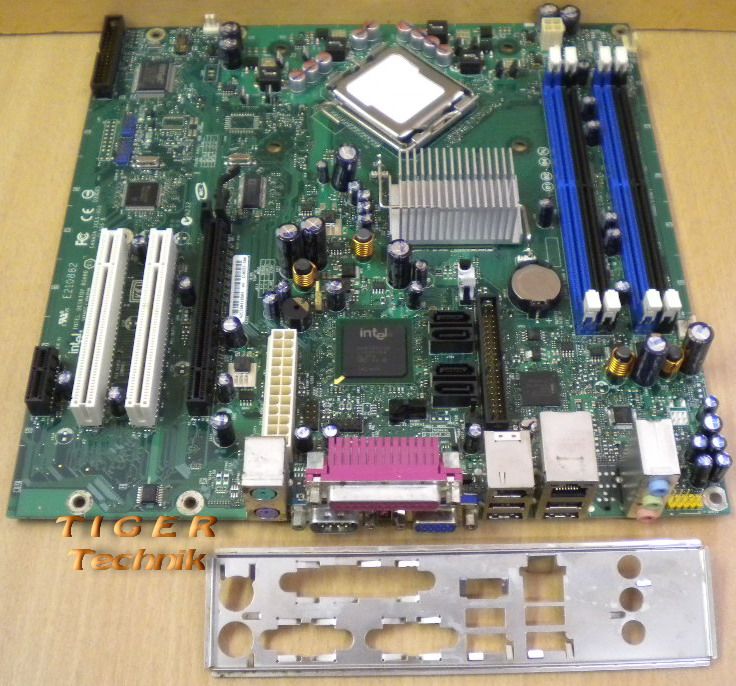

Intel D945GCZ D945PAW Mainboard mit Blende

D10253-500

Technische Daten

Form Factors

MicroBTX (10.4-inches x 10.5-inches)

Processor

Support for an Intel® processor in the LGA775 package

Main Memory

•Four 240-pin, 1.8 V SDRAM Dual Inline Memory Module (DIMM) sockets

•667/533/400 MHz single or dual channel DDR2 SDRAM interface

•Designed to support up to 4 GB of system memory

NOTE:

System resources (such as PCI and PCI Express*) require physical memory address locations that reduce available memory addresses above 3 GB.  This may result in less than 4 GB of memory being available to the operating system and applications.  For the latest list of tested memory, refer to the Intel World Wide Web site at:

http://support.intel.com/support/motherboards/desktop/

Chipset

Intel® 945G Express Chipset consisting of:

•Intel® 82945G Graphics and Memory Controller Hub (GMCH) with Direct Media Interface

•Intel® 82801GB I/O Controller Hub (ICH7) or Intel® 82801GR I/O Controller Hub (ICH7R) supporting Intel® Matrix Storage Technology

•Firmware Hub (FWH)

Graphics

Intel 945G Express Chipset with Intel® Graphics Media Accelerator 950

Audio

•Intel 945G Express Chipset

•Intel® High Definition Audio interface

•SigmaTel* codec

Expansion Capabilities

•Two PCI bus add-in card connectors (SMBus routed to PCI bus 2)

•One PCI Express* x16 connector

•One PCI Express x1 connector

Peripheral Interfaces

•Up to eight USB 2.0 ports

⎯Four ports routed to the back panel

⎯Four ports routed to two USB headers

•Four Serial ATA (SATA) channels (3.0 Gb/s), via the ICH7 or ICH7R, one device per channel

•One IDE interface with ATA-66/100 support (two devices)

•One VGA connector

•One diskette drive interface

•One parallel port

•One serial port

•PS/2* keyboard and mouse ports

BIOS

•Intel® Platform Innovation Framework for extensible firmware interface

•4 Mbit symmetrical flash memory

•Support for SMBIOS

•Intel® Rapid BIOS Boot

•Intel® Express BIOS Update

Power Management

•Support for Advanced Configuration and Power Interface (ACPI)

•Suspend to RAM (STR)

•Wake on USB, PCI, PCI Express, PS/2, LAN, and front panel

Hardware Management

Hardware monitor with:

•Three fan sensing inputs used to monitor fan activity

•Remote diode temperature sensing

•Intel® Precision Cooling Technology fan speed control

•Voltage sensing to detect out of range values

Peripheral interface

Up to three IEEE 1394a ports

•One port routed to the back panel

•Two ports routed to two IEEE 1394a headers

•Intel® 82573E Gigabit Ethernet Controller with RJ-45 connector

Hardware management

•Trusted Platform Module

•Intel® Active Management Technology

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
