Intel DG33BU Rev D79551 405 Mainboard +Blende Sockel 775 DDR2 VGA IEEE1394* m976

Intel DG33BU Rev D79551-405 Mainboard + Blende Sockel 775 DDR2 VGA IEEE1394

Technische Daten

CPU

Intel® Xeon® X3360, X3350, X3230, X3220, X3210 processor in an LGA775 socket

Intel® Core™2 Quad processor in an LGA775 socket

Intel® Core™2 Duo processor in an LGA775 socket

Intel® Pentium® Dual-Core processor in an LGA775 socket

Intel® Celeron® Dual-Core processor in an LGA775 socket

Möglicherweise Bios Update nötig! Siehe hierzu bitte CPU Support Liste des Herstellers!

Chipset

Intel G33 Express Chipset Graphics and Memory Controller Hub (GMCH) + Intel® 82801IH I/O Controller Hub (ICH9DH)

Memory

4 x 240-pin DDR2 1.8V (only) SDRAM Dual Inline Memory Module (DIMM) sockets

800/667 MHz single or dual channel DDR2 SDRAM interface

Support for up to 8 GB of system memory

Expansion Capabilities

1 x PCI Express x16 connector

1 x PCI Express x1 connectors

2 x PCI connectors

Storage

4 x SATA 3.0 Gb/s ports via ICH9DH

1 x IDE interface with ATA-66/100 support for up to two devices

Video

Intel® Graphics Media Accelerator 3100 (Intel® GMA 3100) onboard graphics subsystem

LAN Support

Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel® 82566DC Gigabit Ethernet Controller

Audio

6-channel (5.1) onboard subsystem Realtek ALC888 High Definition audio codec

USB

12 x USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)

IEEE1394 Firewire

2 x IEEE1394 ports (1 port at mid-board, 1 port at back panel)

Legacy I/O Control

One diskette drive interface

One serial port header

PS/2 keyboard and mouse ports

Back Panel I/O Ports

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x IEEE1394 Firewire

1 x VGA Sub-D

1 x RJ45 port

6 x USB 2.0/1.1

5.1-channel Audio I/O

Internal I/O Connectors

1 x 24-pin ATX Power connector

1 x 4-pin ATX 12V Power connector

1 x 4-pin CPU Fan connector

2 x Chassis Fan connector (2 x 3-pin)

1 x Front Audio Panel connector

1 x System Panel connector

1 x IEEE1394 Firewire connector

3 x USB connectors support additional 6 USB ports

1 x Serial port connector (COM)

4 x SATA connectors

1 x IDE connector

1 x FDD Floppy connector

1 x Chassis Intrusion connector

1 x Bios Configuration Jumper Block

1 x Alternate front panel power LED connector

BIOS

Intel® Platform Innovation Framework for extensible firmware interface

8 Mbit symmetrical flash memory device

Support for SMBIOS

Intel® Rapid BIOS Boot

Intel® Express BIOS Update

Power Management

Support for Advanced Configuration and Power Interface (ACPI)

Suspend to RAM (STR)

Wake on USB, PCI Express, PS/2, LAN, and front panel

ENERGY STAR* qualified desktop board

Hardware Management

Three fan sensing inputs used to monitor fan activity

Intel® Quiet System Technology fan speed control

Voltage sensing to detect out of range values

Form Factor

microATX 9.60 inches x 9.60 inches (243.84 mm x 243.84 mm)

Lieferumfang

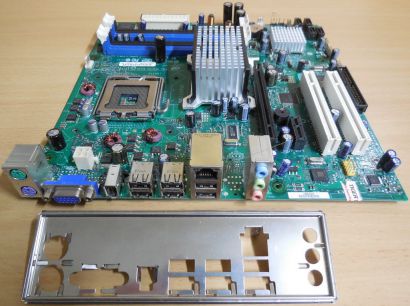

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

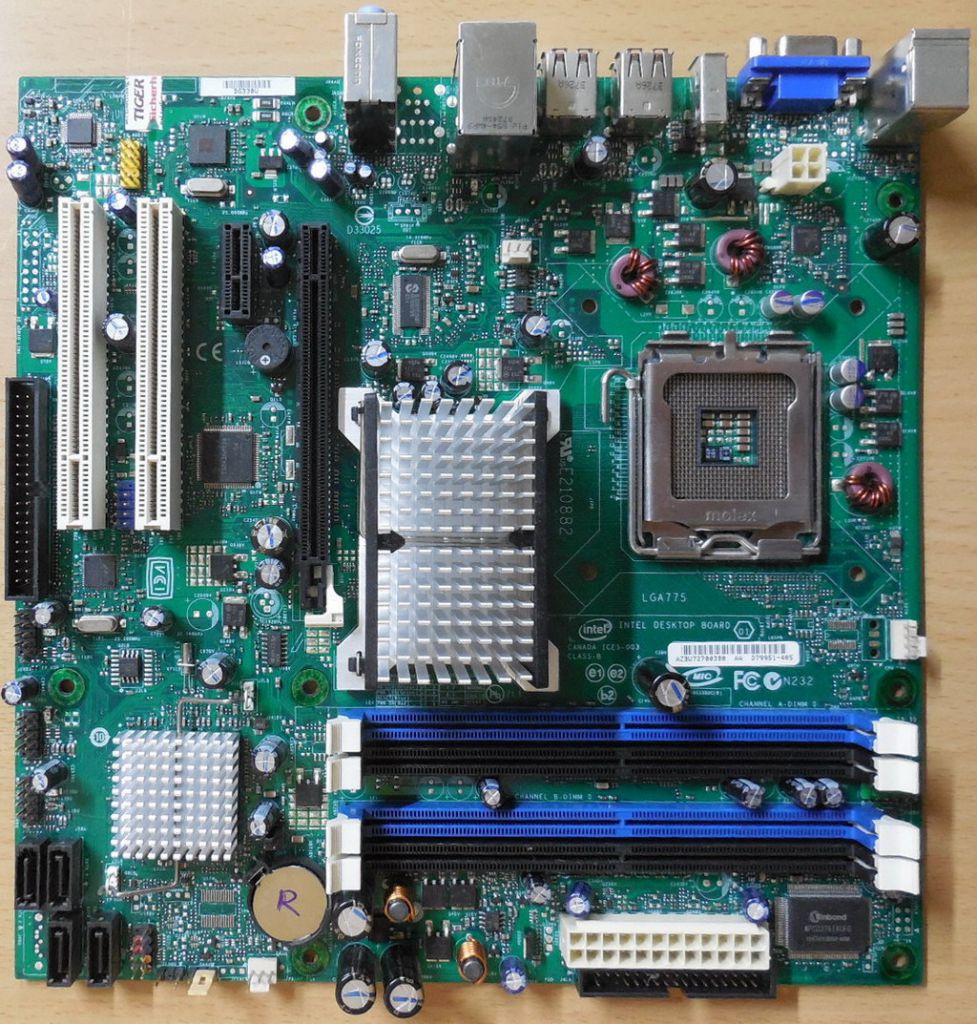

Abbildung ähnlich
