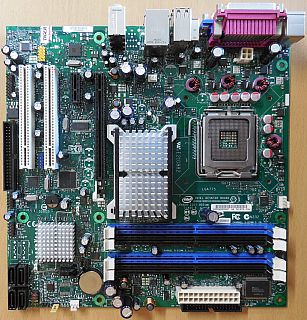

Intel DG965SS RevD41678 304 Mainboard +Blende Sockel 775 DDR2 VGA IEEE1394*m1034

Intel DG965SS Rev D41678-304 Mainboard + Blende Sockel 775 DDR2 VGA IEEE1394

Technische Daten

CPU

Intel® Core™2 Duo processor in an LGA775 socket with a 1066 or 800 MHz system bus

Intel® Pentium® D processor in an LGA775 socket with an 800 or 533 MHz system bus

Intel® Pentium® 4 processor in an LGA775 socket with an 800 or 533 MHz system bus

Intel® Celeron® D processor in an LGA775 socket with a 533 MHz system bus

Möglicherweise Bios Update nötig! Siehe hierzu bitte CPU Support Liste des Herstellers!

Chipset

Intel® 82G965 Graphics Memory Controller Hub (GMCH) + Intel® 82801HB I/O Controller Hub (ICH8)

Memory

4 x 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets

Support for DDR2 800, DDR2 667, or DDR2 533 MHz DIMMs

Support for up to 8 GB of system memory using DDR2 667 or DDR2 533 DIMMs

Support for up to 4 GB of system memory using DDR2 800 DIMMs

Expansion Capabilities

2 x PCI Conventional bus connectors

1 x PCI Express x1 bus add-in card connector

1 x PCI Express x16 bus add-in card connector

Storage

4 x SATA 3.0 Gb/s ports via ICH8

1 x IDE interface with ATA-66/100/133 support for up to two devices

Video

Intel® Graphics Media Accelerator X3000 onboard graphics subsystem

LAN Support

Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel® 82566DC Gigabit Ethernet Controller

Audio

6-channel (5.1) onboard subsystem SigmaTel STAC9227 High Definition Audio Codec

USB

10 x USB 2.0 ports (4 ports at mid-board, 6 ports at back panel)

IEEE1394 Firewire

2 x IEEE1394 ports (1 port at mid-board, 1 port at back panel)

Legacy I/O Control

1 x diskette drive interface

1 x serial port header

1 x parallel port

PS/2 keyboard and mouse ports

Back Panel I/O Ports

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Parallel

1 x IEEE1394 Firewire

1 x VGA Sub-D

1 x RJ45 port

6 x USB 2.0/1.1

5.1-channel Audio I/O

Internal I/O Connectors

1 x 24-pin ATX Power connector

1 x 4-pin ATX 12V Power connector

1 x 4-pin CPU Fan connector

1 x 3-pin Chassis Fan connector

1 x 3-pin REAR Fan connector

1 x Front Audio Panel connector

1 x HD Audio Link connector

1 x System Panel connector

1 x IEEE1394 Firewire connector

2 x USB connectors support additional 4 USB ports

1 x Serial port connector (COM)

4 x SATA connectors

1 x IDE connector

1 x FDD Floppy connector

1 x Chassis Intrusion connector

1 x Bios Configuration Jumper Block

1 x Alternate front panel power LED connector

1 x Buzzer

BIOS

Intel® BIOS (resident in the SPI Flash device)

Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS

Instantly Available PC Technology

Support for PCI Local Bus Specification Revision 2.3

Support for PCI Express Revision 1.0a

Suspend to RAM support

Wake on PCI, RS-232, front panel, PS/2 devices, and USB ports

Hardware Monitor Subsystem

Intel® Quiet System Technology implemented through ICH8

Voltage sense to detect out of range power supply voltages

Thermal sense to detect out of range thermal values

Three fan headers

Three fan sense inputs used to monitor fan activity

Form Factor

microATX 9.60 inches x 9.60 inches (243.84 mm x 243.84 mm)

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
