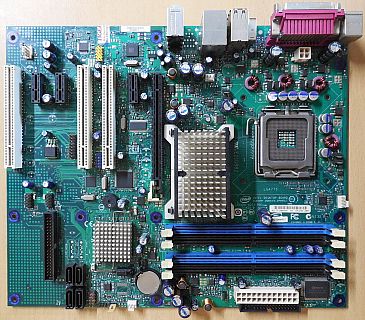

Intel DP965LT Rev D41694-209 Mainboard +Blende Sockel 775 PCIe SATA DDR2* m1085

Intel DP965LT Rev D41694-209 Mainboard + Blende Sockel 775 PCIe SATA DDR2 Gigabit LAN USB2.0 IEEE1394 FireWire SATA

Technische Daten

CPU

Intel® Core™2 Extreme processor in an LGA775 socket with a 1066 MHz system bus

Intel® Core™2 Duo processor in an LGA775 socket with a 1066 or 800 MHz system bus

Intel® Pentium® D processor in an LGA775 socket with an 800 or 533 MHz system bus

Intel® Pentium® 4 processor in an LGA775 socket with an 800 or 533 MHz system bus

Intel® Celeron® D processor in an LGA775 socket with a 533 MHz system bus

Check the Intel Website for CPU Support List

Chipset

Intel® P965 Express Chipset bestehend aus:

Intel® 82P965 Memory Controller Hub (MCH)

Intel® 82801HB I/O Controller Hub (ICH8)

Memory

4 x 240-pin, 1.8 V DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets

Support for DDR2 800, DDR2 667, or DDR2 533 MHz DIMMs

Support for up to 8 GB of system memory using DDR2 667 or DDR2 533 DIMMs

Support for up to 4 GB of system memory using DDR2 800 DIMMs

Expansion Capabilities

3 x PCI bus add-in card connectors

1 x PCI Express x16 bus add-in card connector

3 x PCI Express x1 bus add-in card connectors

Audio

Intel® High Definition 6-ch 5.1 Audio interface by SigmaTel STAC9227 Codec

Storage

4 x SATAII 3.0 Gb/s ports via ICH8

1 x IDE interface with ATA-66/100/133 support for up to 2 devices

LAN

Intel® 82566DC Gigabit Ethernet LAN Controller 10/100/1000 Mbits/sec

USB

10 x USB 2.0 ports (4 ports at mid-board, 6 ports at back panel)

IEEE1394 FireWire

Up to two IEEE 1394a ports (1 x at back panel; 1 x internal ports by header)

Internal I/O Connectors

1 x 24-pin ATX Power connector

1 x 4-pin ATX 12V Power connector

1 x 4-pin CPU Fan connector

1 x 3-pin Front Chassis Fan connector

1 x 4-pin Rear Chassis Fan connector

1 x 3-pin Chassis Rear Fan connector

1 x Front Panel connector

1 x Power LED connector

2 x USB2.0 connectors support additional 4 USB2.0 ports

1 x IEEE1394 FireWire connector

4 x SATAII connectors

1 x IDE connector

1 x FDD Floppy connector

1 x Chassis Intrusion header

1 x Bios Configuration Jumper

1 x Front Panel Audio connector

1 x High Definition Audio Link connector

1 x Buzzer

Back Panel I/O Ports

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Parallel port

1 x RJ45 port

6 x USB 2.0/1.1

1 x IEEE1394 FireWire port

3 x Audio ports (Line-in / Line-out / MIC)

BIOS

Intel® BIOS (resident in the SPI Flash device)

Support for Advanced Configuration and Power Interface (ACPI), Plug and Play and SMBIOS

Instantly Available PC Technology

Support for PCI Local Bus Specification Revision 2.3, PCI Express Revision 1.0a

Suspend to RAM support

Wake on PCI, RS-232, front panel, PS/2 devices and USB ports

Hardware Monitor Subsystem

Intel® Quiet System Technology for acoustically-optimized thermal management

Voltage sense to detect out of range power supply voltages

Thermal sense to detect out of range thermal values

Four fan headers

Three fan sense inputs used to monitor fan activity

Form Factor

ATX; ca. 294.64mm x 243.84mm (11.60" inches x 9.60" inches)

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
