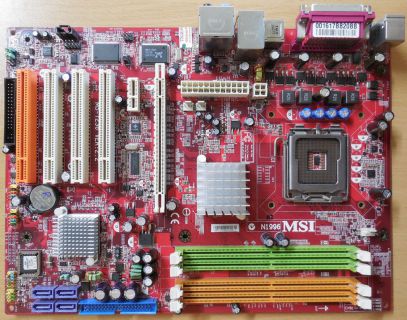

MSI 945P Neo3-F MS-7236 Ver 2.2 Mainboard +Blende Intel Sockel 775 DDR2* m855

MSI 945P Neo3-F MS-7236 Ver 2.2 Mainboard +Blende Intel Sockel 775 DDR2

Technische Daten

CPU

Supports Socket 775 for Intel® Core 2 Duo, P4 5XX, 6XX, P4EE, Pentium D 8XX, 9XX and Celeron D processors.

Supports FSB 1066/800/533MHz.

Supports EIST technology, Intel® Hyper-Threading technology, Intel® Dual Core Technology to 800MHz and up.

Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

Intel® 945P Chipset

- Supports FSB 533/800/1066MHz; PCI-Express x16 graphics interface; Supports Dual Channel DDR2 400/533/667 (4GB Maximum)

Intel® ICH7 Chipset

- Hi-Speed USB2.0 controller 480Mb/sec up to 8 ports; 4 x SATAII ports with transfer rate up to 3Gb/s; 1 channel Ultra ATA 100 bus master IDE controller; PCI Master v2.3, I/O APIC; ACPI 2.0 compliant.

Main Memory

Supports four unbuffered DIMM of 1.8 Volt DDRII SDRAM up to 4GB memory size

Supports dual channel DDRII memory architecture

Supports DDRII 667/533/400 memory interface

Slots

One PCI Express x16 slot. (supports PCI Express Bus specification v1.0a compliant)

One PCI Express x1 slot. (support PCI Express Bus specification v1.0a compliant)

Four 32-bit v2.3 master PCI bus slots. (support 3.3v/5v PCI bus interface)

On-Board IDE/SATA

One Ultra DMA 66/100 IDE controllers integrated in ICH7.

- Supports PIO, Bus Master operation modes; Can connect up to two Ultra ATA drives

SATAII controller integrated in ICH7

- Up to 300MB/sec transfer speed; Can connect up to four SATAII devices

Audio

Realtek® ALC850 8 channels audio codec controller integrated in Intel® ICH7 chip.

- Meet PC2001 audio performance requirement; Compliance with AC97 V2.3 spec

LAN

Realtek® RTL8110SC

- Supports 10/100/1000 Mb/s; Compliance with PCI 2.2; Supports ACPI Power Management.

Internal I/O Connectors

ATX 24-Pin power connector

4-pin ATX 12V power connector

CPU 4pin / System 3pin / Power FAN 3pin connectors

CD-in connector

Clear CMOS jumper

Chassis intrusion switch connector

IrDA infrared module header

Serial port connector

Front Panel audio connector

Front Panel connector

2 x USB 2.0 connector support additional 4 ports

1 x Floppy disk drive connector

4 x Serial ATAII connectors

1 x ATA100 connector

Back Panel I/O Ports

1 x Parallel port

1 x Serial port (COM 1)

1 x PS/2 keyboard

1 x PS/2 mouse

1 x 6 in 1 audio jack

4 x USB 2.0 ports

1 x RJ45 LAN jacks

BIOS

The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.

The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

30.5cm(L) x 22.5cm(W) ATX Form Factor

Mounting

6 mounting holes.

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
