MSI MS-7091 Ver 1.2 Medion 8383XL Mainboard +Blende Sockel 775 PCIe DDR1* m170

MSI MS-7091 Ver 1.2 Medion 8383XL Mainboard + Blende Sockel 775 PCIe DDR1

Technische Daten

CPU

Supports Intel Pentium 4 Prescott LGA775 processors in LGA775 package

Supports up to Pentium 4 3XX, 5XX sequence processor or higher speed

Supports Intel Hyper-Threading Technology

Chipset

Intel 915P chipset

- Supports FSB 533/800MHz

- Supports DDR 400/333 memory interface

Intel ICH6R chipset

- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 6 ports

- 4 Serial ATA ports with transfer rate up to 150 Mbytes/sec

- 1 channel Ultra ATA 100 bus Master IDE controller

- PCI Master v2.3, I/O APIC

- ACPI 2.0 Compliant

- Serial ATA 150 RAID 0, RAID 1 and Matrix RAID

- Integrated AHCI controller

Main Memory

Supports 4 x DDR1 SDRAM memory modules

Supports up to 4GB memory size

Supports Dual channel

Slots

1 x PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant)

3 x 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface)

The second PCI slot (PCI2, in green color) supports 2 master devices

On-Board IDE & SATA

One Ultra DMA 66/100 IDE controllers integrated in ICH6R

- Supports PIO, Bus Master operation modes

- Can connect up to Two Ultra ATA drives

Serial ATA 150 controller integrated in ICH6R

- Up to 150MB/sec transfer speed

- Can connect up to four Serial ATA devices

On-Board Peripherals

On-Board Peripherals include:

1 x floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

1 x serial port

1 x parallel port supports SPP/EPP/ECP mode

6 x USB 2.0 / 1.1 ports (Rear*4 / Front*2)

1 x RJ45 connector

1 x Rear 1394 port (6 Pins) / 1 x Front 1394 port

1 x Coaxial SPDIF-Out / SPDIF-In, 1 x Optical SPDIF-Out / SPDIF-In

1 x MIC-In

4 x Line-Out

1 x Line-In

LAN

VIA® VT6106L LAN Controller

- 10/100 IEEE 802.3/802.3u 10Base-T & 100Base-T compliant

IEEE 1394

VIA® VT6307 PCI 1394a Integrated Host Controller

Audio

Azalia link controller integrated in Intel ® ICH6R chipset

8-channel audio codec CMedia CMI9880L

BIOS

The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically

The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications

Mounting and Dimension

M-ATX Form Factor: 24.38 cm (L) x 24.38 cm (W); 6 mounting holes

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

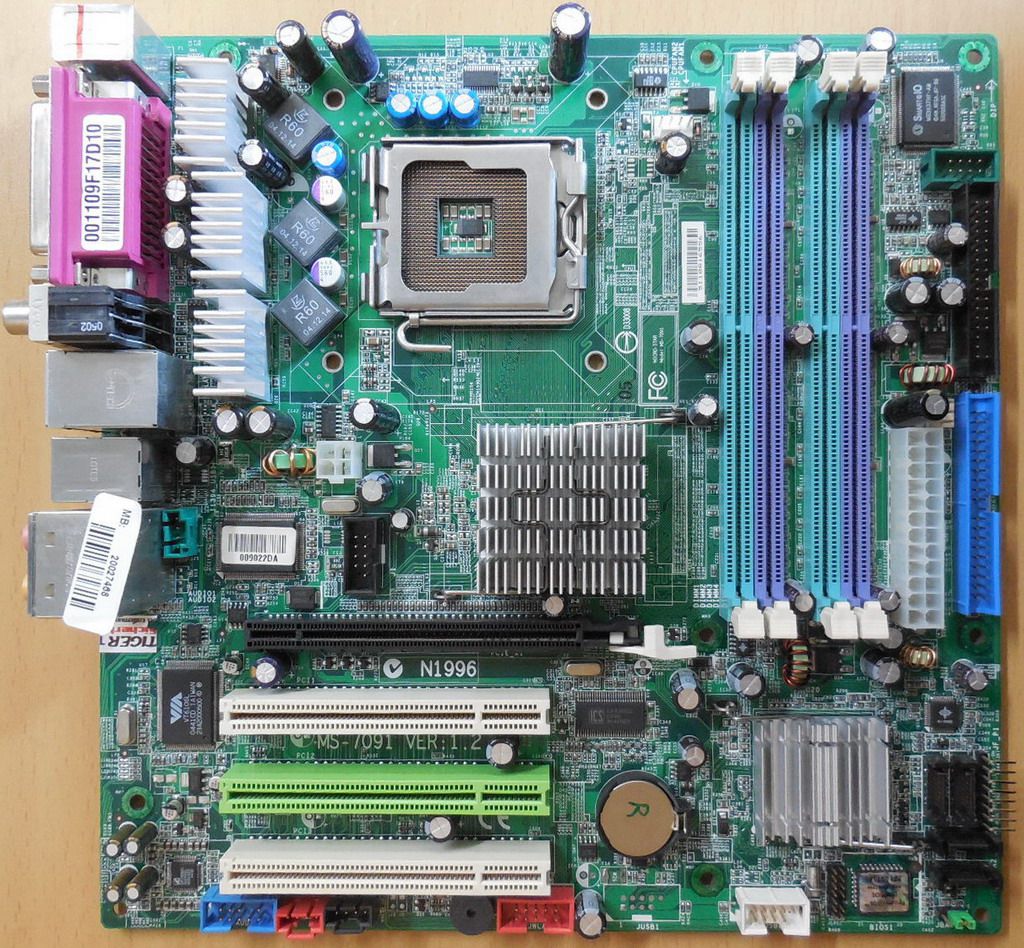

Abbildung ähnlich
