Produktbeschreibung

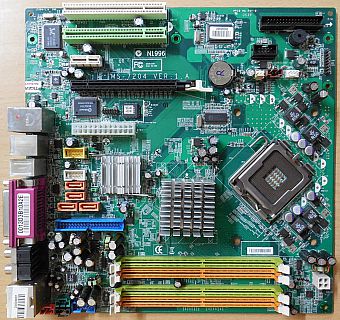

MSI MS-7204 Ver 1.A Medion MD8800 BTX Mainboard + Blende Sockel 775 DDR2 PCIe
Nur in Verwendung mit dem originalen Medion Kühler sinnvoll!
Technische Daten
CPU
Supports Intel® Pentium 4 / Celeron D Prescott LGA775 processors (Prescott and Smithfield) in LGA775 package
Supports 2005 Performance FMB CPU VR Design
Supports 3/4 pin CPU Fan Pin-Header with Fan Speed Control
Supports up to Pentium 4 3XX, 5XX, 6XX & 8XX (Prescott and Smithfield)
Chipset
Intel® 945P chipset
- Supports FSB 533/ 800/1066MHz
- Supports PCI Express x16 graphics interface
- Supports DDR2 533/667
Intel® ICH7 / ICH7R chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports
- 4 SATAII ports with transfer rate up to 3Gb/s
- 1 channel Ultra ATA 100 bus Master IDE controller
- PCI Master v2.3, I/O APIC
- ACPI 2.0 Compliant
- Serial ATA RAID 0, RAID 1, RAID 10, RAID 5 and Matrix RAID. (for ICH7R)
- Integrated AHCI controller (ICH7R)
Main Memory
Supports four unbuffered DIMM of 1.8 Volt DDR2 SDRAM
Supports up to 4GB memory size
Supports Dual channel DDR memory architecture
Supports DDR2 533/667 memory interface
Slots
One PCI Express x16 slot
One PCI Express x1 slot
Two 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface)
The second PCI slot (PCI 2.2, in green color) supports 3 devices
On-Board IDE
One Ultra DMA 66/100 IDE controller integrated in ICH7/ICH7R. Supports PIO, Bus Master operation modes.
SATAII controller integrated in ICH7/ICH7R
Up to 300MB/sec transfer speed. Can connect up to four SATAII devices.
Supports AHCI controller with SATA Raid 0, Raid 1 and Matrix Raid (ICH7R).
On-Board Peripherals
1 x floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
1 x serial port
1 x parallel port supports SPP/EPP/ECP mode
1 x Line-In / Front-Out / Side Surround / Center Bass / Back Surround
1 x coaxial SPDIF-Out / SPDIF-In / Optical SPDIF-Out / SPDIF-In
8 x USB ports (Rear * 4/ Front * 4)
1 x RJ-45 LAN jack
LAN
Realtek 8100C 10/100Mbps Fast Ethernet
1394 Firewire
Supports two IEEE1394 onboard pinheader. Transfer rate is up to 400 Mbps. Controlled by VIA VT6307 chip.
Audio
High Definition link controller integrated in Intel®ICH7/ICH7R chip
7.1 + 2 channels audio codec Realtek ALC882
Compliant with Azalia 1.0 Spec
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Mounting and Dimension
mBTX Form Factor; ca. 26.7 cm x 26.5 cm; 7 mounting holes
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
