MSI MS-7336 Ver1.0 HP 441388 001 440567 002 Mainboard Sockel 775 PCIe SATA* m354

MSI MS-7336 Ver 1.0 HP 441388-001 440567-002

Mainboard Sockel 775 PCIe SATA

Technische Daten

ausgebaut aus einem HP/Compaq dx2300-er Serie PC.

CPU Support

Intel Core 2 Duo (Conroe, Allendale)

Intel Pentium Dual-Core (Allendale)

Intel Pentium D (Smithfield, Presler)

Intel Pentium 4 Extreme Edition (Gallatin, Prescott 2M)

Intel Pentium 4 (Prescott, Prescott 2M, Cedar Mill)

Intel Celeron Dual-Core (Allendale)

Intel Celeron (Conroe-L)

Intel Celeron D (Prescott, Cedar Mill)

Chipset

Intel 946GZ (Lakeport) / ICH7 (82801GB)

NB/SB interconnection via Direct Media Interface with 2 GB/s (4 DMI lanes, 1 GB/s each direction)

Supports FSB 533/800 (133/200 MHz QDR)

Supports 128 bit memory interface (Dual Channel)

Supports Advanced Configuration and Power Interface (ACPI)

Supports Universal Serial Bus (USB 2.0/1.1)

Supports PCI Express (PCIe 1.1)

Supports PCI v2.3

Supports Serial ATA 3.0 Gbit/s

Memory

2 x 240-Pin DIMM sockets supporting DDR2-SDRAM

Supports up to 2 DIMMs DDR2 533/667

Supports up to 2 GB DIMMs

Supports max. 4 GiB RAM

Supports 128 bit memory interface (Dual Channel)

Graphics

Intel GMA 3000 IGP

Supports up to 256 MB shared memory

Supports Pixel Shader Model 2.0

Supports Vertex Shader Model 2.0/3.0 (Software)

Microsoft DirectX 9.0c compliant

OpenGL 1.4 compliant

Audio

ICH7 integrated Intel HD Audio controller

Realtek ALC888 HD Audio codec

Supports High Definition Audio

LAN

ICH7 integrated Intel Pro/100 VE MAC / Intel 82562GT PHY

Supports 10/100M Fast Ethernet

Internal I/O

1 x PCIe x16

2 x PCIe x1

1 x PCI

4 x SATA

1 x Floppy port

2 x USB 2.0/1.1 headers

1 x RS-232 header (COM)

1 x Front Panel audio header

Back Panel I/O

1 x PS/2 keyboard

1 x PS/2 mouse

4 x USB 2.0/1.1 ports

1 x VGA port

1 x RJ45 (LAN)

1 x RS-232 port (COM)

1 x Parallel port (LPT)

Audio connectors (line-out, line-in, mic-in)

BIOS

8 MBit Flash EEPROM (PLCC32)

Phoenix - AwardBIOS v6.00PG

Supports Plug-and-Play (PNP)

Supports Advanced Power Management (APM)

Supports Advanced Configuration and Power Interface (ACPI)

Supports Desktop Management Interface (DMI)

Miscellaneous

Micro-ATX form factor

24 pin ATX power connector

4 pin 12V power connector

Winbond W83627DHG hardware monitoring and Super I/O chip

MSI MS-7G ACPI controller

Silego SLG84516BT clock generator (PLL)

Intersil ISL6312 multiphase PWM controller (2-/3-/4-phase operation)

1 x 4-pin FAN header

1 x 3-pin FAN header

6 mounting holes

Lieferumfang

Nur das Mainboard * ohne weiteres Zubehör * gebraucht *

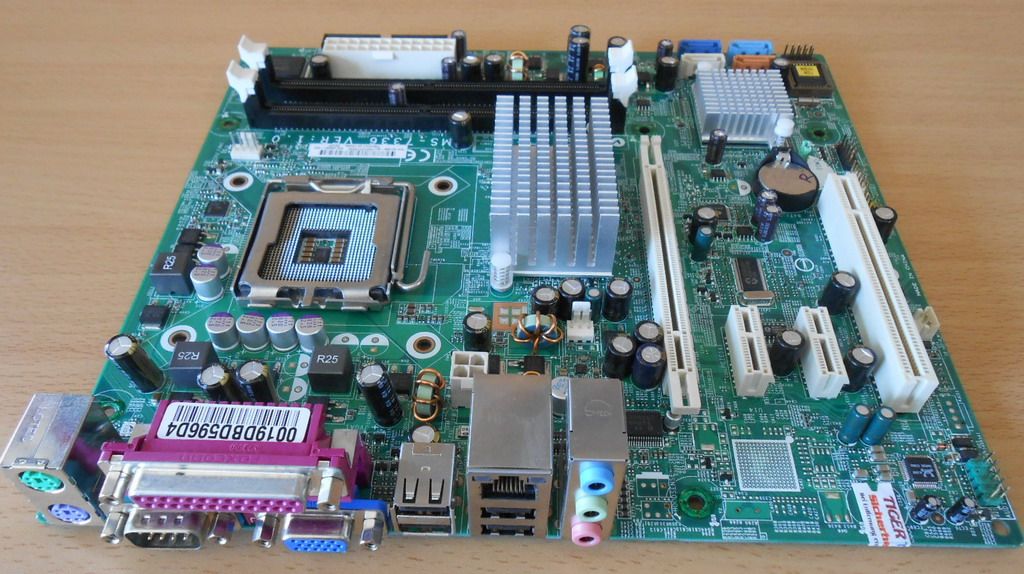

Abbildung ähnlich
