Produktbeschreibung

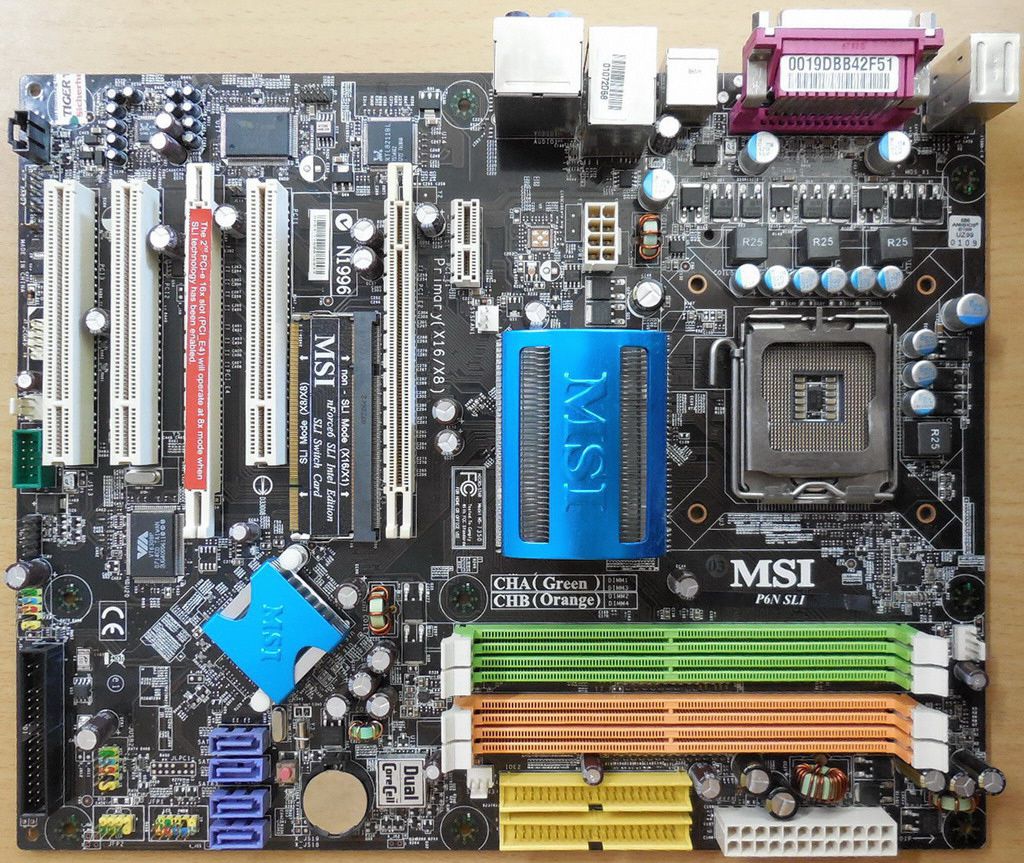

MSI MS-7350 Ver 1.0 P6N SLI Platinum Mainboard + Blende Sockel 775 nForce 650i
Technische Daten
CPU
Supports Socket 775 for Intel® Core 2 Quad, Core 2 Duo, P4, P4EE, Pentium D, Pentium XE processors.
Supports FSB 1333/1066/800/533MHz. (FSB 1333MHz is ready for new Core 2 processors)
Supports EIST technology.
Supports Intel® Hyper-Threading technology.
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
NVIDIA® nForce 650i SLI (C55) Chipset
NVIDIA® nForce 430i (MCP51) Chipset
Main Memory
Supports dual channel DDR2 533/667/800, using four 240-pin/1.8V DDR2 DIMMs.
Supports a maximum memory size up to 8GB
Slots
Two PCI Express x16 slots (supports PCI Express Bus specification v1.0a compliant)
- these two slots can support SLI technology with PCIE x8 mode.
- the second PCI Express x 16 slot (PCI_E4) is a special design that supports PCI Express x8 mode only.
- the second PCI Express x 16 slot (PCI_E4) only supports to install graphics card in SLI mode.
One PCI Express x1 slot (support PCI Express Bus specification v1.0a compliant)
Three 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface)
On-Board IDE
An IDE controller on the NVIDIA® nForce430i chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA133/100/66 operation modes. Can connect up to 4 IDE devices.
On-Board SATA
nForce 430i supports 4 SATA II ports (SATA 1 to 4). Transfer rate is up to 300 MB/s.
NV RAID
Supports up to 4 SATA Hard drives
- RAID 0, 1, 0+1, 5 or JBOD is supported
- Supports up to 4 drives for RAID function.
Audio
Chip integrated by Realtek® ALC888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 spec.
LAN
Supports 10/100/1000 Fast Ethernet by Realtek® RTL8211BL
IEEE1394
VIA® VT 6308P chipset. Transfer rate is up to 400Mbps
Internal I/O Connectors
ATX 24-Pin power connector
8-pin ATX 12V power connector
1 x CPU Fan connector
3 x System Fan connectors
1 x MSI D-Bracket 2 Connector
CD-in connector
Front panel audio connector
Front panel connector
1 x IEEE1394 connector
2 x USB 2.0 connector support additional 4 ports
1 x Floppy disk drive connector
4 x serial ATA connectors
1 x serial port connector
SPDIF-out connector for HDMI
2 x ATA133 HD connectors
Chassis intrusion switch connector
Clear CMOS button
Back Panel I/O Ports
1 x Parallel port
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x Optical SPDIF put
1 x 5 in 1 Audio jack
1 x IEEE1394 port
4 x USB 2.0 ports
1 x RJ45 LAN Jack
BIOS
The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension
ATX Form Factor (30.5cm x 24.5cm)
Mounting
9 mounting holes.
MSI Reminds you...
1. NVIDIA nForce Series boards DO NOT support Windows® 98/ME
2. SLI Technology only supports 32-bit and 64-bit Windows XP
3. For the best performance and commitment of convenience, please use memories listed in MSI approved memory module vendor list (Please check memory test report), which provides the easiest, up-to-date memory configurations.
Lieferumfang

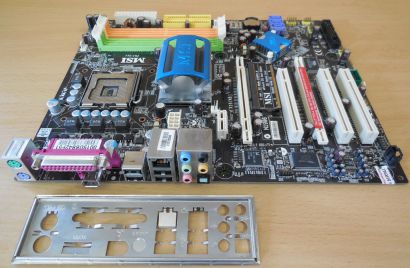

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
