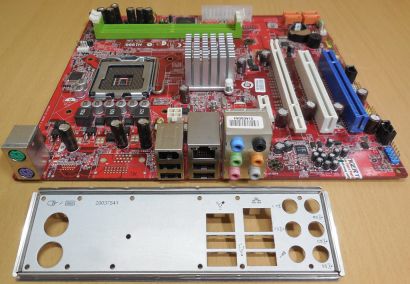

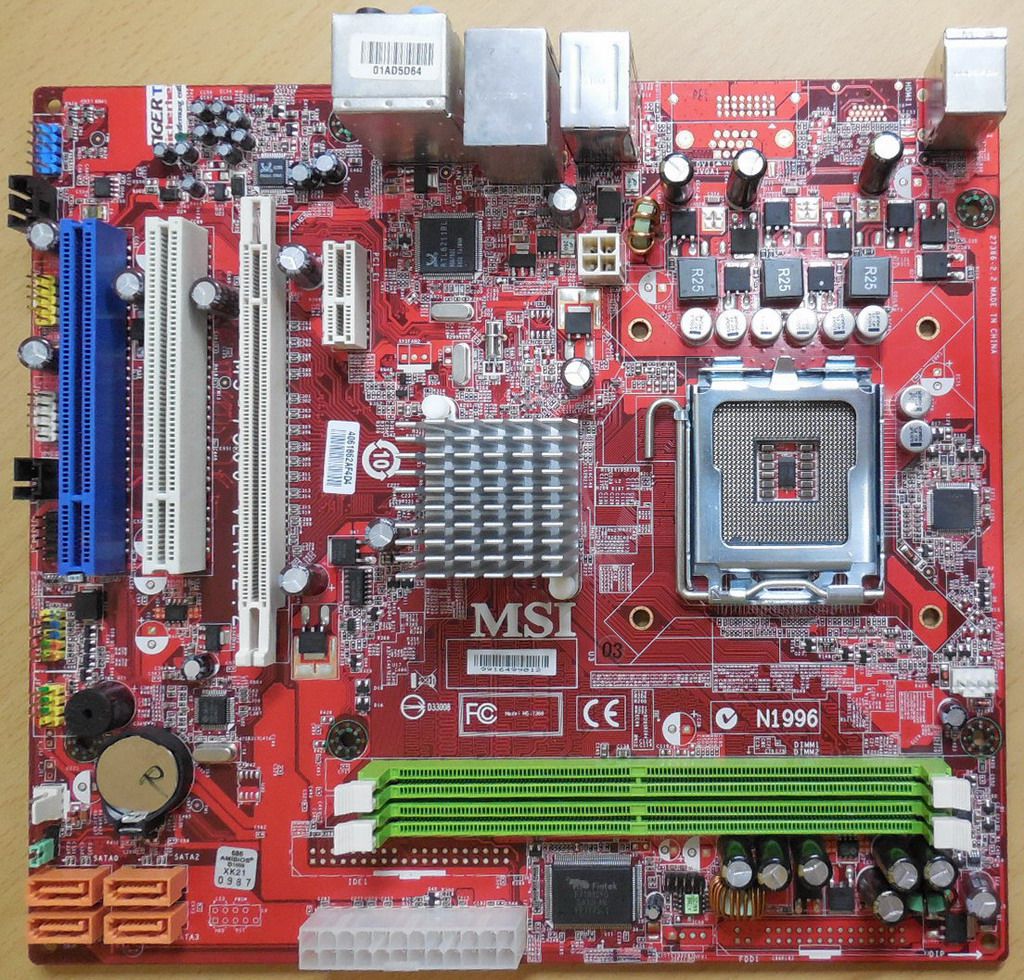

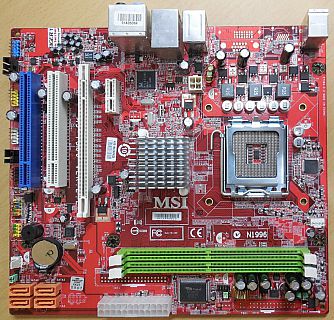

MSI MS-7366 VER 2.2 Mainboard +Blende Sockel 775 PCI-E 16x SATA DDR2 7.1ch* m462

MSI MS-7366 VER 2.2 Mainboard + Blende Sockel 775 PCI-E 16x SATA DDR2 7.1ch Audio

Technische Daten

CPU

Supports Socket 775 for Intel® Core 2 Quad, Core 2 Duo, P4, P4EE, Pentium D, Pentium XE processors

Supports FSB 1333/1066/800/533MHz

Supports EIST technology

Supports Intel® Hyper-Threading technology

Chipset

NVIDIA® MCP73V Chipset

Main Memory

Supports single channel DDR2 533/667

Two 240-pin/1.8V DDR2 DIMMs

Supports a maximum memory size up to 4GB

Slots

1 x PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant)

1 x PCI Express x1 slot (support PCI Express Bus specification v1.0a compliant)

2 x 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface)

On-Board SATA

NVIDIA® MCP73V supports 4 SATA II ports (SATA 1 to 4) with Transfer rates up to 3Gb/s

NV RAID (SATA1~4 support RAID 0/1, JBOD)

Realtek® ALC888 Audio

Flexible 8-channel audio with jack sensing

Compliant with Azalia 1.0 spec

LAN

Supports 10/100 Fast Ethernet by Realtek® 8201CL

Internal I/O Connectors

1 x ATX 24-Pin power connector

1 x ATX 4-pin 12V power connector

1 x 4-pin CPU FAN connector

1 x 3-pin System FAN connector

1 x CD-in connector

1 x Front panel audio connector

1 x JFP1 Front panel connector

1 x JFP2 Front panel connector

1 x SPDIF out connector

2 x USB 2.0 connectors

4 x serial ATA connectors

1 x IEEE1394 header

1 x Clear CMOS jumper

1 x Buzzer

Back Panel I/O Ports

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x 6 in 1 Audio jack

4 x USB 2.0 ports

1 x RJ45 LAN Jack

1 x IEEE1394 jack

BIOS

The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and
expansion cards of the board automatically.

The motherboard provides a Desktop Management Interface(DMI) function which records your
motherboard specifications.

Dimension

24.4cm(L) x 22.0cm(W); M-ATX Form Factor

Mounting

6 mounting holes

Lieferumfang

Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
