Produktbeschreibung

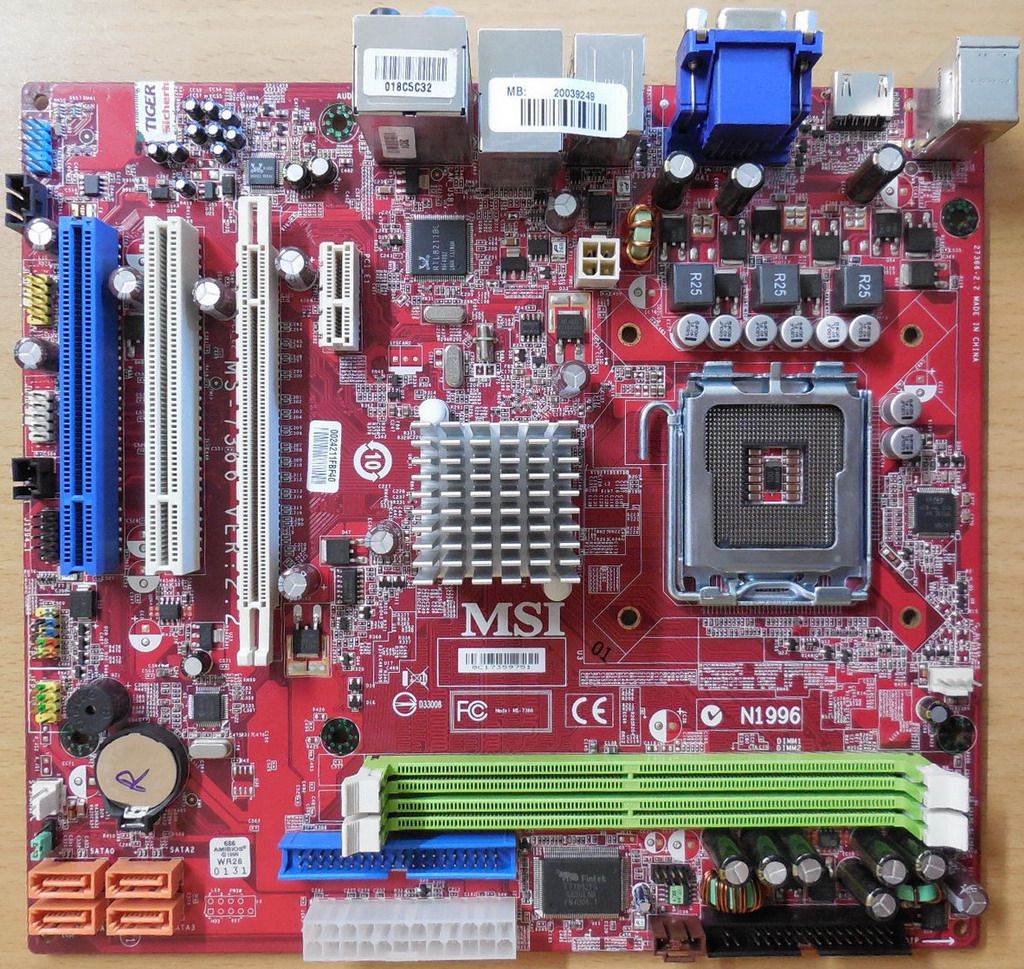

MSI MS-7366 Ver 2.2 Mainboard + Blende Sockel 775 VGA HDMI SATA DDR2 Audio
Technische Daten
CPU
Supports Socket 775 for Intel® Core 2 Quad, Core 2 Duo, P4, P4EE, Pentium D, Pentium XE processors
Supports FSB 1333/1066/800/533MHz
Supports EIST technology
Supports Intel® Hyper-Threading technology
Chipset
NVIDIA® MCP73V Chipset
Main Memory
Supports single channel DDR2 533/667
Two 240-pin/1.8V DDR2 DIMMs
Supports a maximum memory size up to 4GB
Slots
One PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant)
One PCI Express x1 slot (support PCI Express Bus specification v1.0a compliant)
Two 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface)
On-Board IDE controller on the NVIDIA® MCP73V
Supports PIO, Bus Master and Ultra DMA133/100/66 operation modes. Can connect up to 2 IDE devices.
On-Board SATA
NVIDIA® MCP73V supports 4 SATA II ports (SATA 1 to 4). Transfer rate is up to 3Gb/s.
NV RAID
SATA1~4 support RAID 0/1, JBOD
Realtek® ALC888 Audio Chip integrated
Flexible 8-channel audio with jack sensing. Compliant with Azalia 1.0 spec.
LAN
Supports 10/100 Fast Ethernet by Realtek® 8201BL
Internal I/O Connectors
ATX 24-Pin power connector
ATX 4-pin 12V power connector
1 x CPU FAN connector (4-pin)
1 x System FAN connector (3-pin)
1 x Front LCD Panel connector
1 x JSPI1 connector
1 x CD-in connector
1 x Front Audio Panel connector
1 x JFP1 Front panel connector
1 x JFP2 Front panel connector
1 x SPDIF out connector
2 x USB 2.0 connectors for additional 4 ports
1 x IEEE1394 Firewire connector for 1 additional port
1 x Floppy disk drive connector
4 x serial ATA connectors
1 x ATA133 connector for up to two devices
Clear CMOS jumper
Buzzer
Back Panel I/O Ports
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x 6 in 1 Audio jack
4 x USB 2.0 ports
1 x RJ45 LAN Jack
1 x IEEE1394 jack
1 x VGA Sub-D port
1 x HDMI port
BIOS
The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension
24.4cm(L) x 22.0cm(W) M-ATX Form Factor
Mounting
6 mounting holes
Lieferumfang

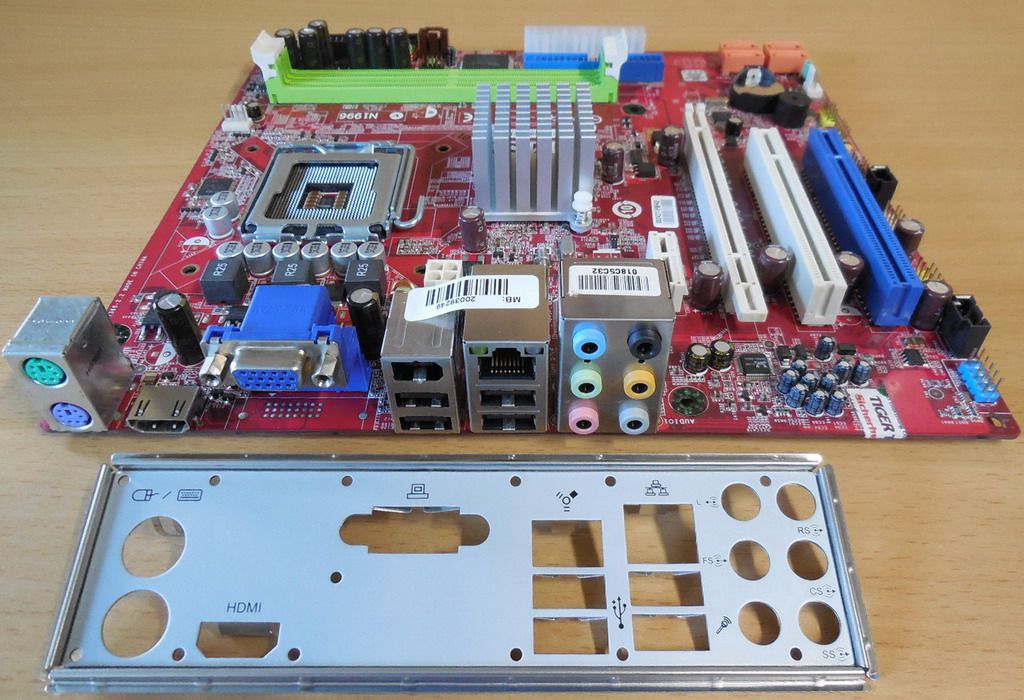

MSI MS-7366 Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
