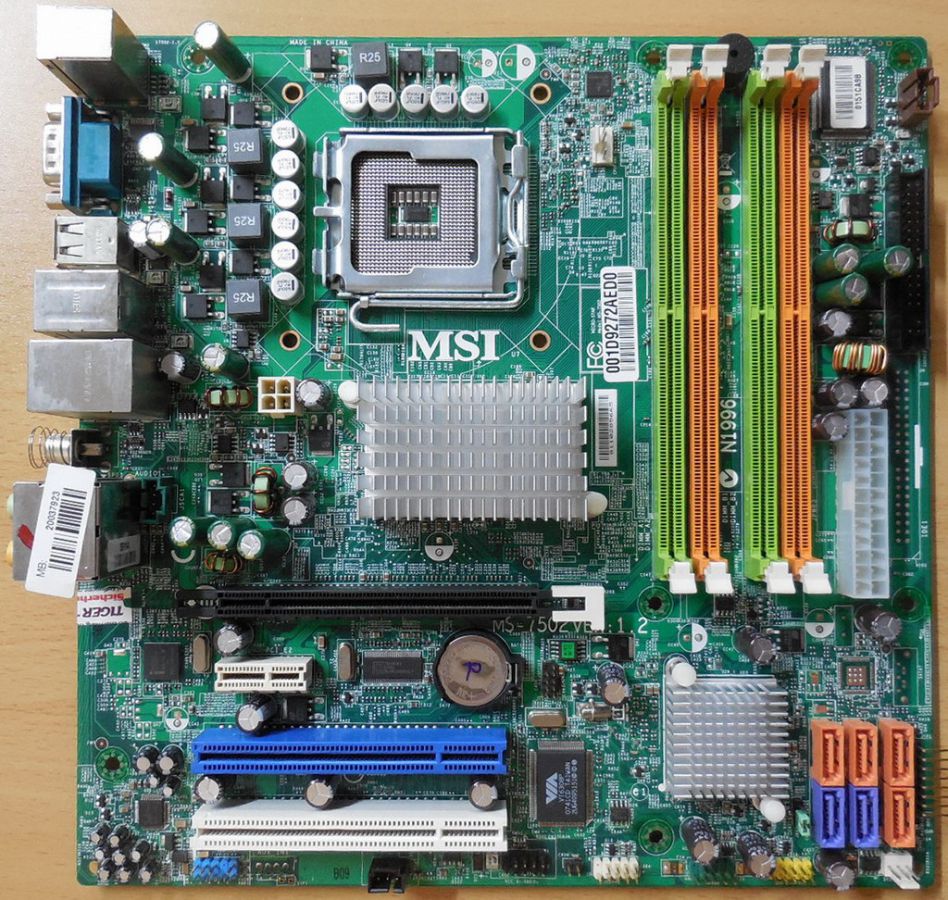

MSI MS-7502 Ver 1.2 Medion MD8828 Mainboard +Blende Sockel 775 Intel G33* m176

MSI MS-7502 Ver 1.2 Medion MD8828 Mainboard + Blende Sockel 775 Intel G33

Technische Daten

CPU

Intel Core 2 Quad / Core 2 Duo / Dual-Core (E2xxx) processors in the LGA775 package

FSB

1333 / 1066 / 800 MHz

Chipset

Intel G33 chipset Northbridge + Intel ICH9DH chipset Southbridge

Memory Support

4 x DDR2 DIMMs (240pin / 1.8V); DDR2 800 / 667 SDRAM; max. 8GB

Slots

1 x PCI Express x16 slot

1 x PCI Express x1 slot

1 x PCI white slot support 3.3V/ 5V PCI bus Interface, support 1 device

1 x PCI blue slot, support 3.3V/ 5V PCI bus interface, support 2 devices

LAN

Supports PCIE LAN 10/100 Fast Ethernet by Intel 82562V

Audio

Chip integrated by Realtek ALC888S

Flexible 8-channel audio with jack sensing

Supports 2 SPDIF-out (coaxial & optical)

Compliant with Azalia 1.0 Spec

Meet Microsoft Vista Premium spec

SATA

6 x SATAII ports by ICH9DH

Supports storage and data transfers at up to 300 MB/s

IEEE1394 Firewire

Supports IEEE1394 by VIA VT6308

FDD

1 x floppy port

Supports 1 FDD with 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB

Back panel

1 x PS/2 mouse port

1 x PS/2 keyboard port

1 x Serial port

6 x USB 2.0 Ports

1 x IEEE1394 Firewire port

1 x LAN jack (10/100)

5 x flexible audio jacks

1 x Optical SPDIF-Out port

1 x Coaxial SPDIF-Out port

Internal I/O Connectors

ATX 24-pin power connector

ATX 4-pin 12V CPU power connector

1 x CPU FAN connector

1 x SYS FAN connector

3 x USB 2.0 connectors for additional 6 USB2.0 ports

1 x IEEE1394 Firewire connector

1 x SPDIF-out connector

1 x AUX-in connector

1 x Front Audio connector

1 x JVFD connector

1 x SCART-Out connector

1 x Floppy connector

6 x SATAII connectors

1 x JSPI1 connector

1 x JSMI1 connector

1 x Buzzer

Form Factor

Micro-ATX (24.5cm X 24.5cm)

Lieferumfang

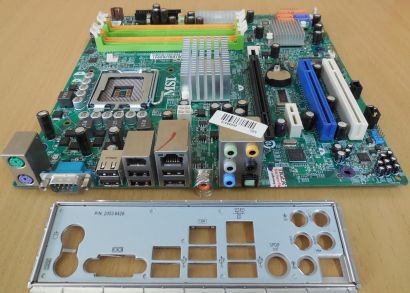

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
