Produktbeschreibung

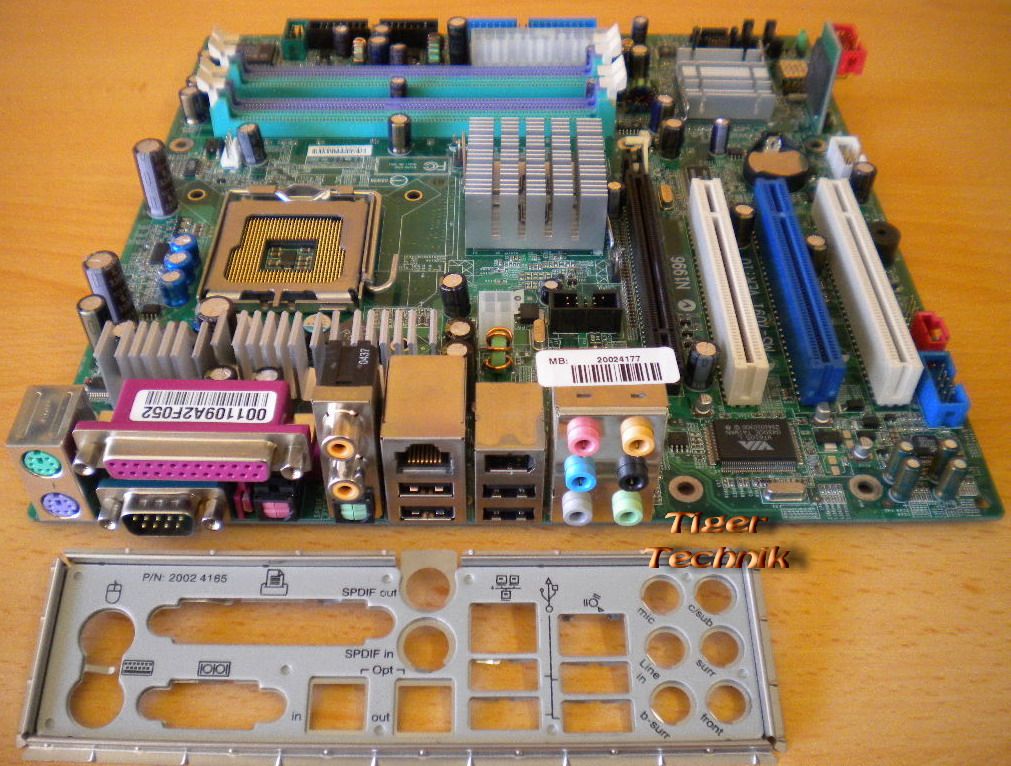

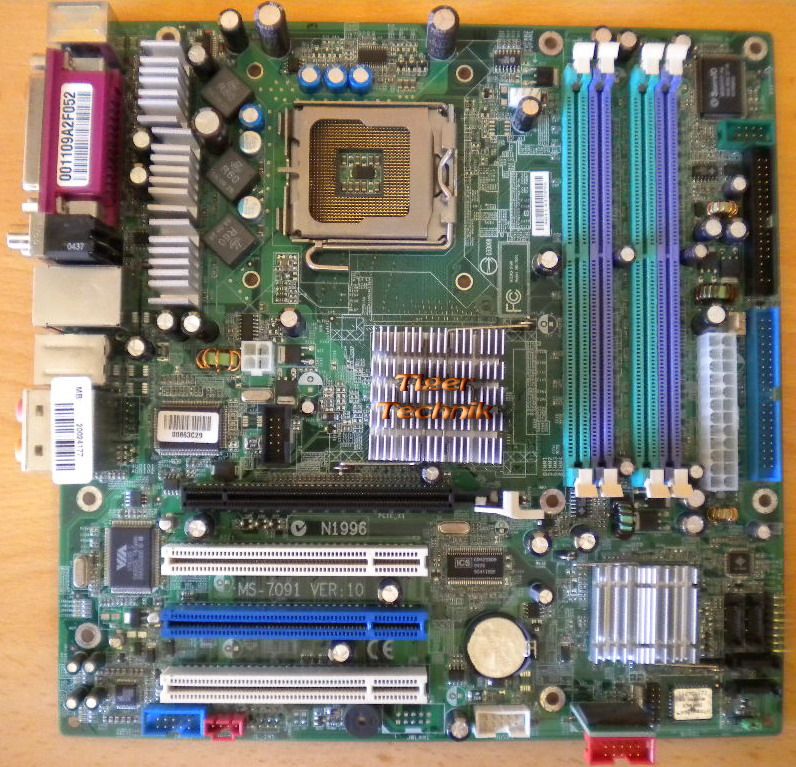

MSI Medion 8383XL Mainboard M-ATX
MS-7091 Ver. 10 Sockel 775 + Blende
Technische Daten:
CPU
Supports Intel Pentium 4 Prescott LGA775 processors in LGA775 package.
Supports up to Pentium 4 3XX, 5XX sequence processor or higher speed.
Supports Intel Hyper-Threading Technology.
Chipset
Intel 915P chipset
- Supports FSB 533/800MHz.
- Supports DDR 400/333 memory interface.
Intel ICH6R chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports.
- 4 Serial ATA ports with transfer rate up to 150 Mbytes/sec.
- 1 channel Ultra ATA 100 bus Master IDE controller.
- PCI Master v2.3, I/O APIC.
- ACPI 2.0 Compliant.
- Serial ATA 150 RAID 0, RAID 1 and Matrix RAID.
- Integrated AHCI controller.
Main Memory
Supports four DDR1 SDRAM memory modules.
Supports up to 4GB memory size.
Supports Dual channel DDR1.
Slots
One PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant).
Three 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface).
- The second PCI slot (PCI2, in blue color) supports 2 master devices.
On-Board IDE
One Ultra DMA 66/100 IDE controllers integrated in ICH6R.
- Supports PIO, Bus Master operation modes.
- Can connect up to Two Ultra ATA drives.
Serial ATA 150 controller integrated in ICH6R.
- Up to 150MB/sec transfer speed.
- Can connect up to four Serial ATA devices.
On-Board Peripherals
On-Board Peripherals include:
- 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 1 serial port
- 1 parallel port supports SPP/EPP/ECP mode
- 8 USB 2.0 / 1.1 ports (Rear*4 / Front*4)
- 1 RJ45 connector
- 1 Rear 1394 port (6 Pins) / 1 Front 1394 port
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
