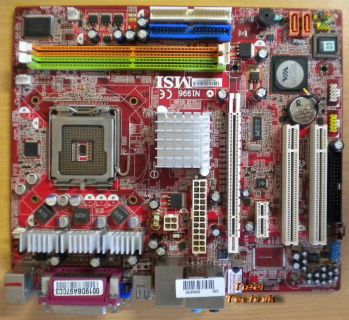

MSI P4M900M2 MS-7255 VER2.2 Mainboard +Blende Sockel 775 PCIe x16 SATA DDR2*m498

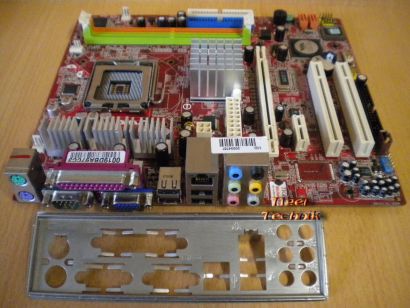

MSI MS-7255 VER 2.2 Mainboard mit Blende

Technische Daten

CPU

• Supports Socket 775 for Intel® P4 3xx/ 5xx/ 6xx/ Pentium D, Celeron D, Core 2 Duo processors.

• Supports FSB 1066/800/533MHz.

• Supports 3/4 pin CPU Fan Pin-Header with Fan Speed Control.

• Supports EIST Technology

• Supports Hyper-Threading (HT) Technology

* we recommend to use processors with 95W power consumption.

Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• VIA® P4M900 Chipset

- Supports P4 processor FSB 1066/800/533MHz

- Supports DDR2 667/533/400 memory

• VIA® VT8237A Chipset

- Ultra DMA 33/66/100/133 master mode.

- ACPI & PC2001 compliant enhanced power management.

- Supports USB 2.0 up to 8 ports.

Main Memory

• Supports two unbuffered 240-pin DIMM of 1.8 Volt DDR2 SDRAM

• Supports up to 2GB memory size.

• Supports DDR2 400/533/667 memory interface.

Slots

• One PCI Express x 16 slot & one PCI Express x 1 slot.

• Two PCI 2.2 32-bit PCI bus slots (support 3.3V/5V PCI bus interface).

On-Board IDE

• An IDE controller on the VT8237A chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 133/100/66/33 operation modes.

- Can connect up to four IDE devices.

• Serial ATA controller integrated in VT8237A.

- Up to 1.5Gb/sec transfer rate. (VT8237A)

- Can connect up to 2 Serial ATA drives.

Audio

• Chip integrated by Realtek® ALC883

- Flexible 8-channel audio with jack sensing

- Compliant with Azalia 1.0 spec.

LAN

• Supports 10/100 Fast Ethernet by Realtek RTL8201CL

Internal I/O Connectors

- ATX 24-Pin power connector

- 4-pin ATX 12V power connector

- CPU / Power /System fan connectors

- CD-in connector

- Clear CMOS jumper

- Chassis intrusion switch connector

- 1 x SPDIF-out connector

- Serial port connector (JCOM2)

- 2 x USB 2.0 connector support additional 4 ports

- Front panel audio connector

- Front panel connectors

- 1 x Floppy disk drive connector

- 2 x Ultra DMA 133 IDE device connectors

- 2 x Serial ATA device connectors

Back Panel I/O Ports

- 1 x Parallel

- 1 x Serial port (COM 1)

- 1 x PS/2 Keyboard

- 1 x PS/2 Mouse

- 1 x Audio I/O (6 in 1)

- 4 x USB 2.0

- 1 x RJ45 LAN jack

- 1 x Graphics Card port

BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.

• The motherboard provides a Desktop Management Interface (DMI) function which records your motherboard specifications.

Dimension

• 24.4 cm(L) x 21.0 cm(W) M-ATX Form Factor

Mounting

• 6 mounting holes.

Lieferumfang

Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
