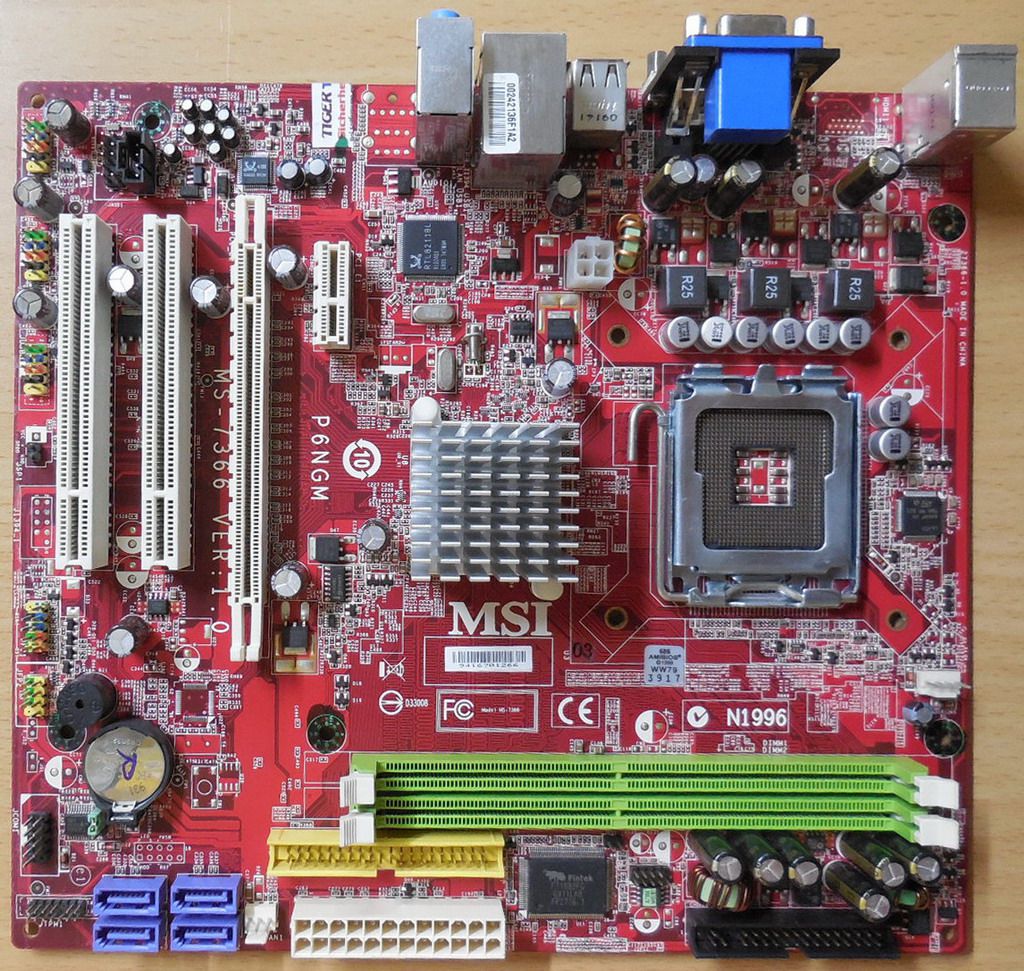

MSI P6NGM MS-7366 Ver 1.0 Mainboard +Blende Sockel 775 DDR2 DVI VGA PCIe* m977

MSI P6NGM MS-7366 Ver 1.0 Mainboard + Blende Sockel 775 DDR2 DVI VGA PCIe

Technische Daten

Model

Hyrican PC PCK03324 OEM (EAN 4045643033240)

Processor Support

Supports Intel® Core 2 Quad, Core 2 Duo, Pentium, Celeron processors in the LGA775 package. (For the latest information about CPU, please visit the MSI Website)

Supported FSB

Supports FSB up to 1333 MHz

Chipset

Nvidia MCP73PV chipset

Memory Support

DDR2 533/667/800 SDRAM (240pin/ non-ECC)

2 x DDR2 DIMMs (Max. 4GB)

(For more information on compatible components, please visit the MSI Website)

LAN

Supports LAN 10/100/1000 Fast Ethernet by Realtek® RTL 8211BL

Audio

Chip integrated by Realtek® ALC888

Compliant with Azalia 1.0 Spec

IDE

1 x IDE port by MCP73PV; Supports Ultra DMA 66/100/133, PIO & Bus Master operation mode

SATA

4 x SATAII ports support 4 SATA devices

RAID

SATA1~4 support RAID 0, 1, 5 ,0+1, JBOD

Floppy

1 x Floppy port; Supports 1 FDD with 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB

Back Panel

1 x PS/2 mouse port

1 x PS/2 keyboard port

1 x VGA port

1 x DVI port

4 x USB 2.0 Ports

1 x LAN jack

3 x audio jacks

On-Board Pinheaders

3 x USB 2.0 pinheaders

1 x Chassis Intrusion Switch pinheader

1 x Serial port pinheader

1 x SPDIF-Out pinheader

1 x Front Panel Audio pinheader

1 x Front Panel header

1 x CD-In pinheader

1 x TPM pinheader

1 x 4-pin CPU FAN connector

1 x 3-pin System FAN connector

Slots

1 x PCI Express x16 slot

1 x PCI Express x1 slot

2 x PCI slots, support 3.3V/ 5V PCI bus Interface

Form Factor

micro-ATX (24.4cm X 22.0cm)

Mounting

6 mounting holes

Lieferumfang

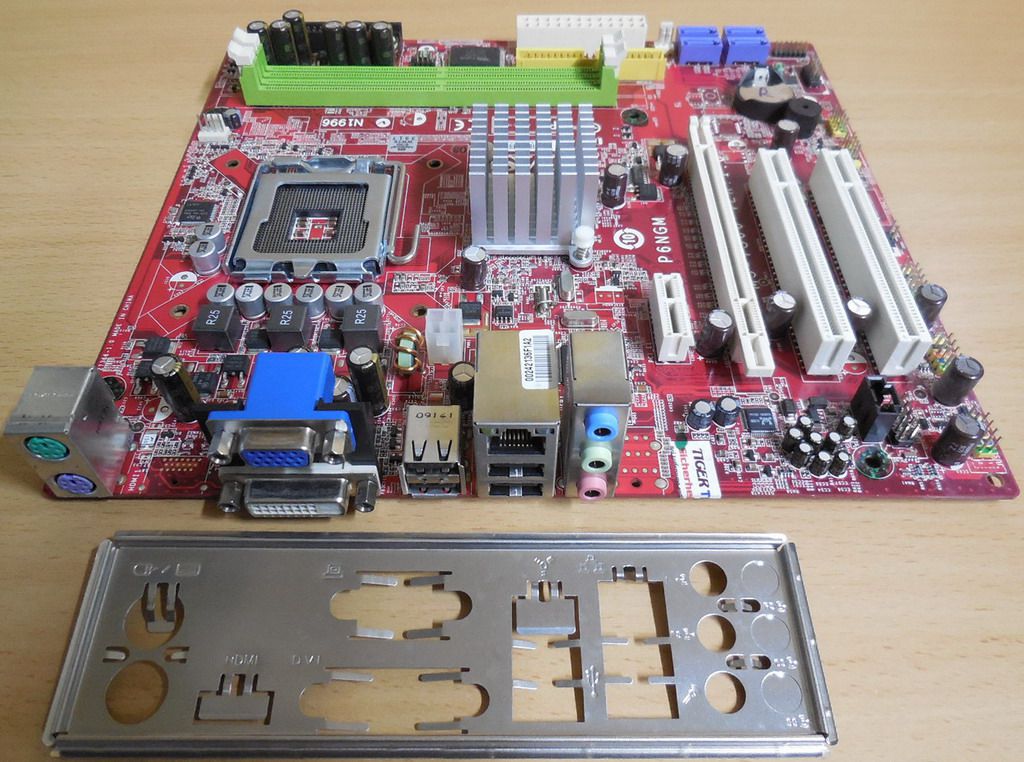

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
