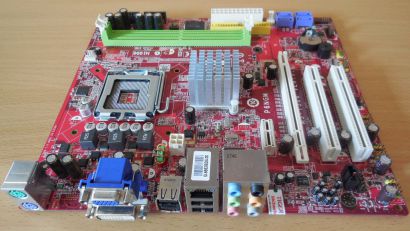

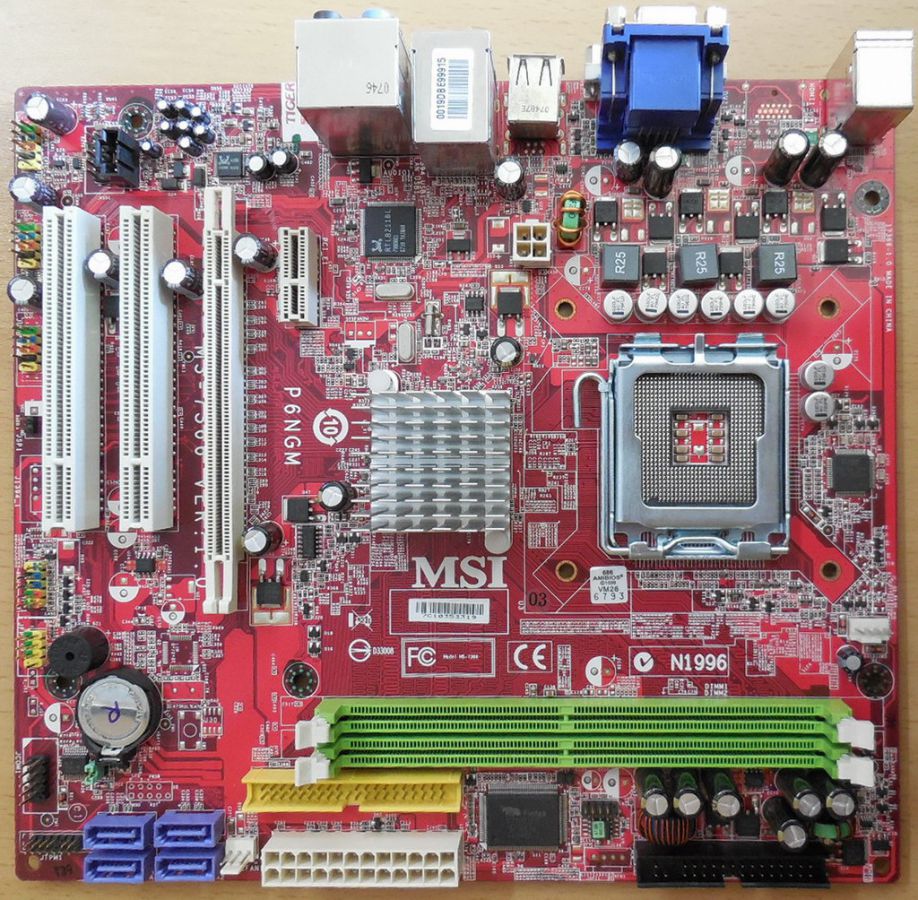

MSI P6NGM MS-7366 Ver1.0 Mainboard Sockel 775 PCIe SATA DDR2 7.1ch DVI VGA* m806

MSI P6NGM MS-7366 VER 1.0 Mainboard Sockel 775 PCI-E 16x SATA DDR2 7.1ch DVI VGA

Technische Daten

Processor Support

Supports Intel® Core 2 Quad, Core 2 Duo, Pentium, Celeron processors in the LGA775 package. (For the latest information about CPU, please visit the MSI Website)

Supported FSB

Supports FSB up to 1333 MHz

Chipset

Nvidia MCP73U/PV chipset

Memory Support

DDR2 533/667/800 SDRAM (240pin/ non-ECC) (for 73U/PV)

2 x DDR2 DIMMs (Max. 4GB)

(For more information on compatible components, please visit the MSI Website)

LAN

Supports LAN 10/100/1000 Fast Ethernet by Realtek® RTL 8211BL

Audio

Chip integrated by Realtek® ALC888

Supports 7.1 channels audio out

Compliant with Azalia 1.0 Spec

IDE

1 x IDE port by MCP73U/PV; Supports Ultra DMA 66/100/133, PIO & Bus Master operation mode

SATA

4 x SATAII ports support 4 SATA devices

RAID

SATA1~4 support RAID 0, 1, 5 ,0+1, JBOD

Floppy

1 x floppy port; Supports 1 FDD with 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB

Back panel

1 x PS/2 mouse port

1 x PS/2 keyboard port

1 x VGA port

1 x DVI port

4 x USB 2.0 Ports

1 x LAN jack

6 x audio jacks

On-Board Pinheaders

3 x USB 2.0 pinheaders

1 x Chassis Intrusion Switch pinheader

1 x Serial port pinheader

1 x SPDIF-Out pinheader

1 x Front Panel Audio pinheader

1 x Front Panel header

1 x CD-In pinheader

1 x TPM pinheader

1 x CPU FAN connector

1 x System FAN connector

Slots

1 x PCI Express x16 slot

1 x PCI Express x1 slot

2 x PCI slots, support 3.3V/ 5V PCI bus Interface

Form Factor

M-ATX (24.4cm X 22.0cm)

Mounting

6 mounting holes

Lieferumfang

Nur das Mainboard ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
