Produktbeschreibung

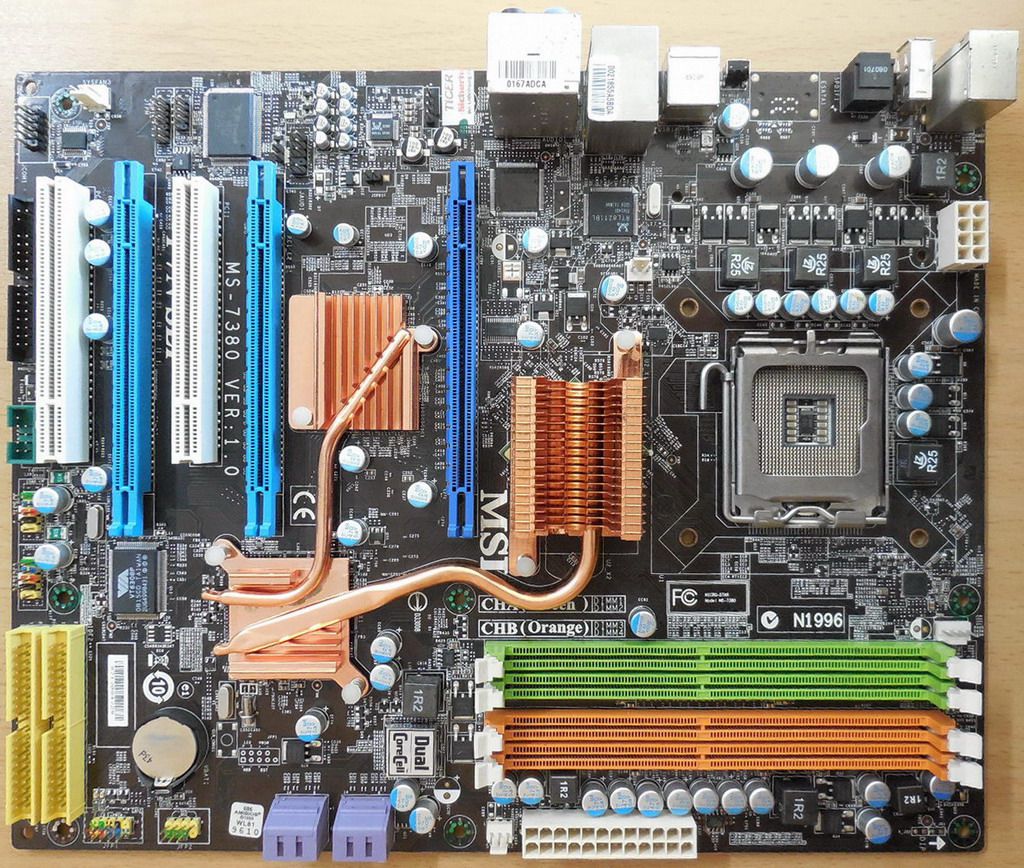

MSI P7N SLI MS-7380 Ver 1.0 Mainboard + Blende Intel Sockel 775 PCIe DDR2 SATA
Technische Daten
Prozessor / CPU
Supports Socket 775 for Intel® Core 2 Extreme, Core 2 Quad, Core 2 Duo, P4, P4EE, Pentium D, Pentium XE processors.
Supports FSB 1333/1066/800/533MHz.
Supports EIST technology; Supports Intel® Hyper-Threading technology
Please refer to the CPU Support list for compatible CPU´s; the above description is for reference only.
Chipsatz
NVIDIA® nForce 750i SLI (C72P) Chipset; NVIDIA® nForce 430i (MCP51) Chipset
Arbeitsspeicher
Supports dual channel DDR2 533/667/800, using four 240-pin/1.8V DDR2 DIMMs
Supports a maximum memory size up to 8GB
Erweiterungsschächte
Three PCI Express x16 slots
- the mazarine slot PCI Express x 16 slot (PCI_E1) supports PCIE 2.0 x 16 mode.
- the two light-blue PCI Express x 16 slots (PCI_E2 & PCI_E3) support PCI Express x 8 mode only.
- supports SLI technology.
Two 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface)
On-Board IDE
An IDE controller on the NVIDIA® nForce430i chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA133/100/66 operation modes. Can connect up to 4 IDE devices.
On-Board SATA
nForce 430i supports 4 SATA II ports (SATA 1 to 4). Transfer rate is up to 3Gb/s.
NV RAID - 4 SATA ports support RAID 0, 1, 0+1, 5 or JBOD is supported
LAN
Supports 10/100/1000 Fast Ethernet by Realtek® RTL8211BL
Audio
Chip integrated by Realtek® ALC888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 spec.
IEEE1394
VIA® VT 6308P chipset; Transfer rate is up to 400Mbps
Anschlüsse (Rückseite)
1 x Clear CMOS button; 1 x PS/2 Keyboard; 1 x PS/2 Mouse; 1 x Optical SPDIF out; 1 x 6in1 Audio jack; 1 x IEEE1394 port; 4 x USB 2.0 ports; 1 x RJ45 LAN Jack
interne Anschlüsse
- ATX 24-Pin power connector
- 8-pin ATX 12V power connector
- CPU / 3 x System FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x IEEE1394 connector
- 2 x USB 2.0 connector support additional 4 ports
- 1 x Floppy disk drive connector
- 4 x serial ATA connectors
- 1 x serial port connector
- SPDIF-out connector
- 1 x TPM module connector
- 2 x ATA133 connectors
- Chassis intrusion switch connector
- Clear CMOS button
BIOS
The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and
expansion cards of the board automatically. The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension
30.4cm(L) x 24.5cm(W) ATX Form Factor
Mounting
9 mounting holes
Lieferumfang
Das Mainboard inkl. Blende * Ohne weiteres Zubehör * gebraucht
Abbildung ähnlich
