Produktbeschreibung

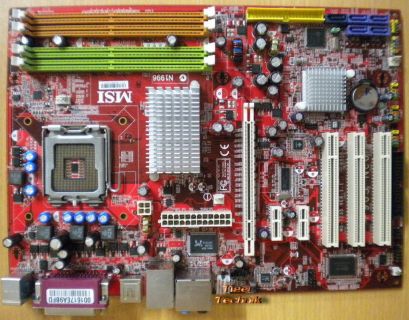

MSI MS-7235 VER 1.1 Mainboard mit Blende
Technische Daten
CPU
• Supports Socket 775 for Intel® Pentium 4 3xx, 5xx, 6xx, 8xx, 9xx processors.
• Supports FSB 1066/800 MHz
• Supports EIST technology
• Supports Intel® Hyper-Threading technology.
• Supports Intel® Dual Core Technology up to 1066 MHz.
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
• Intel® P965 Chipset
- Supports FSB 800/1066MHz.
- Supports PCI Express x 16 graphics interface.
- Supports dual channel, DDRII 533/667/800
• Intel® ICH8 Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports.
- 4 SATAII ports with transfer rate up to 300MB/s.
- PCI Master v2.3, I/O APIC.
- ACPI 2.0 compliant.
Main Memory
• Supports four unbuffered DIMM of 1.8 Volt DDRII SDRAM
• Supports up to 8GB memory size (DDRII 533/667).
• Supports up to 4GB memory size (DDRII 800).
• Supports dual channel DDRII memory architecture.
• Supports DDRII 533/667/800 memory interface.
Slots
• One PCI Express x16 slot. (supports PCI Express Bus specification v1.0a compliant)
• Two PCI Express x1 slots. (supports PCI Express Bus specification v1.0a compliant)
• Three PCI 2.3 32-bit PCI bus slots (support 3.3V/5V PCI bus interface).
On-Board IDE/SATA
• One Ultra DMA 66/100/133 IDE controller integrated in JMicron® JMB361.
- Supports PIO, Bus Master operation modes.
- Supports Ultra DMA 66/100/133 mode..
• SATAII controller integrated in ICH8/JMicron JMB361
- Up to 300MB/sec transfer speed.
- 4 SATAII ports by ICH8.
- 1 SATAII port by JMicron JMB361.
Audio
• High Definition link controller integrated in Intel® ICH8 chip.
• Audio codec Realtek® 883.
- Compliant with Azalia 1.0 spec.
- Flexible 8-channel audio with jack sensing.
LAN
• Realtek® RTL8110SC
- Supports 10/100/1000 Mb/s.
- Compliane with PCI 2.2.
- Supports ACPI Power Management.
Internal I/O Connectors
- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- CPU / System / Power connectors
- CD-in connector
- Clear CMOS jumper
- Chassis intrusion switch connector
- IrDA infrared module header
- Serial port connector
- Front panel audio connector
- Front panel connector
- 3 x USB 2.0 connector support additional 6 ports
- 1 x Floppy disk drive connector
- 5 x Serial ATAII connectors
- 1 x ATA133 connector
Back Panel I/O Ports
- 1 x Parallel port
- 1 x Serial port (COM 1)
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x 6 in 1 audio jack
- 4 x USB 2.0 ports
- 1 x RJ45 LAN jack
BIOS
• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension
• 30.5cm(L) x 22.0cm(W) ATX Form Factor
Mounting
• 6 mounting holes.
Lieferumfang
MSI Mainboard + Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
