MSI PM8M3-V H MS-7211 Ver4.1 Mainboard +Blende Sockel 775 AGP8X SATA 5.1Aud*m548

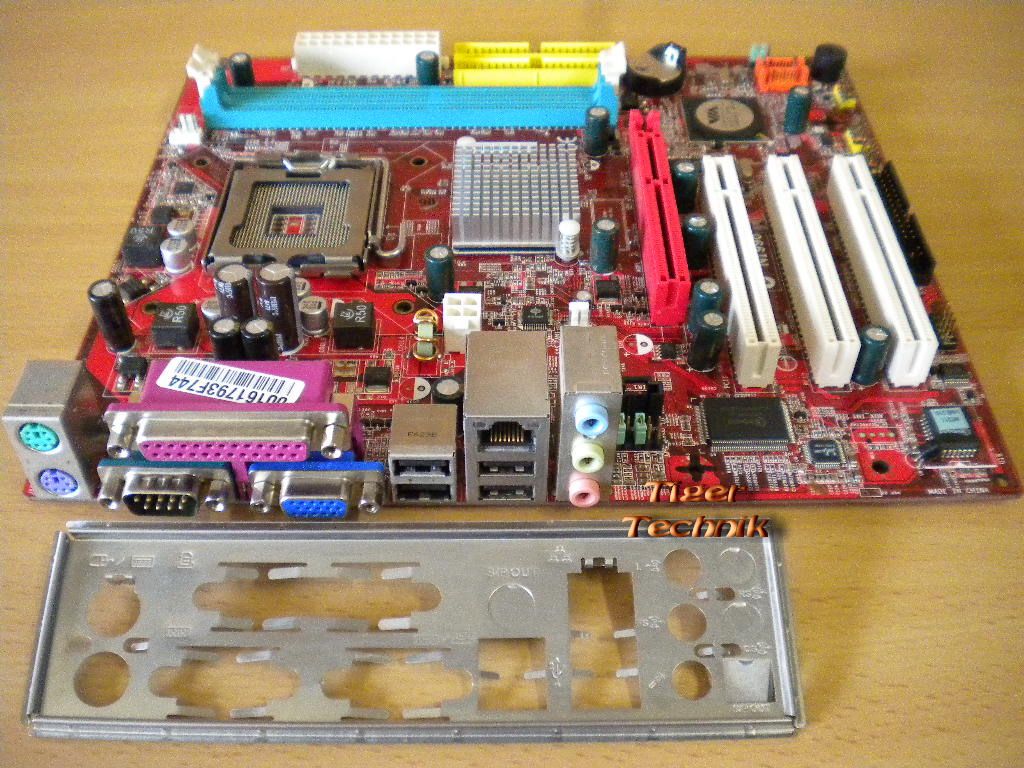

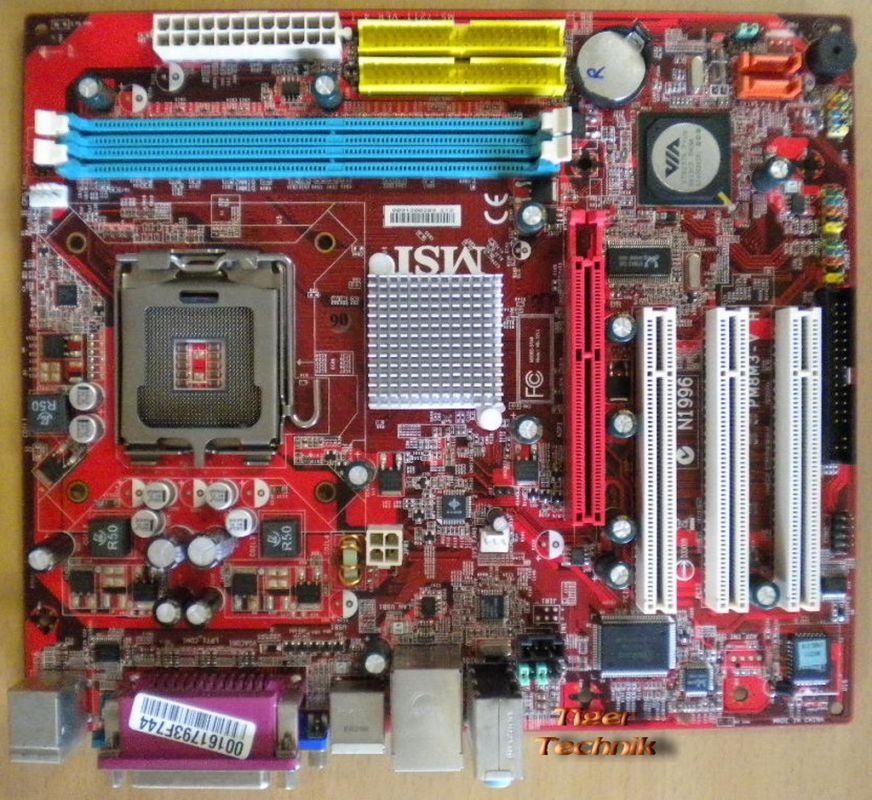

MSI PM8M3-V H MS-7211 Ver: 4.1 Mainboard mit Blende

Technische Daten

CPU

• Supports Intel® Pentium® 4/ Prescott (LGA 775) processor.

• FSB @ 800/533MHz.

• Supports Intel P4 Prescott CPU up to 3.2GHz, and Intel P4 Prescott Celeron CPU.

(For the latest information about CPU, please visit http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )

Chipset

• VIA® P4M800CE chipset

- P4 processors FSB (800MHz).

- DDR SDRAM memory (333/400MHz).

- AGP 8x.

- Supports 8X V-Link.

• VIA® VT8237R plus chipset

- Integrated Hardware Sound Blaster/Direct Sound AC97 audio

- Ultra DMA 66/100/133 master mode PCI EIDE controller

- ACPI & PC2001 compliant enhanced power management

- Supports USB2.0 up to 8 ports

Main Memory

• Supports two memory banks using two 184-pin DDR DIMM.

• Supports up to 2GB PC3200 (DDR400) SDRAMs.

• Supports 2.5v DDR SDRAM.

(For the updated supporting memory modules, please visit http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )

Slots

• One AGP (Accelerated Graphics Port) 8x slot.

• Three PCI 2.2 32-bit PCI bus slots (support 3.3v/5v PCI bus interface).

On-Board IDE

• An IDE controller on the VIA VT8237R plus Chipset provides IDE

• HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100/133 operation modes.

• Can connect up to four IDE devices.

Audio

• AC97 link controller integrated in VT8237R plus.

• Realtek® ALC655 6-channel software audio codec.

- Compliance with AC’97 v2.2 spec.

LAN

• Realtek® 8201CL

- Supports 10Mb/s and 100Mb/s

- Compliance with PCI 2.2.

- Supports ACPI Power Management.

On-Board Peripherals

• On-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

- 1 serial port (COM1)

- 1 parallel port supports SPP/EPP/ECP mode

- 8 USB 2.0 ports (Rear * 4/ Front * 4)

- 1 audio (Line-In/Line-Out/Mic) port

- 1 RJ45 LAN jack

- 1 VGA port

- 1 COM2 pin header

- 2 SATA 150

BIOS

• The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.

• The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.

Dimension

• Micro-ATX Form Factor: 245mm x 210mm

Mounting

• 6 mounting holes.

Lieferumfang

Das Mainboard + Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
