Intel Core 2 Duo / Intel Dual-Core E2000 series / Celeron D 400 series Support 533/800/1066 MHz FSB
Chipset
Intel 945GC + ICH7
Onboard VGA
Intel GMA 950 256bit 3D engine with a powerful 400MHz core and DirectX 9 3D hardware acceleration Dynamic Video Memory Technology(DVMT)3.0 supports up to 224MB of Video memory
Memory
2 x 240 pin DDR2 DIMM Slots, 1GB per DIMM (Max 2GB) Dual Channel DDR2 533/667MHz supported
Audio
Realtek ALC662 5.1 Channel High Definition audio
Ethernet
Marvell 88E8056 IEEE 802.3u 100Base-T specification compliant 10MB/s,100MB/s,1GB/s Support Wake-On-LAN function
Storage Interface
UltraDMA100 IDE channel Master from ICH7 On-board SATA
OnBoard Connectors
2 x SATA connectors 1 x ATA100 bus master IDE connector 1 x ATX main power connector 1 x ATX 12V power connector 2 x 4pin fan connectors
Front Panel
Power-On button
Back Panel
1 x PCI slot 1 x PS/2 keyboard 1 x PS/2 Mouse 1 x Gigabit LAN port 1 x Serial port 1 x D-sub port 4 x USB 2.0 ports 1 x Front out connector 1 x Rear Surround out connector 1 x Center / Bass connector 1 x Printer port 1 x Wireless port perforation
Lieferumfang
Das Mainboardinkl. Blendeohne weiteres Zubehör * gebraucht *

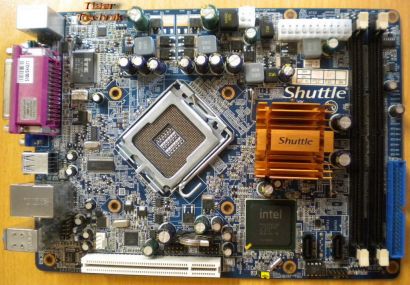

Abbildung ähnlich
Herstellerangabe / Produktsicherheit
Alle unsere hier angebotenen Produkte sind erstmalig vor dem 13.12.2024 in der EU in Verkehr gebracht worden und entsprechen den aktuellen Sicherheitsstandards. Sie unterliegen nicht den neuen Anforderungen der GPSR.
