Produktbeschreibung

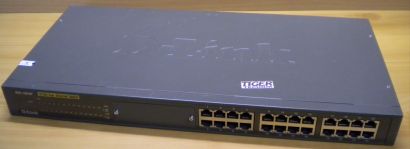

D-Link DES-1024R+ 10 100Mbps 24port
Fast Ethernet Netzwerk Switch
Technische Daten
Standards
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3u 100BASE-FX Fast Ethernet
- ANSI/IEEE 802.3 NWay auto-negotiation
- IEEE 802.3x Flow Control
Protocol
CSMA/CD
Data Transfer Rates
- Ethernet:
10Mbps (half duplex)
20Mbps (full duplex)
- Fast Ethernet:
100Mbps (half duplex)
200Mbps (full duplex)
Topology
Star
Network Cables
- 10BASE-T:
2-pair UTP Cat. 3, 4, 5 (100 m)
EIA/TIA-568 100-ohm STP (100 m)
- 100BASE-TX:
2-pair UTP Cat. 5 (100 m)
EIA/TIA-568 100-ohm STP (100 m)
- 100BASE-FX:
Multi-mode (62.5/125 um or 50/125 um fiber cabling with SC
connector)
Number of Built-in Ports

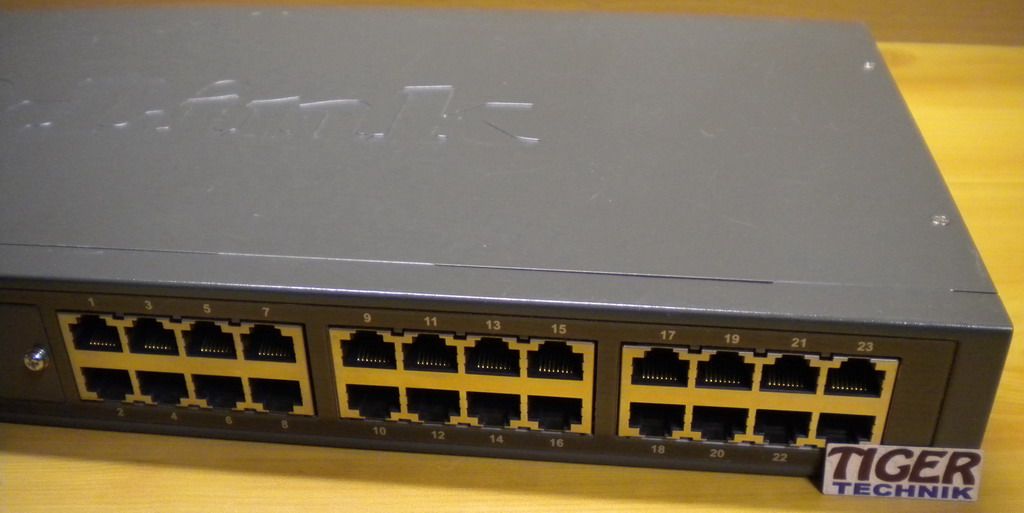

- DES-1024R+: 10/100Mbps port x 24
Media Interface Exchange
Auto-negotiation of MDI-II/MDI-X for all 10/100Mbps ports
Twisted-pair Rx Reverse Polarity
Auto-correction
LED Report
Per device:
- Power
Per 10/100Mbps port:
- 100Mbps speeds
- Link/activity
Transmission Method
Store-and-forward
MAC Address Table
4K entries per device
Packet Filtering Rates
- Ethernet: 14,880 pps per port (half-duplex)
- Fast Ethernet: 148,800 pps per port (half-duplex)
Packet Forwarding Rates
- Ethernet: 14,880 pps per port (half-duplex)
- Fast Ethernet: 148,800 pps per port (half-duplex)
RAM Buffer
256KB per 8 ports
Flow Control
- IEEE 802.3x flow control per 10/100Mbps port in full duplex
- Back pressure per 10/100Mbps port in half duplex

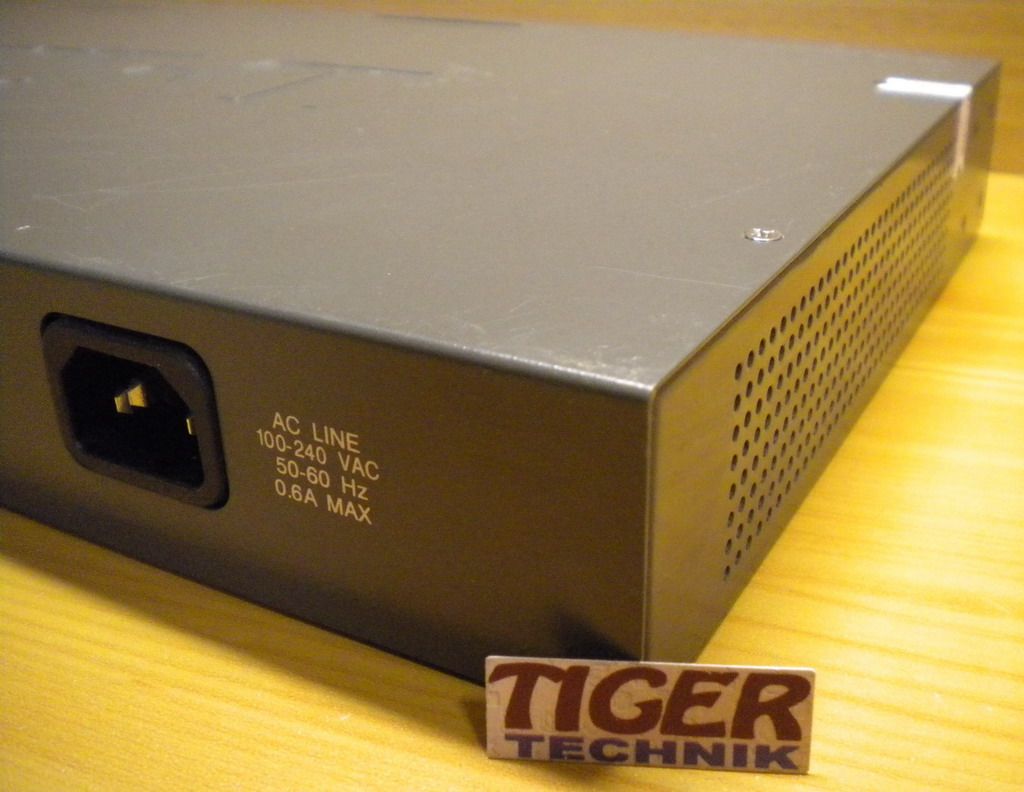

AC Input
100 - 240 V
AC, 50/60 Hz
Internal universal power supply
Power Consumption
39 watts (max.)
Ventilation
12V - 0.09A DC fan x 1
Operating Temperature
0 - 50 C (32 - 122 F)
Storage Temperature
-30 - 60 C (-22 - 140 F)
Humidity
5% - 95% non-condensing
Dimensions
441 x 207 x 44 mm
(17.4 x 8.15 x 1.732 inches)
19-inch rack-mount width, 1 U height
Weight
2.65 kg (5.84 lb.), 2.7 kg (with DES-102F module)
Emission (EMI)
- FCC Class A
- CE Class A
- C-Tick
- VCCI Class A
- BSMI Class A
Safety
- UL (UL1950)
- CSA (CSA950)
Lieferumfang
Switch - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
Herstellerangabe / Produktsicherheit
Alle unsere hier angebotenen Produkte sind erstmalig vor dem 13.12.2024 in der EU in Verkehr gebracht worden und entsprechen den aktuellen Sicherheitsstandards.
Sie unterliegen nicht den neuen Anforderungen der GPSR.
