Produktbeschreibung

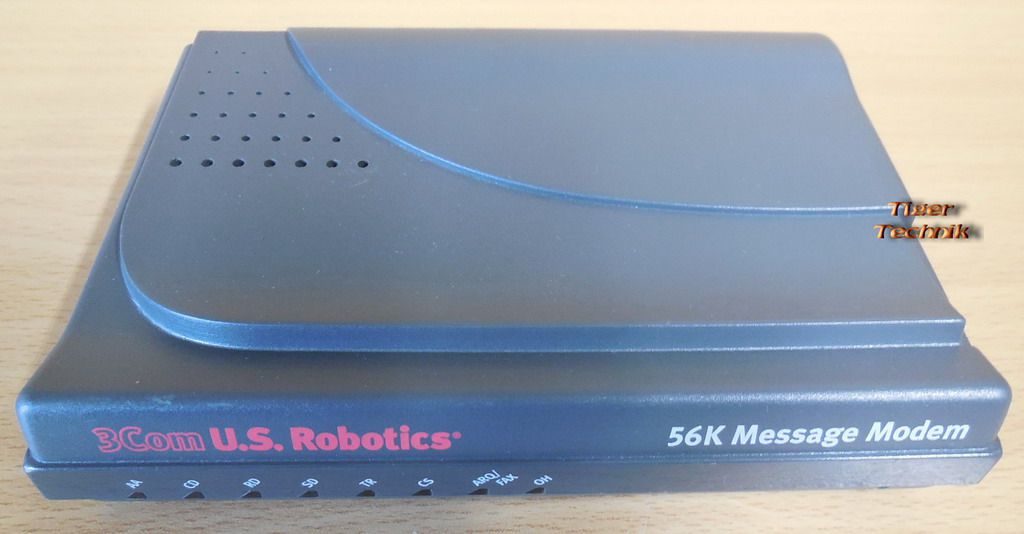

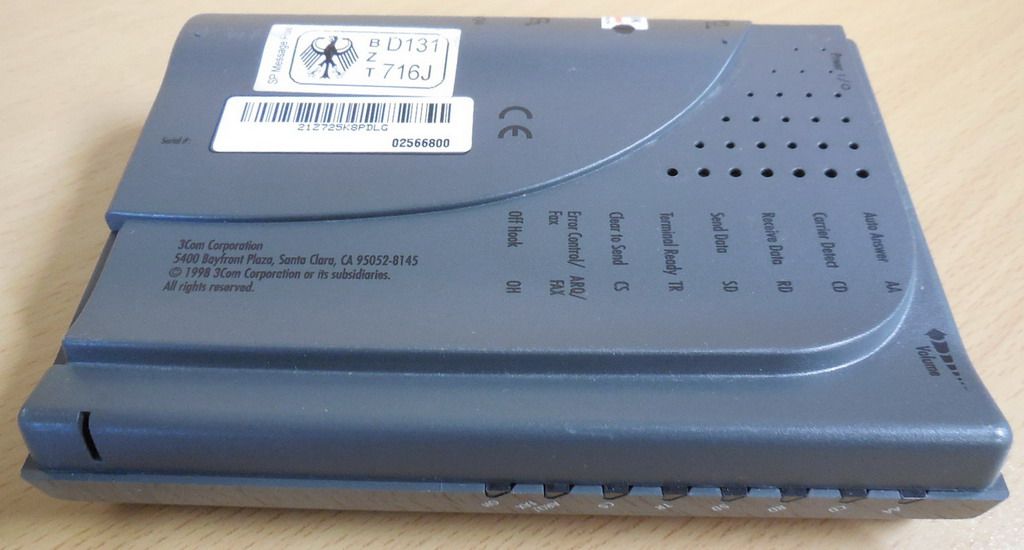

U.S.Robotics 56K Analog Faxmodem Sportster Message Plus seriell 1x RJ-11 1x DB25
- is a feature-enhanced external modem with added FlashMemory
- provides the full functionality of a standard Sportster modem
- retains incoming fax and voice messages and therefore is not just a pass through device
- is capable of receiving and storing incoming fax and voice messages without any DTE(Data Terminal Equipment) intervention
- can transfer stored messages to the DTE(Data Terminal Equipment) at a later time
- enables remotely stored voice messages to be accessed through a dialup connection
- offers a voice channel feature that includes a built-in condenser microphone
Modulation Schemes
x2 technology; ITU-T V.34+; ITU-T V.34; ITU-T V.32bis; ITU-T V.32; ITU-T V.23; ITU-T V.22bis; ITU-T V.22; Bell 212A; ITU-T V.21; Bell 103
Error Control and Data Compression Schemes
ITU-T V.42; ITU-T V.42bis; MNP 2-5
Fax Modulation Schemes
ITU-T V.17; ITU-T V.29; ITU-T V.27ter; ITU-T V.21
Fax Standards
EIA 578 Class 1 FAX; EIA 592 Class 2.0 FAX
Front Channel Link Rates
33333, 37333, 41333, 42666, 44000, 45333, 46666, 48000, 49333,50666, 52000, 53333, 54666, 56000
Back Channel Link Rates
14400, 16800, 19200, 21600, 24000, 26400, 28800, 31200
V.34+ Link Rates
4800, 7200, 9600, 12000, 14400, 16800, 19200, 21600, 24000,26400, 28800, 31200, 33600
V.32bis Link Rates
4800, 7200, 9600, 12000, 14400
Additional Link Rates
300, 1200/75 (V.23), 1200, 2400
Fax Link Rates
2400, 4800, 7200, 9600, 12000, 14400
Lieferumfang
Nur das Modem * Ohne Netzteil oder weiteres Zubehör * gebraucht *
Abbildung ähnlich
