QNAP TS-869 Pro NAS 8-Bay SATA III HDD Netzwerk Speicherserver Gigabit LAN*NAS02

CPU

Intel® Atom™ 2.13GHz Dual-core Processor

DRAM

1GB RAM (Expandable RAM, up to 3GB)
NOTE:
1. The system memory can be increased to 3GB by installing an additional 1GB/2GB SO-DIMM RAM module.
2. For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide

Flash Memory

512MB DOM

Hard Disk Drive

8 x 3.5" or 2.5" SATA 6Gb/s, SATA 3Gb/s hard drive or SSD
NOTE:
1. The system is shipped without HDD.
2. For the HDD compatibility list, please visit Compatibility list.

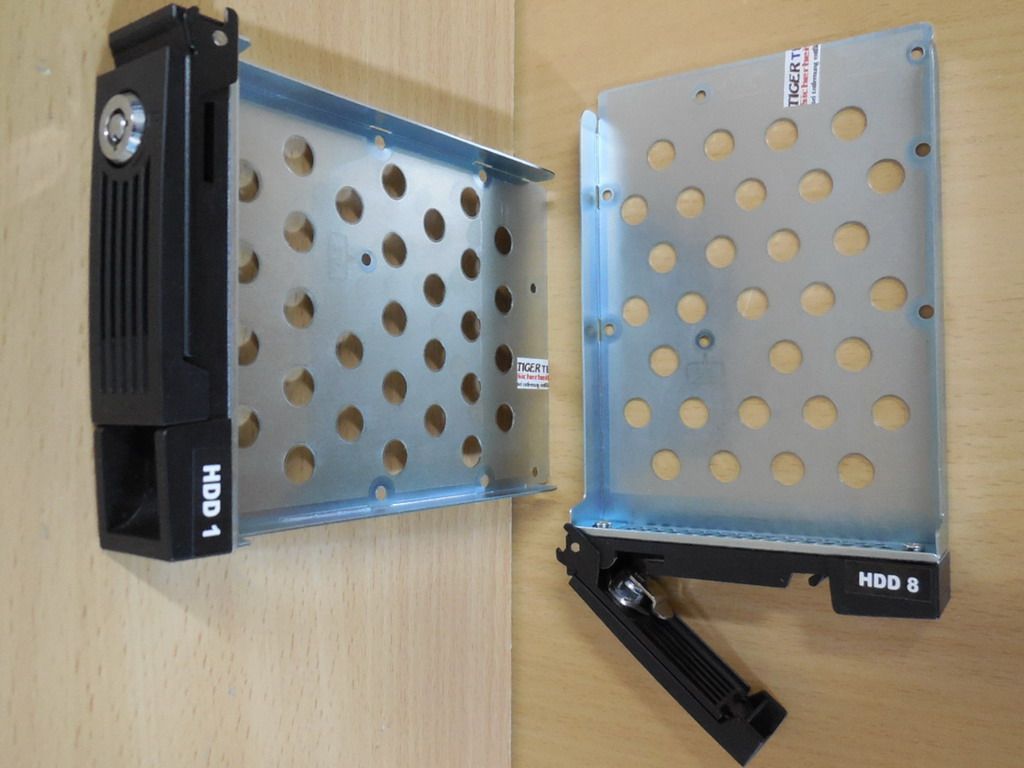

Hard Disk Tray

8 x Hot-swappable and lockable tray

Porta LAN

2 x Gigabit RJ-45 Ethernet port

LED Indicators

Status, LAN, USB, eSATA, Power, HDD 1, HDD 2, HDD 3, HDD 4, HDD 5, HDD 6, HDD 7, HDD 8

USB

2x USB 3.2 Gen 1 port (Back: 2)
5x USB 2.0 port (Front: 1; Back: 4)
Support USB printer, pen drive, USB hub, and USB UPS etc.

eSATA

2 x eSATA port (Back)

Buttons

System: Power button, USB One-Touch-Backup Button, Reset button

LCD panel

Mono-LCD display with backlight
Enter button, Select button for configuration

Alarm Buzzer

System warning

Form Factor

Tower

Dimensions

185.2 (H) x 298.2 (W) x 235.4 (D) mm; 7.29 (H) x 11.74 (W) x 9.27 (D) inch

Weight

Net weight: 7.3 kg (16.08 lbs)

Sound Level (dB)

HDD sleep: 18.7 dB
In operation: 27.5 dB

Power Consumption (W)

Sleep mode: 30W
In Operation: 59W
Power-off (in WOL mode): 1W

Temperature

0-40˚C

Humidity

5~95% RH non-condensing, wet bulb: 27˚C.

Power Supply

Input: 100-240V AC, 50/60Hz, Output: 350W

Secure Design

K-lock security slot for theft prevention

VGA

Reserved VGA interface for maintenance

HDMI™

v1.3

IR Receiver

Compatible with either QNAP RM-IR001 or MCE remote controls

Fan

2 x quiet cooling fan (12 cm, 12V DC)
