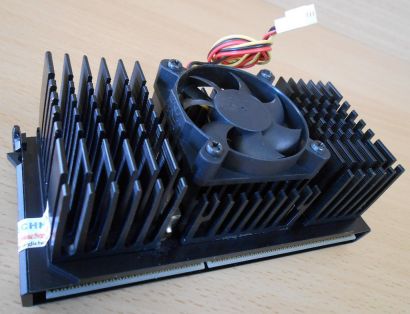

CPU Prozessor AMD Athlon 700 MHz AMD-K7700MTR51B A

CPU Prozessor AMD Athlon 700 MHz AMD-K7700MTR51B A

FSB200 512KB Slot A

Technische Daten
Type	CPU / Microprocessor
Market segment	Desktop
Family	AMD Athlon
CPU part number	AMD-K7700MTR51B A is an OEM/tray microprocessor
Frequency	700 MHz
Bus speed	200 MHz
Clock multiplier	7
Package	Card Module
Socket	Slot A
Architecture / Microarchitecture
Microarchitecture	K7
Processor core	Pluto (Model 2)
Manufacturing process	0.18 micron
Die	102mm2
Data width	32 bit
The number of CPU cores	1
The number of threads	1
Floating Point Unit	Integrated
Level 1 cache size	64 KB 2-way set associative code cache; 64 KB 2-way set associative data cache
Level 2 cache size	512 KB backside cache running at 350 MHz
Multiprocessing	Uniprocessor
Features	MMX instructions; Extensions to MMX; 3DNow! technology; Extensions to 3DNow!
Low power features	Halt state; Stop Grant states; Sleep state; Probe state
Electrical / Thermal parameters
V core	1.6V ± 0.1V
Minimum/Maximum operating temperature	0°C - 70°C
Minimum/Typical/Maximum power dissipation	6 Watt (Stop Grant mode) / 34 Watt / 39 Watt
Notes on AMD Athlon 700 MHz
Actual bus frequency is 100 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 200 MHz.
