754-pin lidded microPGA 1.57" x 1.57" (4 cm x 4 cm)
Socket
Socket 754
Architecture / Microarchitecture
Microarchitecture
K8
Processor core ?
ClawHammer
Core stepping ?
SH-CG
CPUID
F4A
Manufacturing process
0.13 micron silicon-on-insulator (SOI) technology
Data width
64 bit
The number of CPU cores
1
The number of threads
1
Floating Point Unit
Integrated
Level 1 cache size ?
64 KB 2-way set associative instruction cache 64 KB 2-way set associative data cache
Level 2 cache size ?
1 MB exclusive 16-way set associative cache
Physical memory
1 TB
Virtual memory
256 TB
Multiprocessing
Uniprocessor
Features
MMX instructions
Extensions to MMX
3DNow! technology
Extensions to 3DNow!
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
AMD64 / AMD 64-bit technology ?
EVP / Enhanced Virus Protection ?
Low power features
Halt state
Stop Grant state ?
Cool'n'Quiet technology
Integrated peripherals / components
Integrated graphics
None
Memory controller
The number of controllers: 1 Memory channels: 1 Supported memory: DDR
Other peripherals
One 16-bit HyperTransport link with speeds up to 800 MHz
Electrical / Thermal parameters
V core ?
1.5V
Maximum operating temperature ?
70°C
Thermal Design Power ?
89 Watt

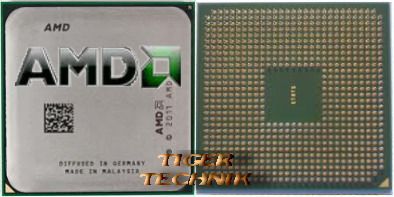

Notes on AMD Athlon 64 3200+ (rev. CG, AR)
In the minimum performance state (P-state) the processor runs at 1000 MHz and 1.1 Volt core voltage. Thermal Design Power in the minimum P-state is 22 Watt
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
