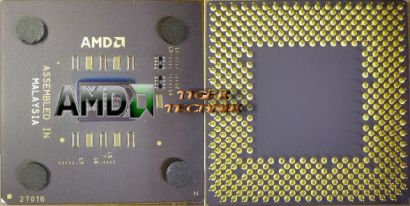

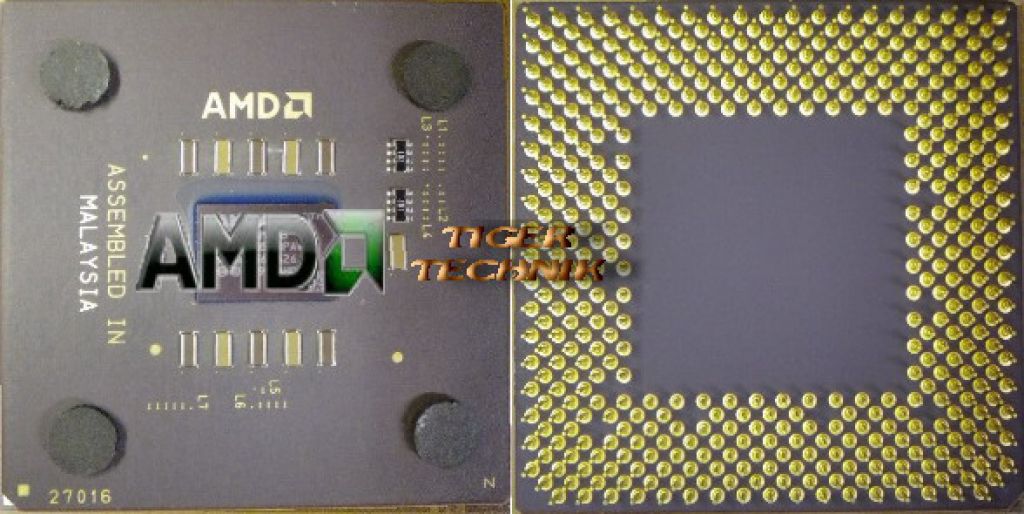

AMD Athlon 1000 MHz A1000AMT3C Prozessor
General information
Type CPU / Microprocessor
Market segment Desktop
Family AMD Athlon
CPU part number A1000AMT3C is an OEM/tray microprocessor
Stepping codes AJFA ARGA ASHHA AVIA AXIA AXIAR AYHJA
Frequency 1000 MHz
Bus speed 266 MHz
Clock multiplier 7.5
Package 453-pin staggered ceramic PGA
1.95" x 1.95" (4.95 cm x 4.95 cm)
AMD Package number 27016
Socket Socket A (Socket 462)
Architecture / Microarchitecture
Microarchitecture K7
Processor core Thunderbird (Model 4)
Manufacturing process 0.18 micron
37 million transistors
Die size 120mm2
Data width 32 bit
The number of cores 1
The number of threads 1
Floating Point Unit Integrated
Level 1 cache size 64 KB 2-way set associative code cache
64 KB 2-way set associative data cache
Level 2 cache size Full-speed on-die 256 KB
Multiprocessing Uniprocessor
Features
MMX instructions
Extensions to MMX
3DNow! technology
Extensions to 3DNow!
Low power features
Halt state
Stop Grant states
Sleep state
Probe state
Electrical / Thermal parameters V core 1.75V ± 0.1V
Minimum/Maximum operating temperature 0°C - 90°C
Minimum/Typical/Maximum power dissipation 5 Watt (Stop Grant mode) / 49.5 Watt / 55.1 Watt
Lieferumfang
CPU A1000AMT3C - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
