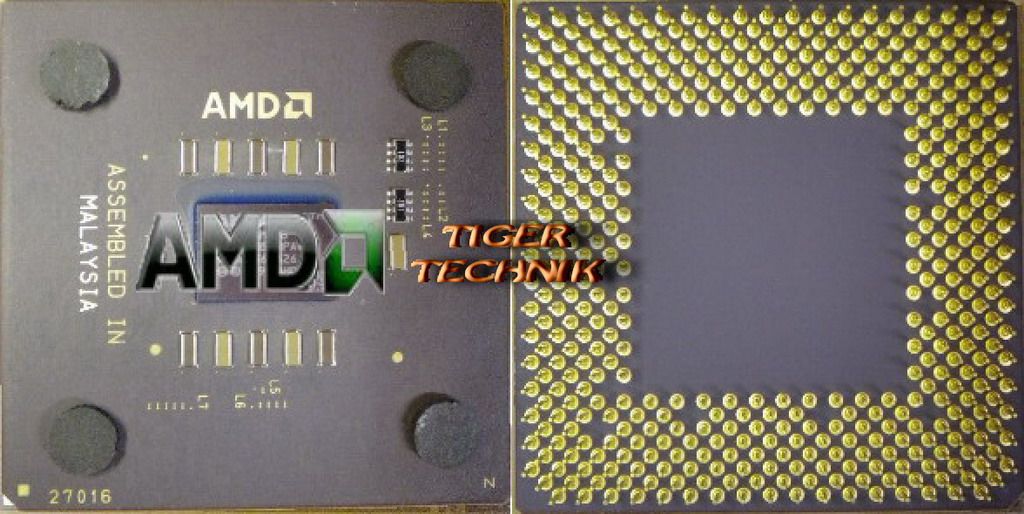

453-pin staggered ceramic PGA 1.95" x 1.95" (4.95 cm x 4.95 cm)
AMD Package number
27016
Socket
Socket A (Socket 462)
Introduction date
6-Jun-01
Price at introduction
$253
Architecture / Microarchitecture
Microarchitecture
K7
Processor core ?
Thunderbird (Model 4)
Manufacturing process
0.18 micron 37 million transistors
Die
120mm2
Data width
32 bit
The number of CPU cores
1
The number of threads
1
Floating Point Unit
Integrated
Level 1 cache size ?
64 KB 2-way set associative code cache 64 KB 2-way set associative data cache
Level 2 cache size ?
Full-speed on-die 256 KB
Multiprocessing
Uniprocessor
Features
MMX instructions
Extensions to MMX
3DNow! technology
Extensions to 3DNow!
Low power features
Halt state
Stop Grant states
Sleep state ?
Probe state
Integrated peripherals / components
Integrated graphics
None
Electrical / Thermal parameters
V core ?
1.75V ± 0.1V
Minimum/Maximum operating temperature ?
0°C - 95°C
Minimum/Typical/Maximum power dissipation
5 Watt (Stop Grant mode) / 64.7 Watt / 72.1 Watt
Notes on AMD Athlon 1.4 GHz
Actual bus frequency is 100 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 200 MHz.
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
