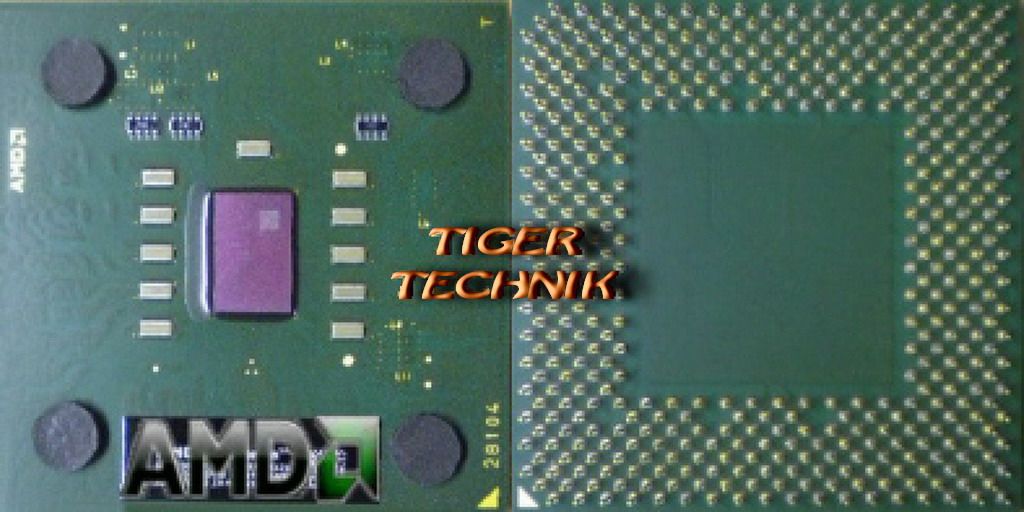

CPU Prozessor AMD Athlon MP 2000+ AMP2000DMS3C FSB266 Sockel A 462 grün* c97

Technische Daten

Type

CPU / Microprocessor

Market segment

Server

Family

AMD Athlon MP

Model number

2000+

CPU part number

AMP2000DMS3C is an OEM/tray microprocessor

Stepping codes

AGOGA   AGOIA

Frequency

2000+ (rated); 1667 MHz (real)

Bus speed

266 MHz

Clock multiplier

12.5

Package

453-pin organic PGA; 1.95" x 1.95" (4.95 cm x 4.95 cm)

AMD Package number

27111

Socket

Socket A (Socket 462)

Introduction date

13-Mar-02

Price at introduction

$415

Architecture / Microarchitecture

Microarchitecture

K7

Processor core

Palomino (Model 6)

Manufacturing process

0.18 micron

Data width

32 bit

The number of CPU cores

1

The number of threads

1

Floating Point Unit

Integrated

Level 1 cache size

64 KB instruction cache; 64 KB data cache

Level 2 cache size

on-die 256 KB

Multiprocessing

Up to 2 processors

Features

MMX instructions, Extensions to MMX, 3DNow! technology, Extensions to 3DNow!, SSE / Streaming SIMD Extensions

Low power features

Halt state, Stop Grant states, Sleep state, Probe state

Electrical / Thermal parameters

V core

1.75V

Minimum/Maximum operating temperature

0°C - 95°C

Typical/Maximum power dissipation

58.9 Watt / 66 Watt

Notes on AMD Athlon MP 2000+ (Palomino)

Actual bus frequency is 133 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 266 MHz.
