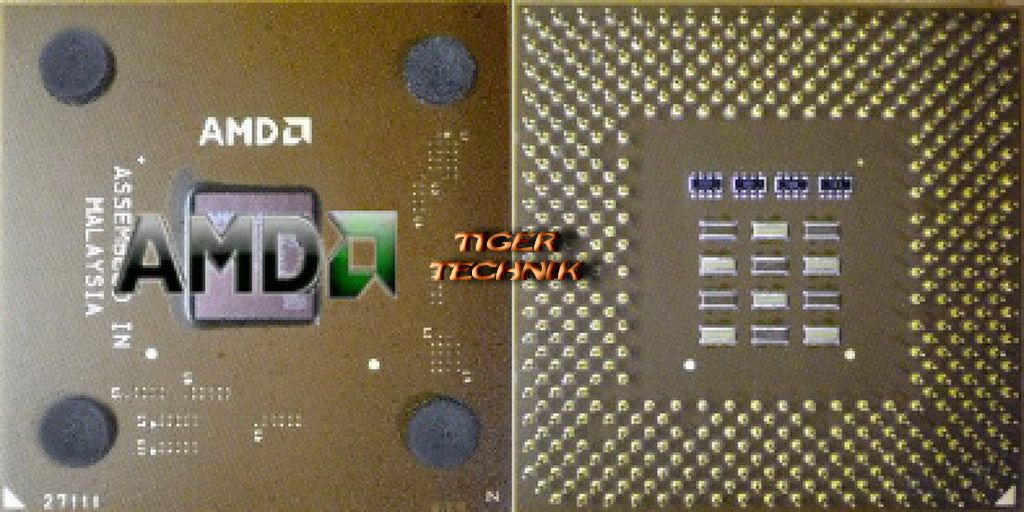

CPU Prozessor AMD Athlon XP 2000+ AXDA2000DUT3C FSB266 Sockel A 462 braun* c120

Technische Daten

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD Athlon XP

Model number

2000+

CPU part number

AXDA2000DUT3C is an OEM/tray microprocessor

Stepping codes

AIRCA   AIRGA   AIUCB   AIUGA   AIUHB   AIXHB   AIXIB   AIXJB   JIUHB   JIXHB   JIXIB   KIUHB   KIXHB   KIXIB   KIXJB   RIRGA   RIUGA   RIWGA

Frequency

2000+ (rated); 1667 MHz (real)

Bus speed

266 MHz

Clock multiplier

12.5

Package

453-pin organic PGA; 1.95" x 1.95" (4.95 cm x 4.95 cm)

AMD Package numbers

27291, 27648

Socket

Socket A (Socket 462)

Architecture / Microarchitecture

Microarchitecture

K7

Processor core

Thoroughbred (Model 8)

Manufacturing process

0.13 micron

Die

80.89mm2 (CPUID 680); 67.35mm2 (CPUID 680 / without L2 cache)
84.66mm2 (CPUID 681); 71.12mm2 (CPUID 681 / without L2 cache)
86.97mm2 (CPUID 682); 73.43mm2 (CPUID 682 / without L2 cache)

Data width

32 bit

The number of CPU cores

1

The number of threads

1

Floating Point Unit

Integrated

Level 1 cache size

64 KB code; 64 KB data

Level 2 cache size

Full-speed on-die 256 KB

Multiprocessing

Uniprocessor

Features

MMX instructions, Extensions to MMX, 3DNow! technology, Extensions to 3DNow!, SSE / Streaming SIMD Extensions

Low power features

Halt state, Stop Grant states, Sleep state, Probe state

Electrical / Thermal parameters

V core

1.6V

Minimum/Maximum operating temperature

0°C - 90°C

Typical/Maximum power dissipation

54.7 Watt / 60.3 Watt

Notes on AMD Athlon XP 2000+ (1.6V)

Actual bus frequency is 133 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 266 MHz.
