Produktbeschreibung

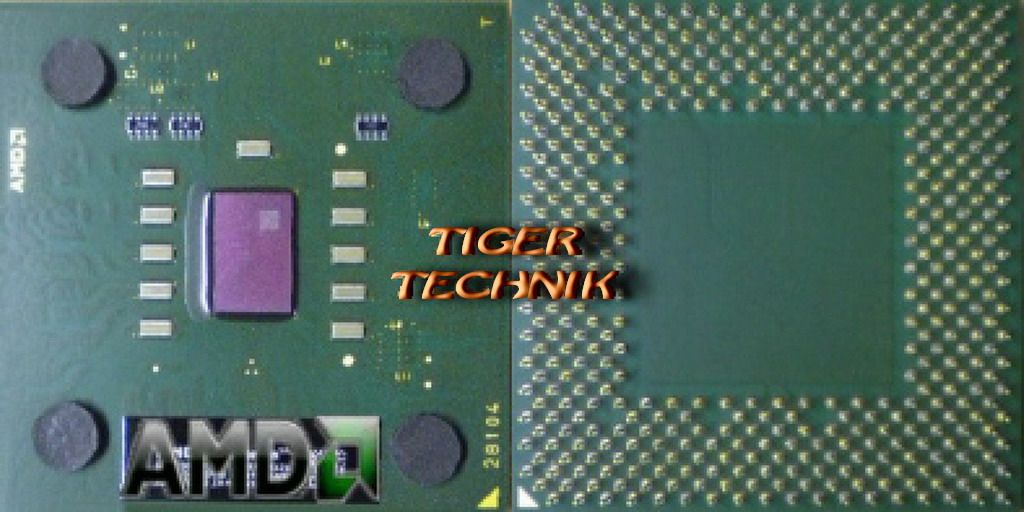

CPU Prozessor AMD Athlon XP 2000+ AXDA2000DUT3C FSB266 Sockel A/462 grün
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD Athlon XP |
Model number | 2000+ |
CPU part number | AXDA2000DUT3C is an OEM/tray microprocessor |
Stepping codes | AIRCA AIRGA AIUCB AIUGA AIUHB AIXHB AIXIB AIXJB JIUHB JIXHB JIXIB KIUHB KIXHB KIXIB KIXJB RIRGA RIUGA RIWGA |
Frequency | 2000+ (rated); 1667 MHz (real) |
Bus speed | 266 MHz |
Clock multiplier | 12.5 |
Package | 453-pin organic PGA; 1.95" x 1.95" (4.95 cm x 4.95 cm) |
AMD Package numbers | 27291, 27648 |
Socket | Socket A (Socket 462) |
Architecture / Microarchitecture | |
Microarchitecture | K7 |
Processor core | Thoroughbred (Model 8) |
CPUID | 680 |
Manufacturing process | 0.13 micron |
Die | 80.89mm2 (CPUID 680); 67.35mm2 (CPUID 680 / without L2 cache) |
Data width | 32 bit |
The number of CPU cores | 1 |
The number of threads | 1 |
Floating Point Unit | Integrated |
Level 1 cache size | 64 KB 2-way set associative instruction cache; 64 KB 2-way set associative data cache |
Level 2 cache size | Full-speed on-die 256 KB 16-way set associative cache |
Multiprocessing | Uniprocessor |
Extensions and Technologies | MMX instructions; Extensions to MMX; 3DNow! technology; Extensions to 3DNow!; SSE / Streaming SIMD Extensions |
Low power features | Halt state; Stop Grant states; Sleep state; Probe state |
Integrated peripherals / components | |
Integrated graphics | None |
Electrical / Thermal parameters | |
V core | 1.6V |
Minimum/Maximum operating temperature | 0°C - 90°C |
Typical/Maximum power dissipation | 54.7 Watt / 60.3 Watt |
Notes on AMD Athlon XP 2000+ (1.6V) | |
Actual bus frequency is 133 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 266 MHz. | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
