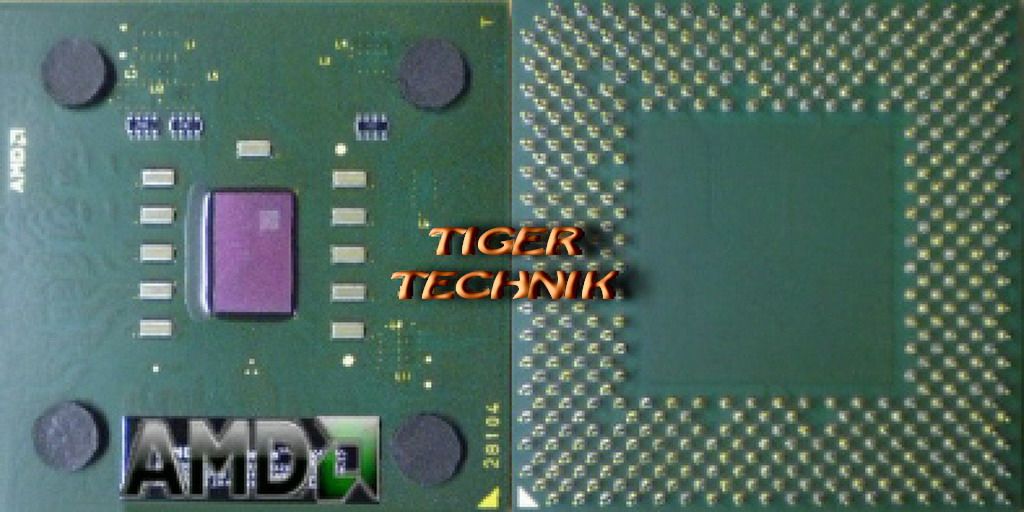

CPU Prozessor AMD Athlon XP 2100+ AXDA2100DUT3C FSB266 Sockel A 462 grün* c209

General information

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD Athlon XP

Model number  ?

2100+

CPU part number

AXDA2100DUT3C is an OEM/tray microprocessor

Stepping code

AIUHB

Frequency  ?

2100+ (rated)
1733 MHz (real)

Bus speed  ?

266 MHz

Clock multiplier  ?

13

Package

453-pin organic PGA
1.95" x 1.95" (4.95 cm x 4.95 cm)

AMD Package numbers

27291, 27648

Socket

Socket A (Socket 462)

Architecture / Microarchitecture

Microarchitecture

K7

Processor core  ?

Thoroughbred (Model 8)

Manufacturing process

0.13 micron

Die

80.89mm2 (CPUID 680)
67.35mm2 (CPUID 680 / without L2 cache)
84.66mm2 (CPUID 681)
71.12mm2 (CPUID 681 / without L2 cache)
86.97mm2 (CPUID 682)
73.43mm2 (CPUID 682 / without L2 cache)

Data width

32 bit

The number of CPU cores

1

The number of threads

1

Floating Point Unit

Integrated

Level 1 cache size  ?

64 KB code
64 KB data

Level 2 cache size  ?

Full-speed on-die 256 KB

Multiprocessing

Uniprocessor

Features

MMX instructions

Extensions to MMX

3DNow! technology

Extensions to 3DNow!

SSE / Streaming SIMD Extensions

Low power features

Halt state

Stop Grant states

Sleep state  ?

Probe state

Integrated peripherals / components

Integrated graphics

None

Electrical / Thermal parameters

V core  ?

1.6V

Minimum/Maximum operating temperature  ?

0°C - 90°C

Typical/Maximum power dissipation

56.4 Watt / 62.1 Watt

Notes on AMD Athlon XP 2100+

Actual bus frequency is 133 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 266 MHz.
