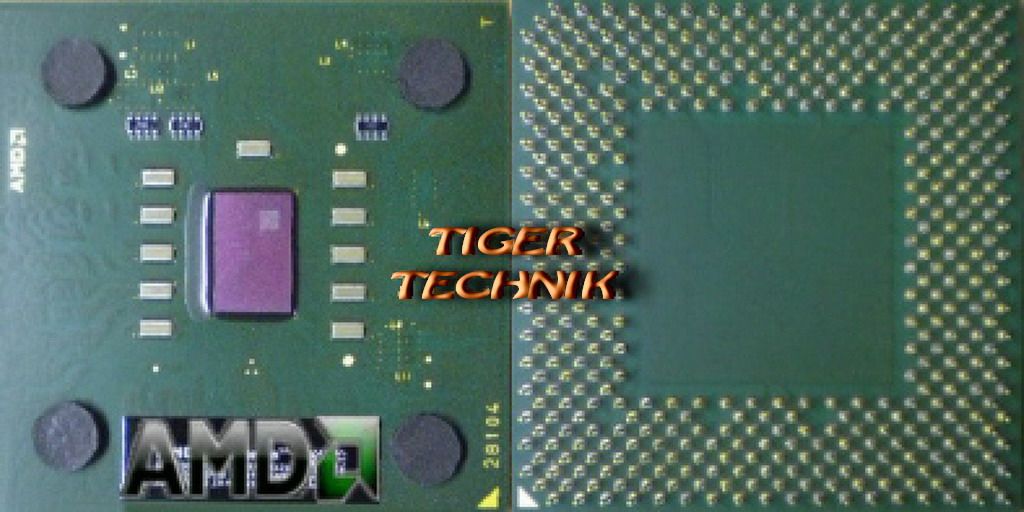

CPU Prozessor AMD Athlon XP 2400+ AXDA2400DKV3C FSB266 Sockel A 462 grün* c126

Technische Daten

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD Athlon XP

Model number

2400+

CPU part number

AXDA2400DKV3C is an OEM/tray microprocessor

Stepping codes

AIUAB   AIUCB   AIUGB   AIUHB   AIXHB   AIXIB   AIXJB   AQXDA   JIUCB   KIXIB   KIXJB

Frequency

2400+ (rated); 2000 MHz (real)

Bus speed

266 MHz

Clock multiplier

15

Package

453-pin organic PGA; 1.95" x 1.95" (4.95 cm x 4.95 cm)

AMD Package numbers

27291, 27493, 27648

Socket

Socket A (Socket 462)

Introduction date

21-Aug-02

Price at introduction

$193

Architecture / Microarchitecture

Microarchitecture

K7

Processor core

Thoroughbred (Model 8)

CPUID

681

Manufacturing process

0.13 micron copper process

Die

80.89mm2 (CPUID 680); 67.35mm2 (CPUID 680 / without L2 cache)
84.66mm2 (CPUID 681); 71.12mm2 (CPUID 681 / without L2 cache)
86.97mm2 (CPUID 682); 73.43mm2 (CPUID 682 / without L2 cache)

Data width

32 bit

The number of CPU cores

1

The number of threads

1

Floating Point Unit

Integrated

Level 1 cache size

64 KB 2-way set associative instruction cache; 64 KB 2-way set associative data cache

Level 2 cache size

Full-speed on-die 256 KB 16-way set associative cache

Multiprocessing

Uniprocessor

Features

MMX instructions, Extensions to MMX, 3DNow! technology, Extensions to 3DNow!, SSE / Streaming SIMD Extensions

Low power features

Halt state, Stop Grant states, Sleep state, Probe state

Electrical / Thermal parameters

V core

1.65V

Minimum/Maximum operating temperature

0°C - 85°C

Typical/Maximum power dissipation

62 Watt / 68.3 Watt

Notes on AMD Athlon XP 2400+ (1.65V)

Actual bus frequency is 133 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 266 MHz.
