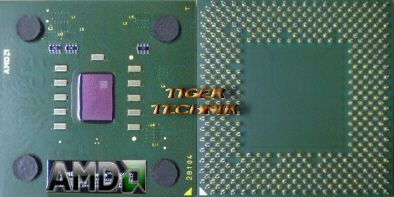

AMD Athlon XP 2400+ AXDC2400DKV3C

General information
Type	CPU / Microprocessor
Market segment	Desktop
Family	AMD Athlon XP
Model number ?	2400+
CPU part number	AXDC2400DKV3C is an OEM/tray microprocessor
Stepping code	AQZFA
Frequency ?	2400+ (rated) 2000 MHz (real)
Bus speed ?	266 MHz
Clock multiplier ?	15
Package	453-pin organic PGA 1.95" x 1.95" (4.95 cm x 4.95 cm)
AMD Package number	27493
Socket	Socket A (Socket 462)
Architecture / Microarchitecture
Microarchitecture	K7
Processor core ?	Thorton (Model 10)
Manufacturing process	0.13 micron copper process
Data width	32 bit
The number of CPU cores	1
The number of threads	1
Floating Point Unit	Integrated
Level 1 cache size ?	64 KB code 64 KB data
Level 2 cache size ?	Full-speed on-die 256 KB
Multiprocessing	Uniprocessor
Features	MMX instructions Extensions to MMX 3DNow! technology Extensions to 3DNow! SSE / Streaming SIMD Extensions
Low power features	Halt state Stop Grant states Sleep state ? Probe state
Integrated peripherals / components
Integrated graphics	None
Electrical / Thermal parameters
V core ?	1.65V
Minimum/Maximum operating temperature ?	0°C - 85°C
Typical/Maximum power dissipation	62 Watt / 68.3 Watt
Notes on AMD Athlon XP 2400+ (Thorton)
Actual bus frequency is 133 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 266 MHz.
