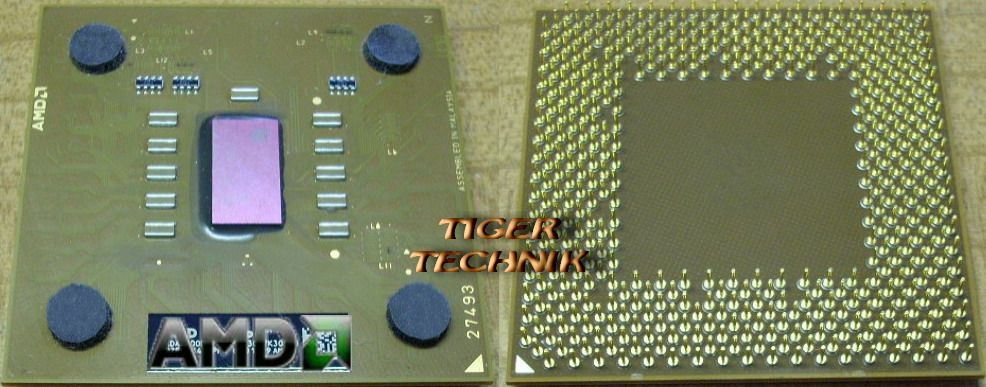

CPU Prozessor AMD Athlon XP 2600+ AXDA2600DKV3D FS

Produktbeschreibung

AMD Athlon XP 2600+ AXDA2600DKV3D

General information
Type	CPU / Microprocessor
Market segment	Desktop
Family	AMD Athlon XP
Model number ?	2600+
CPU part number	AXDA2600DKV3D is an OEM/tray microprocessor
Stepping codes	AIUCB AIUGB AIUHB AIUXB AIXHB AIXIB
Frequency ?	2600+ (rated) 2083 MHz (real)
Bus speed ?	333 MHz
Clock multiplier ?	12.5
Package	453-pin organic PGA 1.95" x 1.95" (4.95 cm x 4.95 cm)
AMD Package numbers	27291, 27648
Socket	Socket A (Socket 462)
Price at introduction	$297
Architecture / Microarchitecture
Microarchitecture	K7
Processor core ?	Thoroughbred (Model 8)
Manufacturing process	0.13 micron copper process
Die size	80.89mm² (CPUID 680) 67.35mm² (CPUID 680 / without L2 cache) 84.66mm² (CPUID 681) 71.12mm² (CPUID 681 / without L2 cache) 86.97mm² (CPUID 682) 73.43mm² (CPUID 682 / without L2 cache)
Data width	32 bit
The number of CPU cores	1
The number of threads	1
Floating Point Unit	Integrated
Level 1 cache size ?	64 KB code 64 KB data
Level 2 cache size ?	Full-speed on-die 256 KB
Multiprocessing	Uniprocessor
Features	MMX instructions Extensions to MMX 3DNow! technology Extensions to 3DNow! SSE / Streaming SIMD Extensions
Low power features	Halt state Stop Grant states Sleep state ? Probe state
Integrated peripherals / components
Integrated graphics	None
Electrical / Thermal parameters
V core ?	1.65V
Minimum/Maximum operating temperature ?	0°C - 85°C
Typical/Maximum power dissipation	62 Watt / 68.3 Watt
Notes on AMD Athlon XP 2600+ (333FSB, 1.65V, 256KB)
Actual bus frequency is 166 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 333 MHz.
