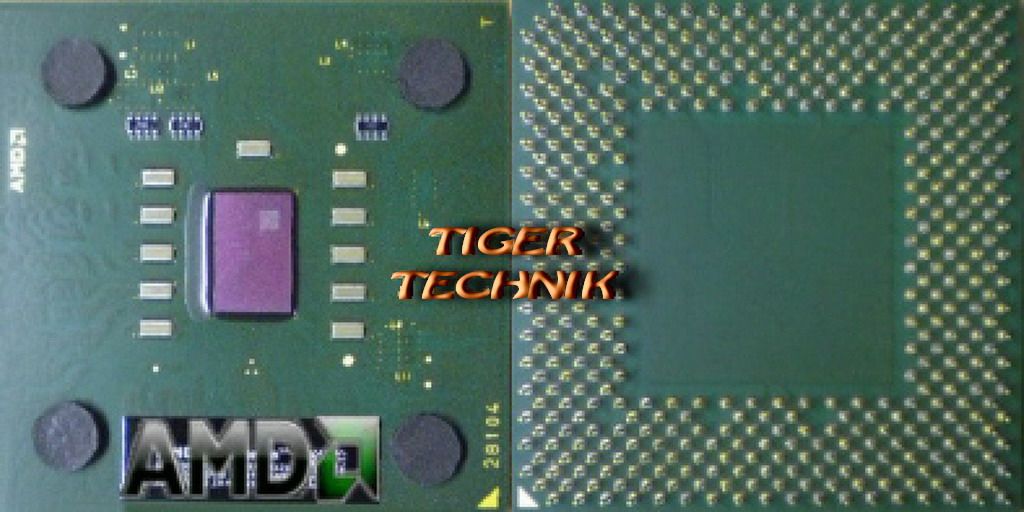

CPU Prozessor AMD Athlon XP 2800+ AXDA2800DKV4D FSB333 Sockel A 462 grün* c142

Technische Daten

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD Athlon XP

Model number

2800+

CPU part number

AXDA2800DKV4D is an OEM/tray microprocessor

Stepping codes

ADYHA   AQUCA   AQXCA   AQXDA   AQXEA   AQXFA   AQYHA   AQZEA   AQZFA   IQYHA   KQYHA

Frequency

2800+ (rated); 2083 MHz (real)

Bus speed

333 MHz

Clock multiplier

12.5

Package

453-pin organic PGA; 1.95" x 1.95" (4.95 cm x 4.95 cm)

AMD Package numbers

27488, 27493, 28103

Socket

Socket A (Socket 462)

Architecture / Microarchitecture

Microarchitecture

K7

Processor core

Barton (Model 10)

Core stepping

A2

CPUID

6A0

Manufacturing process

0.13 micron copper process

Data width

32 bit

The number of CPU cores

1

The number of threads

1

Floating Point Unit

Integrated

Level 1 cache size

64 KB 2-way set associative instruction cache; 64 KB 2-way set associative data cache

Level 2 cache size

Full-speed exclusive on-die 512 KB 16-way set associative cache

Multiprocessing

Uniprocessor

Features

MMX instructions, Extensions to MMX, 3DNow! technology, Extensions to 3DNow!, SSE / Streaming SIMD Extensions

Low power features

Halt state, Stop Grant states, Sleep state, Probe state

Electrical / Thermal parameters

V core

1.65V

Minimum/Maximum operating temperature

0°C - 85°C

Typical/Maximum power dissipation

53.7 Watt / 68.3 Watt

Notes on AMD Athlon XP 2800+ (333FSB, 512KB)

Actual bus frequency is 166 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 333 MHz.
