Produktbeschreibung

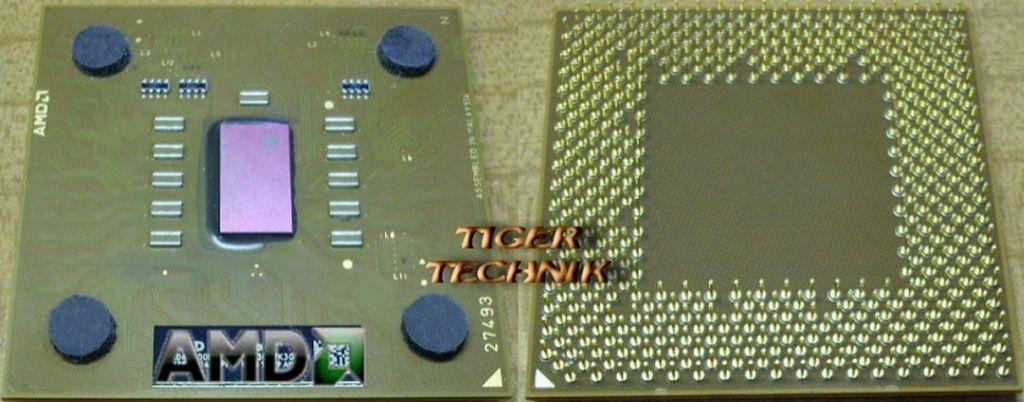

CPU Prozessor AMD Athlon XP-M 2800+ AXMA2800FKT4C FSB266 Sockel A 462 braun
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Mobile |
Family | AMD Athlon XP-M |
Model number | 2800+ |
CPU part number | AXMA2800FKT4C is an OEM/tray microprocessor |
Stepping codes | AQXDA AQYFA AQYHA AQZFA IQYHA |
Frequency | 2800+ (rated); 2133 MHz (real) |
Bus speed | 266 MHz |
Clock multiplier | 16 |
Package | 453-pin organic PGA; 1.95" x 1.95" (4.95 cm x 4.95 cm) |
AMD Package numbers | 27488, 27493 |
Socket | Socket A (Socket 462) |
Architecture / Microarchitecture | |
Microarchitecture | K7 |
Processor core | Barton |
Core stepping | A2 |
CPUID | 6A0 |
Manufacturing process | 0.13 micron |
Data width | 32 bit |
The number of CPU cores | 1 |
The number of threads | 1 |
Floating Point Unit | Integrated |
Level 1 cache size | 64 KB 2-way set associative instruction cache; 64 KB 2-way set associative data cache |
Level 2 cache size | 512 KB 16-way set associative cache |
Multiprocessing | Uniprocessor |
Extensions and Technologies | MMX instructions; Extensions to MMX; 3DNow! technology; Extensions to 3DNow!; SSE / Streaming SIMD Extensions |
Low power features | PowerNow! |
Integrated peripherals / components | |
Integrated graphics | None |
Electrical / Thermal parameters | |
V core | 1.65V |
Minimum/Maximum operating temperature | 0°C - 90°C |
Maximum power dissipation | 72 Watt |
Notes on AMD Athlon XP-M 2800+ (72W) | |
Actual bus frequency is 133 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 266 MHz Desktop replacement processor | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
