Produktbeschreibung
CPU Prozessor AMD Duron 1800MHz DHD1800DLV1C Sockel 462 A FSB266 grün
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD Duron |
CPU part number | DHD1800DLV1C is an OEM/tray microprocessor |
Stepping codes | MCXJB MIUHB MIXIB MIXJB |
Frequency | 1800 MHz |
Bus speed | 266 MHz |
Clock multiplier | 13.5 |
Package | 453-pin organic PGA; 1.95" x 1.95" (4.95 cm x 4.95 cm) |
AMD Package numbers | 27648, 28104 |
Socket | Socket A (Socket 462) |
Architecture / Microarchitecture | |
Microarchitecture | K7 |
Processor core | Applebred (Model 8) |
Manufacturing process | 0.13 micron |
Data width | 32 bit |
The number of CPU cores | 1 |
The number of threads | 1 |
Floating Point Unit | Integrated |
Level 1 cache size | 64 KB code; 64 KB data |
Level 2 cache size | on-die 64 KB exclusive cache |
Multiprocessing | Uniprocessor |
Features | MMX instructions, Extensions to MMX, 3DNow! technology, Extensions to 3DNow!, SSE / Streaming SIMD Extensions |
Low power features | Halt state, Stop Grant states, Sleep state, Probe state |
Electrical / Thermal parameters | |
V core | 1.5V |
Minimum/Maximum operating temperature | 0°C - 85°C |
Typical/Maximum power dissipation | 53 Watt / 57 Watt |
Notes on AMD Duron 1.8 GHz | |
Actual bus frequency is 133 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 266 MHz. | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *

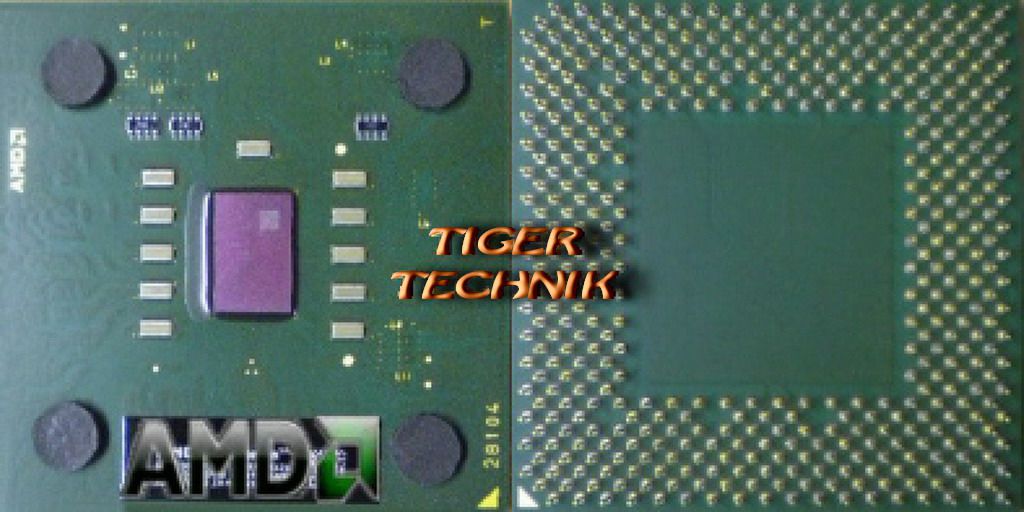

Abbildung ähnlich
