Produktbeschreibung

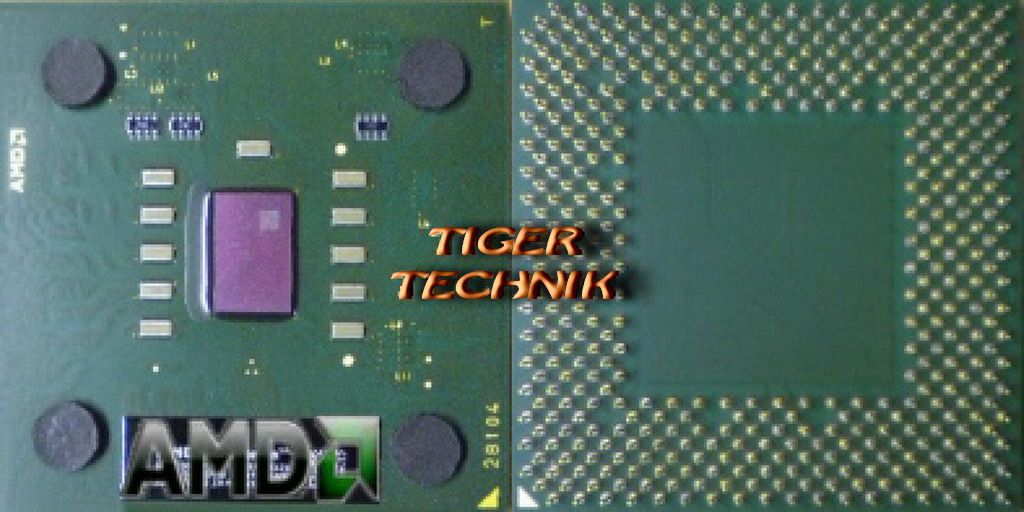

CPU Prozessor AMD Geode NX 1750 ANXS1750FXC3M Sockel 462 A FSB266
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Embedded |
Family | AMD Geode NX |
Model number | 1750 |
CPU part number | ANXS1750FXC3M is an OEM/tray microprocessor |
Stepping code | BJJF |
Frequency | 1750+ (rated); 1400 MHz (real) |
Bus speed | 266 MHz |
Package | 453-pin Organic PGA; 1.95" x 1.95" (4.95 cm x 4.95 cm) |
AMD Package number | 28104 |
Socket | Socket A (Socket 462) |
Introduction date | May 24, 2004 |
Price at introduction | $55 |
Architecture / Microarchitecture | |
Microarchitecture | K7 |
Processor core | Thoroughbred |
CPUID | 681 |
Manufacturing process | 0.13 micron |
Data width | 32 bit |
The number of CPU cores | 1 |
The number of threads | 1 |
Floating Point Unit | Integrated |
Level 1 cache size | 64 KB 2-way set associative instruction cache; 64 KB 2-way set associative data cache |
Level 2 cache size | 256 KB 16-way set associative cache |
Multiprocessing | Uniprocessor |
Extensions and Technologies | MMX instructions; Extensions to MMX; 3DNow! technology; Extensions to 3DNow!; SSE / Streaming SIMD Extensions |
Low power features | Halt state; Stop Grant state; PowerNow! |
Integrated peripherals / components | |
Integrated graphics | None |
Electrical / Thermal parameters | |
V core | 1.25V |
Maximum operating temperature | 95°C |
Thermal Design Power | 25 Watt |
Notes on AMD Geode NX 1750 (M) | |
Actual bus frequency is 133 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 266 Mhz Typical Thermal Design Power is 14 Watt | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
