Produktbeschreibung

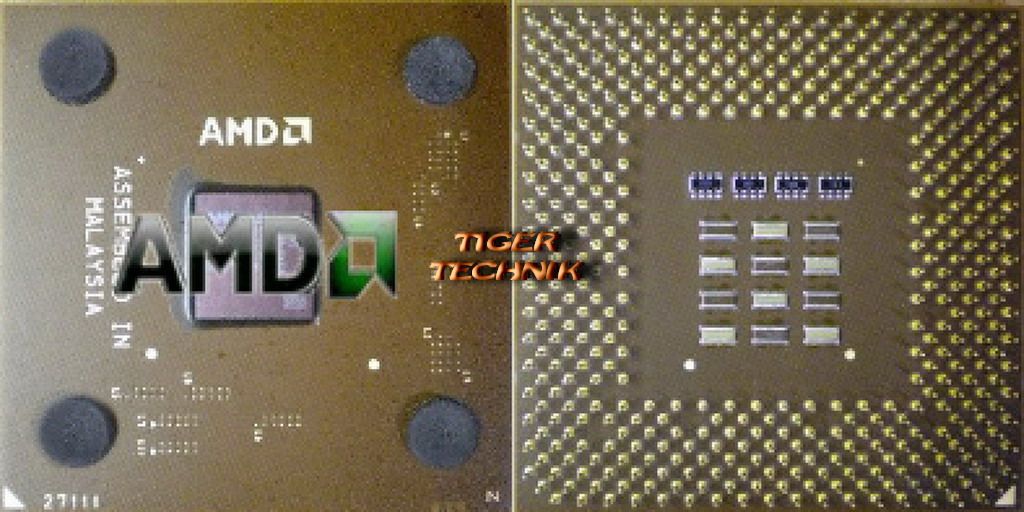

AMD Sempron 2500+ SDA2500DUT3D braun
General information | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD Sempron |
Model number ? | 2500+ |
CPU part numbers | SDA2500DUT3D is an OEM/tray microprocessor SDA2500BOX is a boxed microprocessor with fan and heatsink |
Stepping codes | BCXJB BIXJB |
Frequency ? | 2500+ (rated) |
Bus speed ? | 333 MHz |
Clock multiplier ? | 10.5 |
Package | 453-pin organic PGA |
AMD Package numbers | 27648, 28104 |
Socket | Socket A (Socket 462) |
Introduction date | July 28, 2004 |
Price at introduction | $74 |
Architecture / Microarchitecture | |
Microarchitecture | K7 |
Processor core ? | Thoroughbred (Model 8) |
Manufacturing process | 0.13 micron |
Data width | 32 bit |
The number of CPU cores | 1 |
The number of threads | 1 |
Floating Point Unit | Integrated |
Level 1 cache size ? | 64 KB code |
Level 2 cache size ? | Full speed on-die exclusive 256 KB |
Multiprocessing | Uniprocessor |
Features | MMX instructions Extensions to MMX 3DNow! technology Extensions to 3DNow! SSE / Streaming SIMD Extensions |
Low power features | Halt state Stop Grant states Sleep state ? Probe state |
Integrated peripherals / components | |
Integrated graphics | None |
Electrical / Thermal parameters | |
V core ? | 1.6V |
Minimum/Maximum operating temperature ? | 0°C - 90°C |
Minimum/Typical/Maximum power dissipation | 7.9 Watt (Stop Grant mode) / 55.9 Watt / 62 Watt |
Notes on AMD Sempron 2500+ | |
Actual bus frequency is 166 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 333 MHz | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
