Produktbeschreibung
CPU AMD Athlon64 X2 5000+ ADO5000IAA5DD
Dual Core 2x2,6GHz FSB1000 2x512K Sockel AM2
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD Athlon 64 X2 |
Model number | 5000+ |
CPU part numbers | ADO5000IAA5DD is an OEM/tray microprocessor; ADO5000DDBOX is a boxed microprocessor with fan and heatsink |
Stepping codes | AAAFG AAAIG CAA4G CAALG CAAPG NAA4G |
Frequency | 5000+ (rated); 2600 MHz (real) |
Bus speed | One 1000 MHz 16-bit HyperTransport link (2 GT/s) [1] |
Clock multiplier | 13 |
Package | 940-pin organic microPGA |
Socket | Socket AM2 |
Introduction date | Dec 5, 2006 |
Price at introduction | $301 |
Architecture / Microarchitecture | |
Microarchitecture | K8 |
Platform | Cartwheel |
Processor core | Brisbane |
Core stepping | G1 |
Manufacturing process | 0.065 micron silicon-on-insulator (SOI) technology; 221 million transistors |
Die | 118mm2 |
Data width | 64 bit |
The number of CPU cores | 2 |
The number of threads | 2 |
Floating Point Unit | Integrated |
Level 1 cache size | 2 x 64 KB 2-way set associative instruction caches; 2 x 64 KB 2-way set associative data caches |
Level 2 cache size | 2 x 512 KB exclusive 16-way set associative caches |
Physical memory | 1 TB |
Virtual memory | 256 TB |
Multiprocessing | Uniprocessor |
Features | MMX instructions, Extensions to MMX, 3DNow! technology, Extensions to 3DNow!, SSE / Streaming SIMD Extensions, SSE2 / Streaming SIMD Extensions 2, SSE3 / Streaming SIMD Extensions 3, AMD64 / AMD 64-bit technology, EVP / Enhanced Virus Protection, AMD-V / AMD Virtualization technology |
Low power features | Cool'n'Quiet technology, Halt state, Stop Grant state |
Memory controller | The number of controllers: 1 |
Other peripherals | HyperTransport 2.0 technology |
Electrical / Thermal parameters | |
V core | 1.3V / 1.325V / 1.35V |
Maximum operating temperature | 55°C - 72°C |
Thermal Design Power | 65 Watt |
Notes on AMD Athlon 64 X2 5000+ (rev. G1) | |
In the minimum performance state (P-state) the processor runs at 1000 MHz and 1.1 Volt core voltage. Thermal Design Power in the minimum P-state is 22.6 Watt [1] - Information is not confirmed | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *

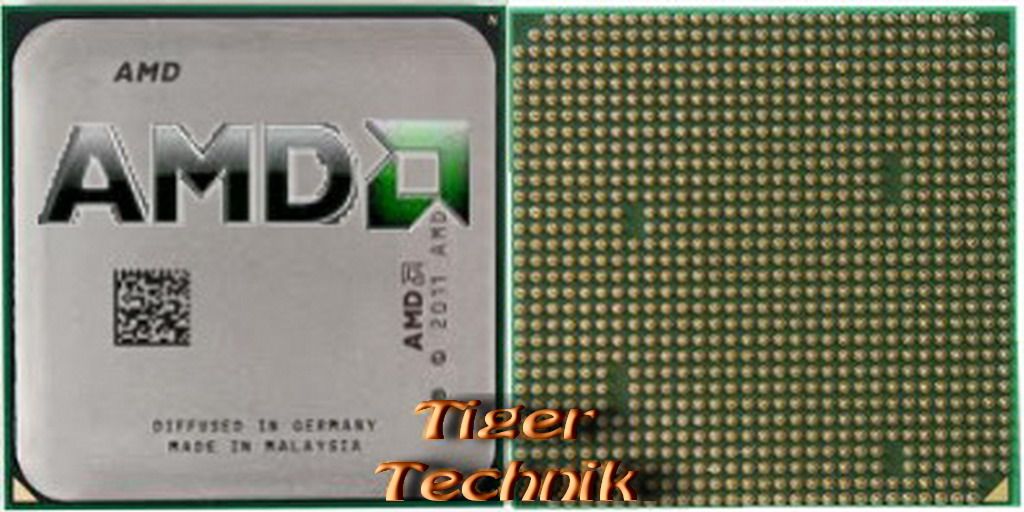

Abbildung ähnlich
