Produktbeschreibung

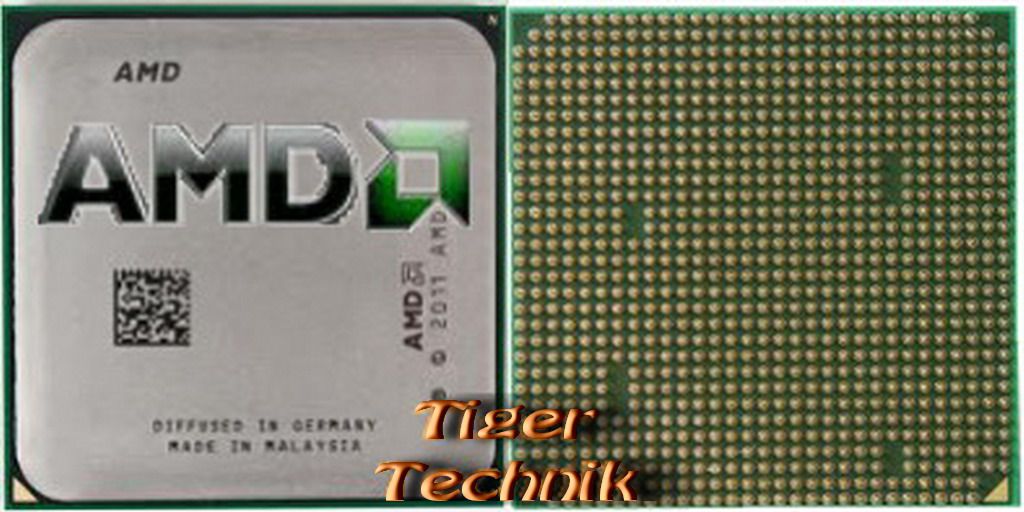

CPU Prozessor AMD Athlon 64 X2 5200+ ADA5200IAA6CS FSB1000 2x1M L2 Sockel AM2
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD Athlon 64 X2 |
Model number | 5200+ |
CPU part numbers | ADA5200IAA6CS is an OEM/tray microprocessor; ADA5200CSBOX is a boxed microprocessor with fan and heatsink |
Stepping codes | CCBIF CCBXF |
Frequency | 5200+ (rated); 2600 MHz (real) |
Bus speed | One 1000 MHz 16-bit HyperTransport link (2GT/s) |
Clock multiplier | 13 |
Package | 940-pin organic micro Pin Grid Array (micro-PGA) |
Socket | Socket AM2 |
Introduction date | 3rd quarter 2006 |
Architecture / Microarchitecture | |
Microarchitecture | K8 |
Processor core | Windsor |
Core stepping | JH-F2 |
CPUID | 40F32 |
Manufacturing process | 0.09 micron silicon-on-insulator (SOI) technology; 243 million transistors |
Data width | 64 bit |
The number of CPU cores | 2 |
The number of threads | 2 |
Floating Point Unit | Integrated |
Level 1 cache size | 2 x 64 KB 2-way set associative instruction caches; 2 x 64 KB 2-way set associative data caches |
Level 2 cache size | 2 x 1 MB 16-way set associative exclusive caches |
Physical memory | 1 TB |
Virtual memory | 256 TB |
Multiprocessing | Uniprocessor |
Extensions and Technologies | MMX instructions; Extensions to MMX; 3DNow! technology; Extensions to 3DNow!; SSE / Streaming SIMD Extensions; SSE2 / Streaming SIMD Extensions 2; SSE3 / Streaming SIMD Extensions 3; AMD64 / AMD 64-bit technology; AMD-V / AMD Virtualization technology |
Security Features | EVP / Enhanced Virus Protection |
Low power features | Cool'n'Quiet technology; Halt state; Stop Grant state |
Integrated peripherals / components | |
Integrated graphics | None |
Memory controller | The number of controllers: 1 |
Other peripherals | HyperTransport 2.0 technology (1 link) |
Electrical / Thermal parameters | |
V core | 1.3V / 1.35V |
Maximum operating temperature | 55°C - 70°C |
Thermal Design Power | 89 Watt |
Notes on AMD Athlon 64 X2 5200+ (89W, rev. F2) | |
In the minimum performance state (P-state) the processor runs at 1000 MHz and 1.1 Volt core voltage. Thermal Design Power in the minimum P-state is 31 Watt | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
Herstellerangabe / Produktsicherheit
Alle unsere hier angebotenen Produkte sind erstmalig vor dem 13.12.2024 in der EU in Verkehr gebracht worden und entsprechen den aktuellen Sicherheitsstandards.
Sie unterliegen nicht den neuen Anforderungen der GPSR.
