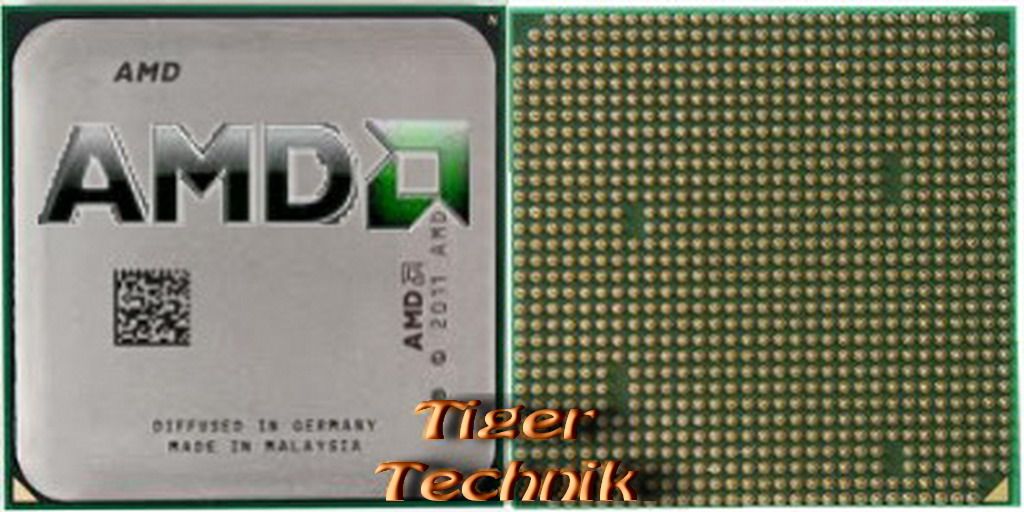

CPU Prozessor AMD Sempron 64 3600+ SDA3600IAA3CN FSB800 256KB Sockel AM2* c361

Technische Daten

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD Sempron

Model number

3600+

CPU part numbers

SDA3600IAA3CN is an OEM/tray microprocessor; SDA3600CNBOX is a boxed microprocessor with fan and heatsink

Stepping code

LFBCF

Frequency

3600+ (rated); 2000 MHz (real)

Bus speed

Dual-channel 333 MHz DDR2 SDRAM Memory controller
One 800 MHz 16-bit HyperTransport link (1.6GT/s)

Clock multiplier

10

Package

940-pin lidded microPGA

Socket

Socket AM2

Introduction date

May 23, 2006

Architecture / Microarchitecture

Microarchitecture

K8

Processor core

Manila

Core stepping

F2

Manufacturing process

0.09 micron

Data width

64 bit

The number of CPU cores

1

The number of threads

1

Floating Point Unit

Integrated

Level 1 cache size

64 KB 2-way set associative instruction cache; 64 KB 2-way set associative data cache

Level 2 cache size

256 KB 16-way set associative exclusive cache

Multiprocessing

Uniprocessor

Features

MMX instructions, 3DNow! technology, SSE / Streaming SIMD Extensions, SSE2 / Streaming SIMD Extensions 2, SSE3 / Streaming SIMD Extensions 3, AMD64 / AMD 64-bit technology, EVP / Enhanced Virus Protection

Memory controller

The number of controllers: 1
Memory channels: 2
Supported memory: DDR2-667
Maximum memory bandwidth (GB/s): 10.7

Other peripherals

HyperTransport technology

Electrical / Thermal parameters

V core

1.25V / 1.35V / 1.4V

Maximum operating temperature

55°C - 69°C

Thermal Design Power

59 Watt

Notes on AMD Sempron 3600+ (CN)

Processor supports x86-64 (64-bit) mode

In the minimum performance state (P-state) the processor runs at 1000 MHz and 1.1 Volt core voltage. Thermal Design Power in the minimum P-state is 28.9 Watt

One source claims the CPU supports DDR2-800 memory
