Produktbeschreibung

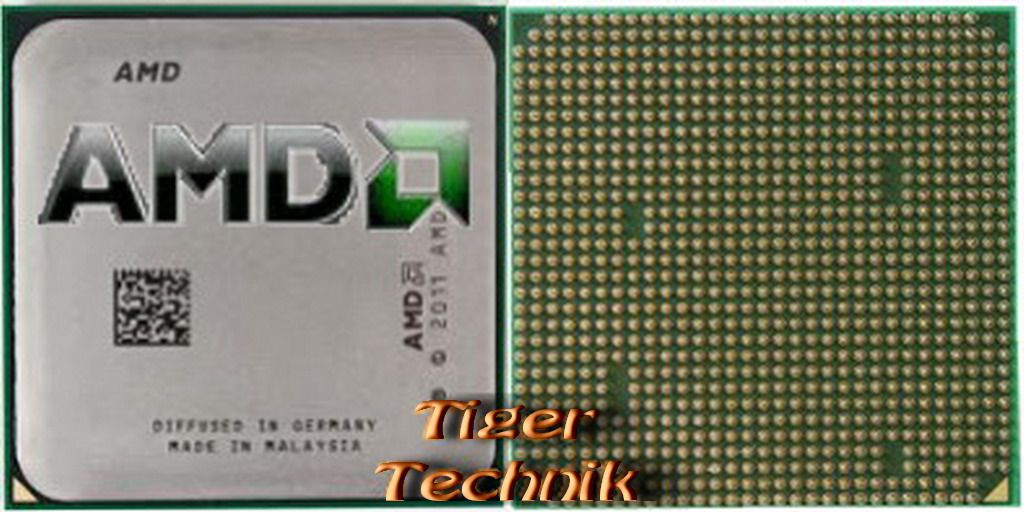

CPU Prozessor AMD Athlon II X3 425 ADX425WFK32GI 3x2.7GHz Sockel AM3 AM2+
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD Athlon II X3 |
Model number | 425 |
CPU part numbers | ADX425WFK32GI is an OEM/tray microprocessor
|
Stepping codes | AACYC AC AADAC AD CACYC AC CADAC AD |
Frequency | 2700 MHz |
Bus speed | 667 MHz Memory controller; One 2000 MHz 16-bit HyperTransport link |
Clock multiplier | 13.5 |
Package | 938-pin organic micro-PGA |
Sockets | Socket AM2+; Socket AM3 |
Weight | 1.3oz / 37.6g |
Introduction date | Oct 20, 2009 |
Price at introduction | $76 |
Architecture / Microarchitecture | |
Microarchitecture | K10 |
Processor core | Rana |
Core stepping | BL-C2 |
CPUID | 100F52 |
Manufacturing process | 0.045 micron silicon-on-insulator (SOI) technology |
Die | 169mm2 |
Data width | 64 bit |
The number of CPU cores | 3 |
The number of threads | 3 |
Floating Point Unit | Integrated |
Level 1 cache size | 3 x 64 KB 2-way set associative instruction caches; 3 x 64 KB 2-way set associative data caches |
Level 2 cache size | 3 x 512 KB 16-way set associative caches |
Multiprocessing | Uniprocessor |
Extensions and Technologies | MMX instructions; Extensions to MMX; 3DNow! technology; Extensions to 3DNow!; SSE / Streaming SIMD Extensions; SSE2 / Streaming SIMD Extensions 2; SSE3 / Streaming SIMD Extensions 3; SSE4a; AMD64 / AMD 64-bit technology; AMD-V / AMD Virtualization technology; EVP / Enhanced Virus Protection |
Low power features | Cool'n'Quiet 3.0; CoolCore Technology; Dual Dynamic Power Management; Core C1 and C1E states; Package S0, S1, S3, S4 and S5 states |
Integrated peripherals / components | |
Memory controller
| The number of controllers: 1 |
Other peripherals | HyperTransport 3 technology |
Electrical / Thermal parameters | |
V core | 1.125V - 1.425V |
Maximum operating temperature | 55°C - 73°C |
Thermal Design Power | 95 Watt |
Notes on AMD Athlon II X3 425 | |
The processor was discontinued at the end of 1st quarter 2010 | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
Herstellerangabe / Produktsicherheit
Alle unsere hier angebotenen Produkte sind erstmalig vor dem 13.12.2024 in der EU in Verkehr gebracht worden und entsprechen den aktuellen Sicherheitsstandards.
Sie unterliegen nicht den neuen Anforderungen der GPSR.
