Produktbeschreibung

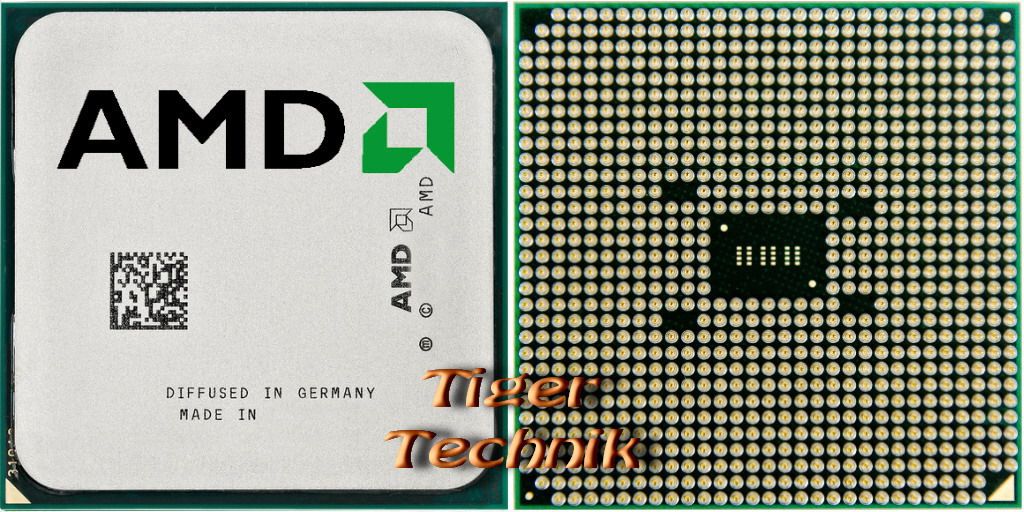

CPU AMD A6-3500 AD3500OJZ33GX
Triple Core 3x2.1GHz Sockel FM1 AMD Grafik
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD A6-Series |
Model number | A6-3500 |
CPU part numbers | AD3500OJZ33GX is an OEM/tray microprocessor; AD3500OJGXBOX is a boxed microprocessor with fan and heatsink |
Frequency | 2100 MHz |
Maximum turbo frequency | 2400 MHz |
Package | 905-pin organic lidded micro Pin Grid Array (UOF905) |
Socket | Socket FM1 |
Size | 1.57" x 1.57" / 4cm x 4cm |
Weight | 1.4oz / 39g (CPU); 10.1oz / 287.7g (box) |
Fan/heatsink | DKM-7D52A-A1-GP (nicht im Lieferumfang) |
Introduction date | August 8, 2011 |
Price at introduction | $89 |
Architecture / Microarchitecture | |
Microarchitecture | K10 |
Platform | Lynx |
Processor core | Llano |
Core stepping | LN-B0 |
CPUID | 300F10 |
Manufacturing process | 0.032 micron; 1178 million transistors |
Die | 227mm2 |
Data width | 64 bit |
The number of CPU cores | 3 |
The number of threads | 3 |
Floating Point Unit | Integrated |
Level 1 cache size | 3 x 64 KB 2-way set associative instruction caches; 3 x 64 KB 2-way set associative data caches |
Level 2 cache size | 3 x 1 MB 16-way set associative caches |
Level 3 cache size | None |
Cache latency | 3 (L1 cache); 19 (L2 cache) |
Multiprocessing | Uniprocessor |
Features | MMX instructions, Extensions to MMX, 3DNow! technology, Extensions to 3DNow!, SSE / Streaming SIMD Extensions, SSE2 / Streaming SIMD Extensions 2, SSE3 / Streaming SIMD Extensions 3, SSE4a, AMD64 / AMD 64-bit technology, AMD-V / AMD Virtualization technology, EVP / Enhanced Virus Protection, Turbo Core technology |
Low power features | PowerNow! |
Integrated peripherals / components | |
Integrated graphics | GPU Type: Radeon HD 6530D |
Memory controller | The number of controllers: 1 |
Other peripherals | PCI Express 2.0, Unified Video Decoder 3.0 |
Electrical / Thermal parameters | |
V core | 0.45V - 1.4125V |
Maximum operating temperature | 70.9°C |
Thermal Design Power | 65 Watt |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
