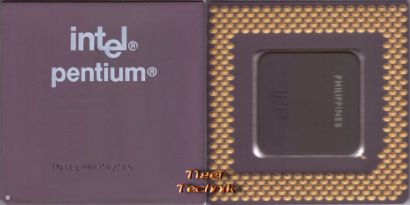

CPU Prozessor Intel Pentium SY016 166 MHz FSB 66 Sockel 7 Pentium I 1* c621

Technische Daten

Type

CPU / Microprocessor

Market segment

Desktop

Family

Intel Pentium

CPU part number

A80502166 is an OEM/tray microprocessor

Frequency

166 MHz

Bus speed

66 MHz

Clock multiplier

2.5

Package

296-pin Ceramic Staggered Pin Grid Array (SPGA); 1.95" x 1.95" (4.95 cm x 4.95 cm)

Sockets

Socket 7

Architecture / Microarchitecture

Microarchitecture

P5

Processor core

P54CS

Core stepping

cC0

CPUIDs

52C; 252C

Manufacturing process

0.35 micron; 3.3 million transistors

Data width

32 bit

Data bus width

64 bit

Floating Point Unit

Integrated

Level 1 cache size

8 KB 2-way set associative code cache; 8 KB 2-way set associative write-back data cache

Physical memory

4 GB

Multiprocessing Support

Up to 2 processors

Low power features

System Management Mode; Clock Control; SL power-management features

On-chip peripherals

Memory Management Unit; Local Advanced Programmable Interrupt Controller

Electrical / Thermal parameters

Min / Recommended / Max V core

3.135V / 3.3V / 3.6V

Minimum / Maximum operating temperature

0°C - 70°C

Minimum / Typical / Maximum power dissipation

2.1 Watt / 5.4 Watt / 15.3 Watt

Thermal Design Power

14.5 Watt

Notes on Intel Pentium 166 MHz

Minimum bus frequency is 33 MHz

The part is not tested to support 82498/82493 and 82497/82492 cache timings.

This processor was also offered as an embedded microprocessor.
