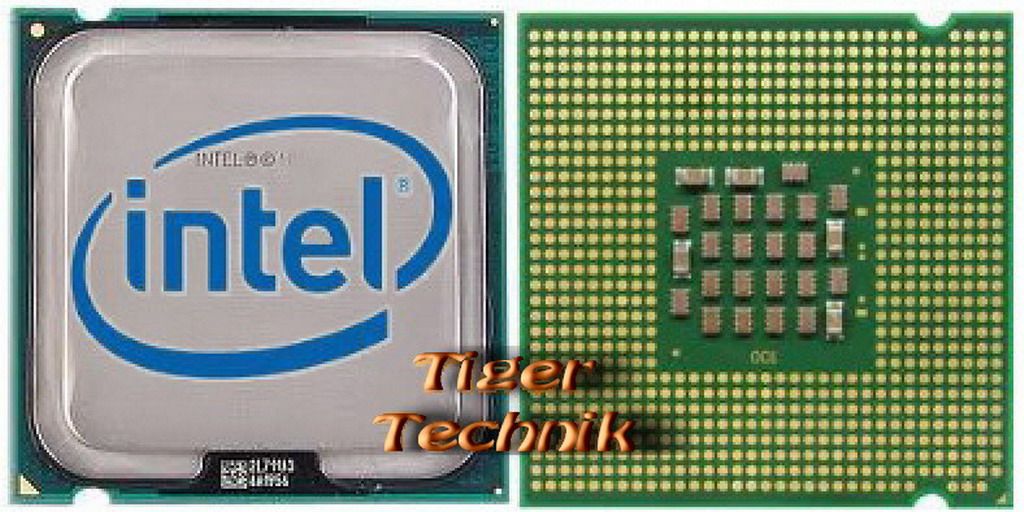

CPU Prozessor Intel Celeron 420 SL9XP 1.60Ghz 512KB 800Mhz Sockel 775 EM64T*c275

Technische Daten

Type

CPU / Microprocessor

Family

Intel Celeron

Processor number

420

Part number

HH80557RG025512, BX80557420, BXC80557420

Processor markings

1.60GHZ/512/800/06

Frequency (GHz)

1.6

Bus speed (MHz)

800

Clock multiplier

8

Package type

775-land FC-LGA6

Socket type

Socket 775 (LGA775)

Architecture / Microarchitecture / Other

CPUID

10661h

Core stepping

A1

Manufacturing technology (micron)

0.065

L2 cache size (KB)

512

Features

EM64T technology, Execute disable bit, Extended Halt state, Thermal Monitor 2

Core voltage (V)

1 - 1.3375

Case temperature (°C)

60.4

Thermal Design Power (Watt)

35

Notes on sSpec SL9XP

The processor supports the 775_VR_CONFIG_06 guidelines for processors with TDP up to 65 Watt, and Iccmax up to 75A.

The processor supports the 775_VR_CONFIG_05B (performance) guidelines for processors with TDP up to 130 Watt, Iccmax up to 125A, and VID up to 1.4V.

The part is discontinued. Last order date for OEM and boxed processors is July 2, 2009. Last shipment date for boxed processors is October 2, 2009. Last shipment date for OEM processors is September 2, 2010.
