Produktbeschreibung
CPU Prozessor Intel Pentium 4 630 SL8Q7 3GHz HT 800MHz FSB 2MB Sockel 775
Technische Daten | |
Type | CPU / Microprocessor |
Family | Intel Pentium 4 |
Processor number | 630 |
Part number | HH80547PG0802MM; BX80547PG3000F; BX80547PG3000FT; BX80547630T2 |
Frequency (GHz) | 3 |
Bus speed (MHz) | 800 |
Clock multiplier | 15 |
Package type | 775-land FC-LGA4 |
Socket type | Socket 775 (LGA775) |
Architecture / Microarchitecture / Other | |
CPUID | 0F4Ah |
Core stepping | R0 |
Processor core | Prescott |
Manufacturing technology (micron) | 0.09 |
L2 cache size (MB) | 2 |
Features | EM64T technology; Enhanced SpeedStep technology; Execute disable bit; Hyper-Threading technology |
Core voltage (V) | 1.287 - 1.4 |
Case temperature (°C) | 67.7 |
Notes on sSpec SL8Q7 | |
Microprocessors with this S-Spec have multiple VIDs. This part will only operate at the specified core to bus frequency ratio and lower. This S-spec supports the 775_VR_CONFIG_04A (mainstream) guidelines for processors with Iccmax up to 78A, and VID up to 1.4V. This part has Enhanced Halt State enabled. | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *

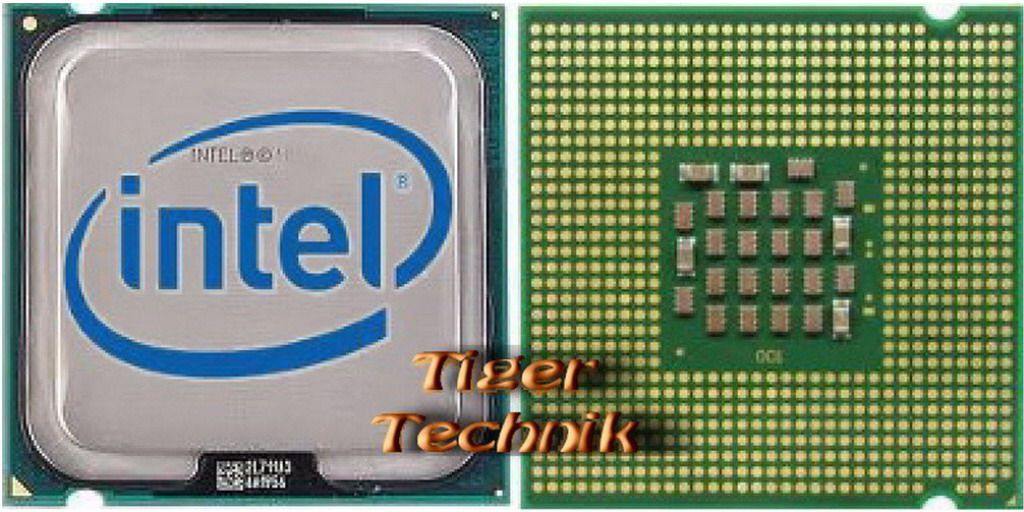

Abbildung ähnlich
Herstellerangabe / Produktsicherheit
Alle unsere hier angebotenen Produkte sind erstmalig vor dem 13.12.2024 in der EU in Verkehr gebracht worden und entsprechen den aktuellen Sicherheitsstandards.
Sie unterliegen nicht den neuen Anforderungen der GPSR.
