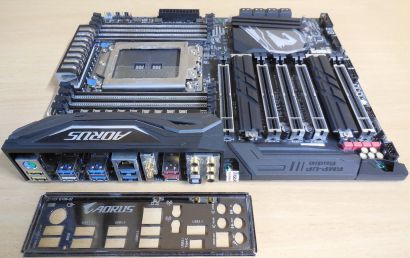

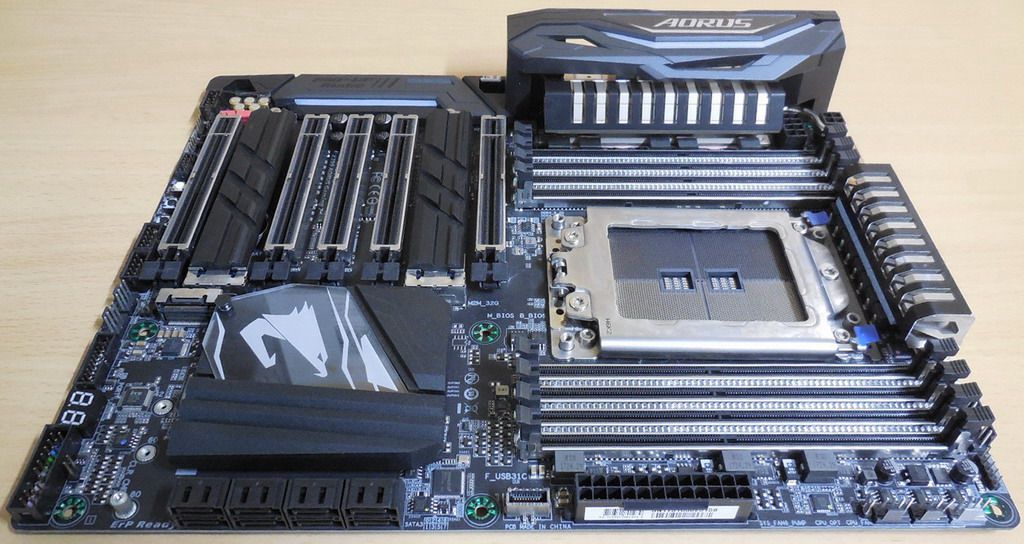

Gigabyte X399 AORUS Gaming 7 Rev 1.0 Mainboard + Blende AMD Sockel TR4 Threadripper
Technische Daten
CPU
Socket TR4 AMD Ryzen™ Threadripper™ processor
(Please refer to "CPU Support List" for more information.)
Chipset
AMD® X399
Memory
8 x DDR4 DIMM sockets supporting up to 128 GB of system memory
Quad channel memory architecture
Support for DDR4 3600+*(O.C.) / 3466(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933(O.C.) / 2800(O.C) / 2667 / 2400 / 2133 MHz memory modules
*Recommend to use a 1st Gen. Ryzen™ Threadripper™ processor to achieve 3600MHz (O.C.) speed.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer to "Memory Support List" for more information.)
Audio
Realtek® ALC1220 High Definition Audio codec
2/4/5.1/7.1-channel
Support for Sound BlasterX 720°, S/PDIF Out
LAN
Rivet Networks Killer™ E2500 LAN chip (10/100/1000 Mbit)
Wireless Communication module
Intel® Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
Support for 11ac wireless standard and up to 867 Mbps data rate
* Actual data rate may vary depending on environment and equipment.
Slots
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
(The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCIEX4 slot conforms to PCI Express 2.0 standard.)
Storage
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G)(M2Q_32G)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G)
8 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Multi-Graphics Technology
Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies
USB
by CPU 8 x USB 3.1 Gen 1 ports on the back panel
Chipset+ASMedia® USB 3.1 Gen 2 Controller 1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header
Chipset 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support; 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel; 2 x USB 3.1 Gen 1 ports available through the internal USB header; 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x 4-pin CPU fan header
1 x Water cooling CPU fan header
4 x 4-pin System fan headers
2 x System fan / Water cooling pump headers
1 x Digital LED strip header
1 x Digital LED strip power select jumper
2 x RGB (RGBW) LED strip extension cable headers
3 x M.2 Socket 3 connectors
8 x SATA 6Gb/s connectors
1 x Front panel header
1 x Front panel audio header
1 x S/PDIF Out header
1 x USB Type-C™ header with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x Power button
1 x Reset button
1 x Clear CMOS button
2 x temperature sensor headers
1 x Clear CMOS jumper
Rear I/O Panel
1 x PS/2 keyboard/mouse port
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red)
8 x USB 3.1 Gen 1 ports
1 x RJ-45 port
2 x MMCX antenna connectors (2T2R)
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O
iTE® I/O Controller Chip
H/W Überwachung
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
Support for Q-Flash Plus (The USB flash drive used must be a USB 2.0 flash drive.)
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Einzigartige Funktionen
Support for APP Center (Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications); 3D OSD; @BIOS; AutoGreen; BIOS Setup; Color Temperature; Cloud Station; EasyTune; Fast Boot; Game Boost; ON/OFF Charge; RGB Fusion; Smart Backup; Smart Keyboard; Smart TimeLock; Smart HUD; System Information Viewer; USB Blocker; USB DAC-UP 2; V-Tuner; Q-Flash; Xpress Install
Betriebssystem
Support for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
