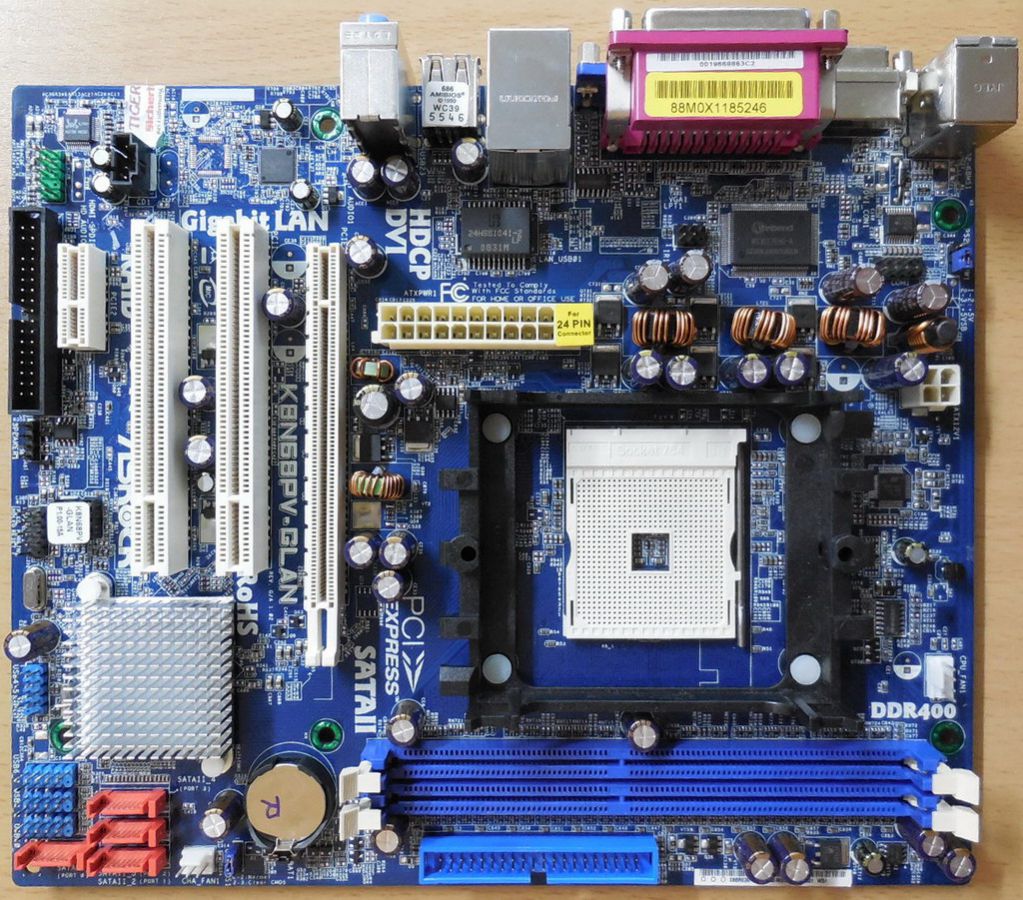

ASRock K8N68PV-GLAN Rev1.02 Mainboard NEU OVP Sockel 754 PCIe DDR VGA Sound
Technische Daten
CPU
Socket 754 for AMD Athlon™ 64 and Sempron Processors
Supports AMD's Cool 'n' Quiet Technology; Untied Overclocking Technology; Hyper-Transport Technology
Chipset capable to FSB 1000MHz (2.0 GT/s)
Chipset
NVIDIA® GeForce 7050 / nForce 630A MCP
Memory
2 x DDR DIMM slots
Supports DDR400/333/266 non-ECC, un-buffered memory
Max. capacity of system memory: 2GB
BIOS
4Mb AMI BIOS
AMI Legal BIOS
Supports "Plug and Play"; Jumperfree
ACPI 1.1 Compliance Wake Up Events
SMBIOS 2.3.1 Support
Graphics
Integrated NVIDIA® GeForce7 Series (NV44)
DX9.0 VGA, Pixel Shader 3.0
Max. shared memory 256MB
Supports DVI with max. resolution up to 1920x1200 @ 75Hz; Supports D-Sub with max. resolution up to 1920x1440 @ 60Hz
Two graphics output options: Support DVI-D and D-Sub ports by independent display controllers
Supports HDCP function with DVI-D port
NVIDIA® PureVideo™ Ready
Audio
5.1 CH High Definition Audio (Realtek ALC662 Audio Codec)
Chipset embedded HDMI Audio
LAN
Gigabit LAN 10/100/1000 Mb/s
Giga PHY Realtek RTL8211B
Supports Wake-On-LAN; Supports PXE
Slots
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots
Connector
4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD), NCQ, AHCI and Hot Plug functions
*This mainboard does not support RAID with HDDs of 3TB and above.
1 x ATA133 IDE connector (supports 2 x IDE devices)
1 x Floppy connector
1 x DeskExpress Hot Plug Detection header
1 x COM Port header
CPU/Chassis FAN connector
24 pin ATX power connector
4 pin 12V power connector
CD in header
Front panel audio connector
4 x USB 2.0 headers (support 8 USB 2.0 ports)

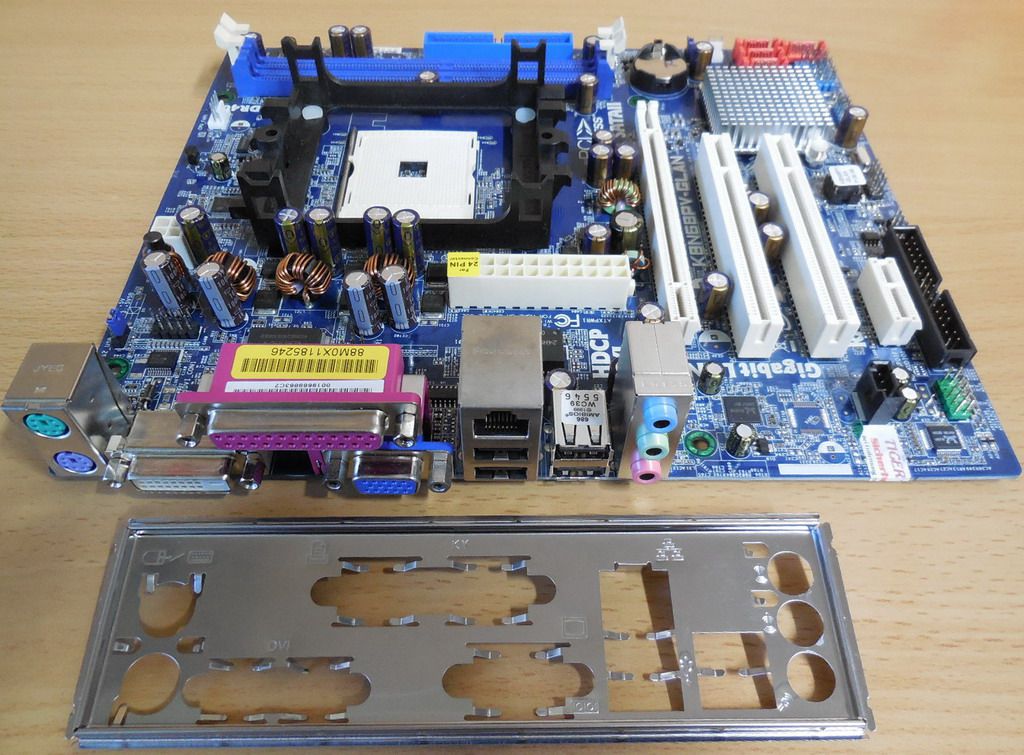

Rear Panel I/O
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x VGA/D-Sub Port
1 x VGA/DVI-D Port
1 x Parallel Port (ECP/EPP support)
4 x Ready-to-Use USB 2.0 Ports
1 x RJ-45 Port
HD Audio Jack: Line in / Front Speaker / Microphone
Unique Feature
Hybrid Booster: CPU Frequency Stepless Control; ASRock U-COP; Boot Failure Guard (B.F.G.)
Support CD
Drivers, Utilities, AntiVirus Software (Trial Version)

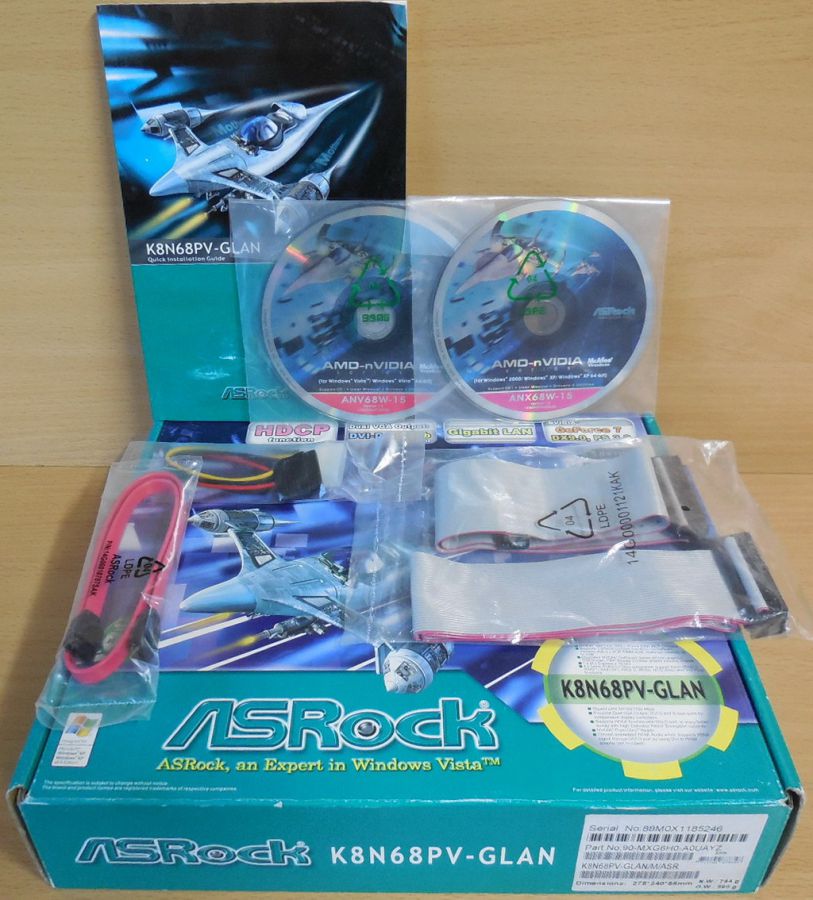

Accessories
Quick Installation Guide, Support CD, I/O Shield, Floppy/ATA 133 Cables, 1 x SATA Data Cable, 1 x SATA 1 to 1 Power Cable
Hardware Monitor
CPU Temperature Sensing
Chassis Temperature Sensing
CPU Fan Tachometer
Chassis Fan Tachometer
CPU Quiet Fan
Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm
OS
Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications
FCC, CE
Lieferumfang
Mainboard mit Zubehör laut Handbuch * NEU & OVP *
Abbildung ähnlich
